JBL Control HST 100W 2-Way 5.25" Passive Wide-Coverage Speaker - Black

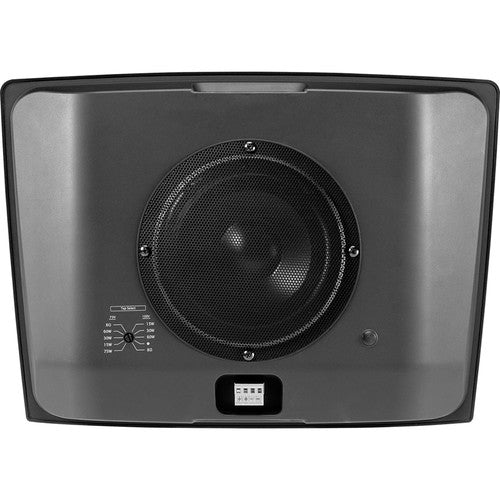

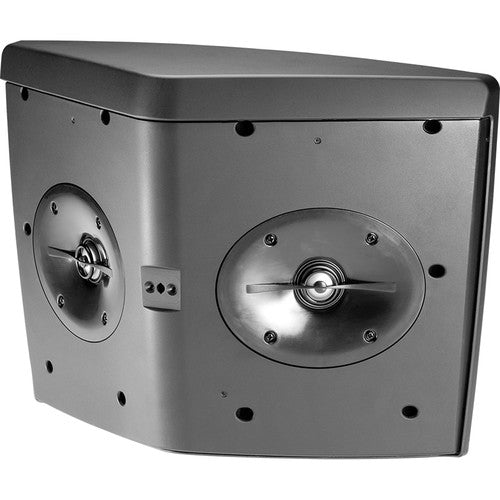

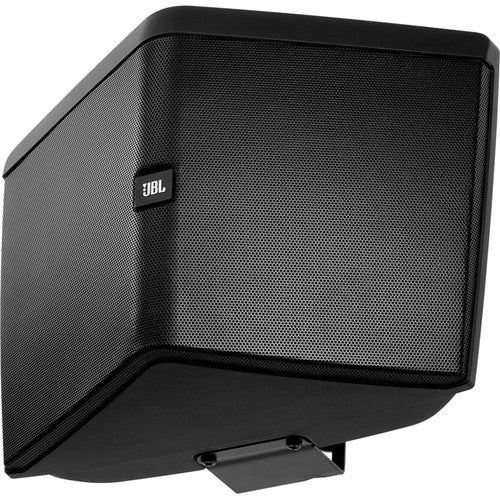

The white JBL Control HST is a single two-way 100W passive wall mount speaker offering extremely wide coverage and a broad frequency response for music reproduction and paging applications in a variety of indoor and outdoor environments such as stores, restaurants, educational facilities, hotels, and lobbies. The ABS enclosure features a wall-facing 5.25" woofer and dual horizontally splayed 0.75" fluid-cooled tweeters, enabling the Control HST to deliver a 160 x 150° pattern control while producing a 50 Hz to 20 kHz frequency range (-10 dB) devoid of the primary reflection that normally plagues wall-mounted speakers, making it ideal for reducing the number of speakers in a setup without sacrificing coverage area or fidelity. An integrated 60W multi-tap transformer allows the Control HST to be used in 70/100V, or 8-ohm system configurations at selectable wattage settings. Boasting IP54 and Mil-Std-810 ratings for resistance to water, humidity, and more, the Control HST is a capable speaker for a range of locations. It includes a color-matched U-bracket for simplified wall mount installation.

FEATURES

• 5.25" Woofer and Dual 0.75" Tweeters
• 100W Long-Term Power Handling
• Wide 160 x 150° Pattern Control
• HST Eliminates Primary Wall Reflection
• Weather-Resistant IP54 Rating
• Integrated 60W Multi-Tap Transformer
• Supports 70V, 100V, or 8-Ohm Operation
• Passive High-Slope Crossover Network

SPECIFICATIONS

• Frequency Range (-10dB) : 50 Hz – 20 kHz
• Frequency Response (±3 dB) : 68 Hz – 18 kHz
• Coverage Angle : 180° H x 160° V (1 kHz – 2 kHz, nominal) 160° H x 150° V (ave, 1 kHz – 16 kHz)
• Directivity Factor (Q) : 5.4 (1 k – 16 kHz)
• Directivity Index (DI) : 7.2 dB (1 k – 16 kHz)
• System Power Rating (IEC) : 100 W (400 W peak), 2 hrs. 75 W (300 W peak), 100 hrs.
• Sensitivity : 88 dB (Ave. 80 Hz – 20 kHz)
• Maximum SPL (1m) : Direct 8Ω: 108 dB (peaks of 114 dB) 60 W Tap: 97 dB @ 60W
• Crossover Network : 1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF
• Impedance : 8 ohms

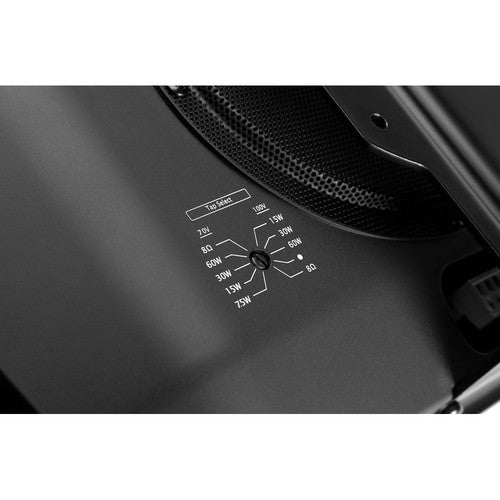

• Transformer Taps : 70V: 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 15W
• Drivers : LF: CMMD™ ceramic metal matrix diaphragm cone, 25 mm (1 in) voice coil. | HF: Two splayed tweeters with CMMD-treated aluminum diaphragms, polyurethane surround, polyimide bobbin, neodymium magnet, and fluid-cooling.
• Enclosure : Fiberglass-reinforced ABS
• Attachment : Four M6 points for included U-bracket. Additional M6 insert point provided for adding secondary safety attachment cable. U-bracket must be utilized. Must be mounted on wall surface. Do not mount on pole.
• Grille : Aluminum grille, painted to match cabinet color.
• Input Connectors : Removable locking euro-block 4-pin connector with screw-down terminals for bare wire. Two pins for input and two pins for parallel loop-thru. Max. wire 12 AWG (2.5 mm2).
• Outdoor Capability : IP54 per IEC529. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray.
• Dimensions (H x W x D) : 362 x 256 x 184 mm (14.25 x 10.1 x 7.2 in), cabinet 208 mm (8.2 in) depth with included bracket.
• Colors : Available in black (RAL9004) and white (-WH, RAL9016)
• Net Weight (each) : 3.6 kgs (8.0 lb), 4.3 kgs (9.5 lb) with U-bracket
