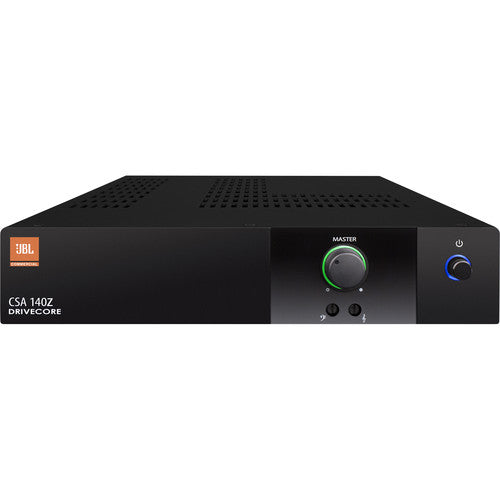

JBL CSA140Z 40W 70/100V Power Amplifier (CSA-140Z / CSA 140Z)

The JBL CSA 140Z packs a 40-watt, 1-channel power amplifier into a convenient 1U, half-rack enclosure. A handy front-panel knob makes volume adjustment a breeze, while an illuminated ring makes it easy to see the control in the dark. You also get support for JBL’s CSR-V in-wall volume control (sold separately). Add to that JBL’s super-efficient DriveCore technology, and you’ve got a power amplifier that’s tailor-made for just about every commercial and industrial use you can dream up.

FEATURES

• 40W, 1-channel powered mixer packed into a convenient 1U, half-rack enclosure
• Great for commercial and industrial use
• Clean, streamlined front panel is a breeze to use
• Illuminated ring around the volume control makes it easy to see in the dark
• Compatible with JBL’s CSR-V in-wall volume control (sold separately)
• Works with 70- and 100-volt distributed audio systems without a separate transformer
• Universal power supply accommodates AC voltages from 100 to 240VAC, 50/60Hz
• Manufactured under HARMAN’s GreenEdge environmental initiative

SPECIFICATIONS

• Number of Channels: 1
• Watts/Side @ 8 ohms: 40W

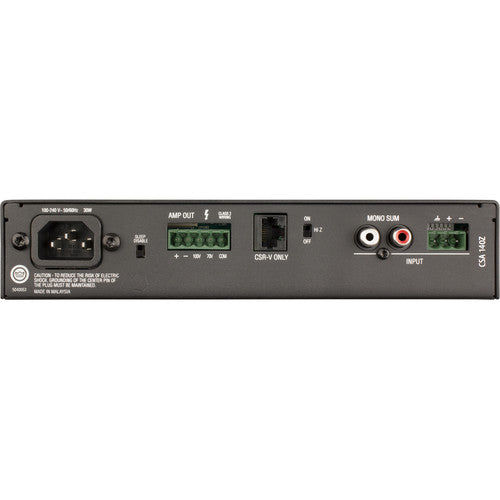

• Inputs: Dual RCA Stereo, 1 x 3-pin Euroblock
• Outputs: 1 x 5-pin Euroblock (70V/100V)
• Data I/O: 1 x RJ45
• Filters: Yes, 70Hz High Pass
• Frequency Response: 20Hz-20kHz
• THD: ≤0.5% 1kHz
• Rack Spaces: 1U, Half-rack
• Height: 1.75"
• Depth: 8.6"
• Width: 11.9"
• Weight: 6.3 lbs.
