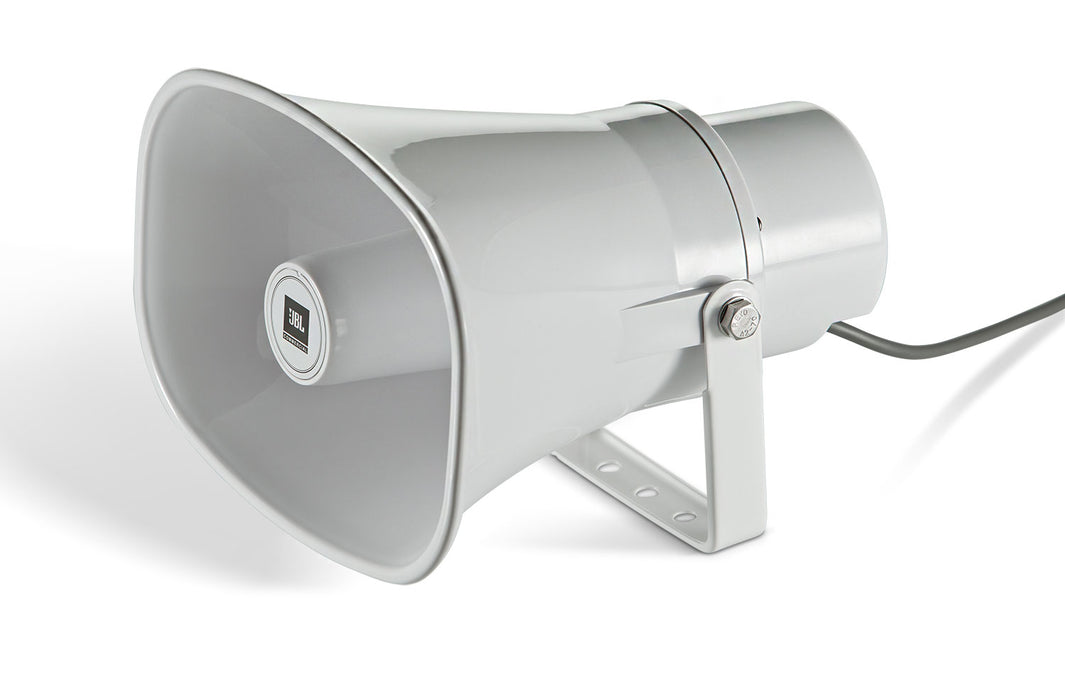

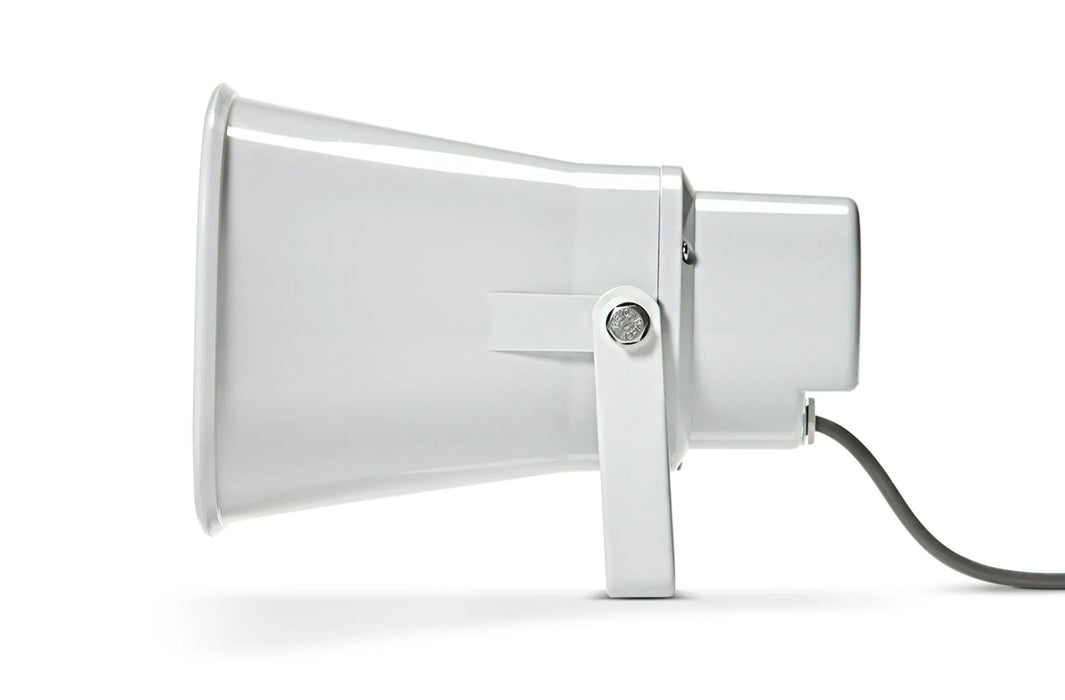

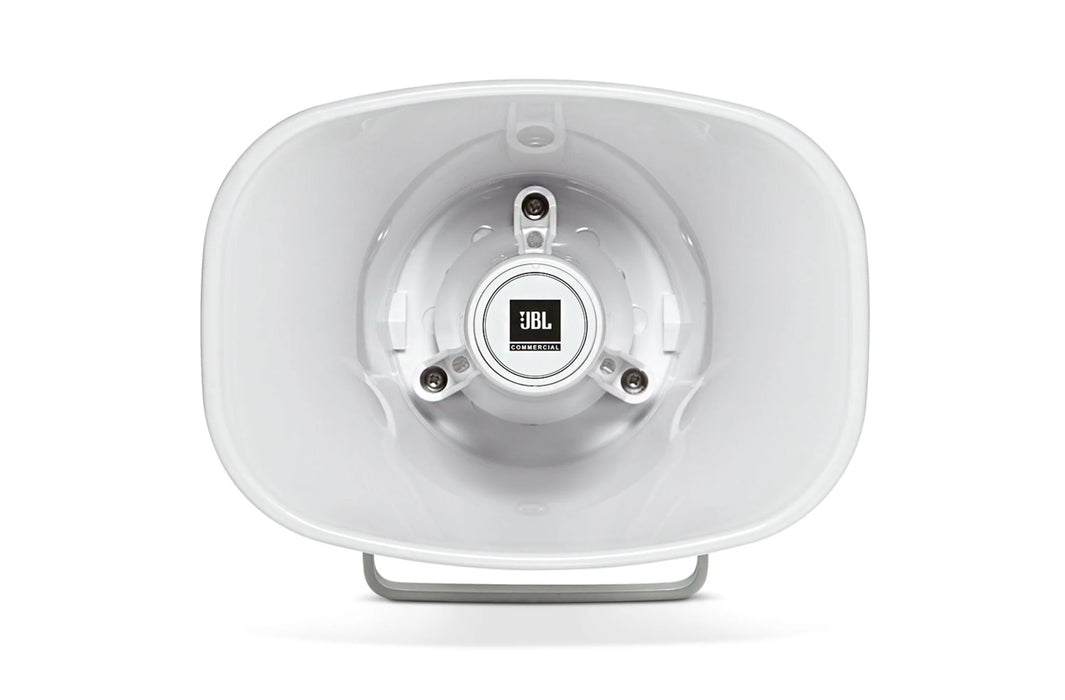

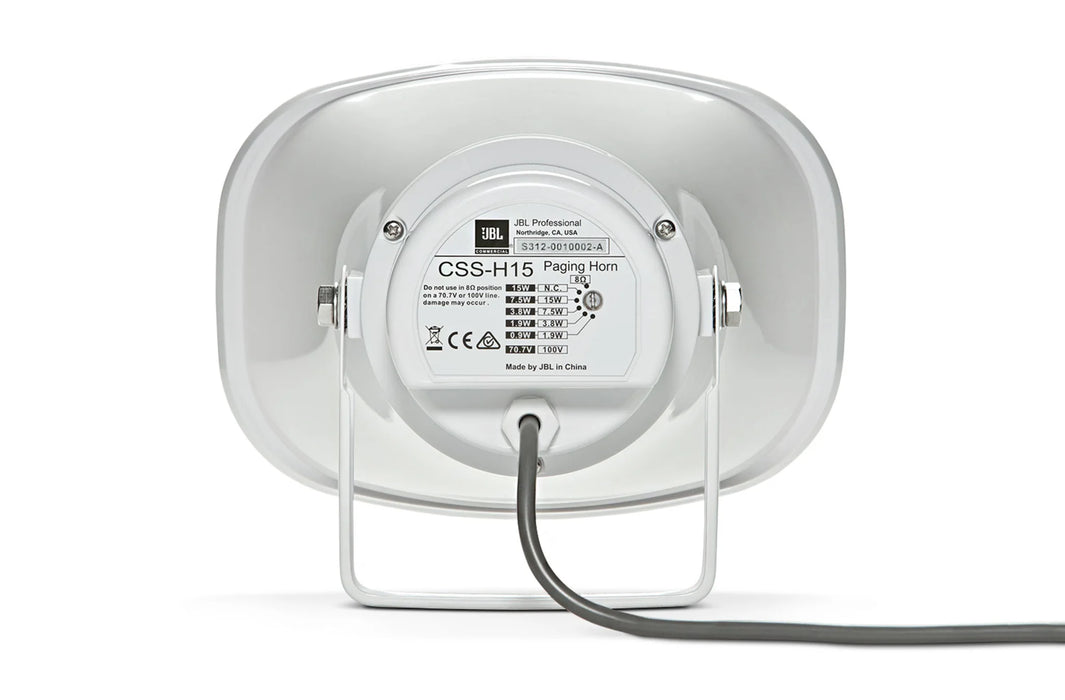

JBL CSS-H15 15W Commercial Solutions Series Paging Horn (CSSH15)

The Commercial Solutions Series CSS-H15 Paging Horn provides excellent voice range clarity for public address systems, announcement/paging, intercom, security, alarm and industrial applications. Designed for demanding environmental conditions, the CSS-H15 is highly weather resistant (IP-65 rated) so it can be used in either indoor or outdoor applications. The wide coverage pattern allows the horn to cover a larger audience area than is the case with many paging horns.

FEATURES

• Excellent voice range clarity for announcement and paging.
• High sensitivity delivers high sound levels with minimal power amplification.
• Wide 70° horizontal by 90° vertical coverage for medium throw applications.
• Phenolic diaphragm driver for outdoor durability and high reliability.
• UL-registered 15-watt multi-tap transformer, with 8 ohm direct bypass.
• Built-in high-pass filter enhances reliability by protecting against low frequency damage.
• Highly weather-resistant, with stainless steel bracket and hardware.
• Applications :
• Public Access Areas
• Warehouses
• Factories
• Schools
• Recreational Facilities
• Commercial Buildings
• Distribution Centers
• Civic Centers
• Other Commercial Sound and Protective Signaling Systems

SPECIFICATIONS

• Frequency Range (-10dB)
• 400 Hz - 7.5 kHz
• Coverage Pattern
• 70 degrees horizontal by 90 degrees vertical
• Included High-Pass Filter
• Passive 350 Hz High-pass filter built-in to protect against damage from frequencies below operational range
• Directivity Factor (Q)
• 10.9 (2 kHz)
• Directivity Index (DI)
• 10.4 (2 kHz)
• System Power Rating
• 15W (60W peak), 100 hours
• Sensitivity
• (1W, 2.83V @ 1m) 105 dB, ave. 1 kHz - 6 kHz; 111 dB at 2 kHz
• Max. SPL
• 117 dB cont ave. (123 dB peak), 1 kHz - 6 kHz; 123 dB cont ave. (129 dB peak), 2 kHz, 15W input, 8 ohm setting
• Nominal Impedance
• 15W/70V, NC/100V tap: 333 ohms; 7.5W/70V, 15W/100V tap: 667 ohms; 3.8W/70V, 7.5W/100V tap: 1333 ohms; 1.9W/70V, 3.8W/100V tap: 2666 ohms; 0.9W/70V, 1.9W/100V tap: 5332 ohms; 8 ohms at 8 ohm direct setting
• Transformer Taps
• 70V: 15W, 7.5W, 3.8W, 1.9W, 0.9W; 100V: 15W, 7.5W, 3.8W, 1.9W
• Full-Range Driver
• 33 mm (1.3") diameter with phenolic diaphragm
• Horn Material
• ABS
• Mounting Hardware
• Stainless steel powder-coated U-bracket (yolk) with 3 x 8.8 mm (0.34 in) diameter mounting holes, stainless steel exterior hardware
• Color
• RAL 9016 (horn and bracket)
• Input Connection
• 300 mm (12") pigtail to bare wire; entrance via watertight fitting; wire colors: red = positive (+), black = negative (-)
• Environmental
• IP-65 rating per IEC529, salt spray per B117, stainless steel U-bracket and exterior hardware
• Safety Agency Certifications
• Transformer UL registered per UL1876 "Isolating signal and feedback transformers for use in electronic equipment"
• Dimensions
• (H x W x D) 163 x 222 x 232 mm (6.5 x 8.8 x 9.2") horn; 181 x 222 x 232 mm (7.1 x 8.8 x 9.2") including mounting bracket; Depth excludes cable exit
• Weight
• 3.0 lbs (1.4 kgs)
