JBL VMA160 Commercial Series 60W Bluetooth-Enabled Mixer/Amplifier (VMA-160 / VMA 160)

The JBL VMA160 is a Commercial Series Bluetooth-enabled mixer/amplifier designed to provide flexible multi-source mixing and amplification for installation in restaurants, educational institutions, fitness centers, and retail stores. It features a 5-in/1-out mixer and 60W of output power. It can be installed in a standard 19” equipment rack with the supplied rackmount kit or set on a surface such as a desk or ledge. Stream music wirelessly via Bluetooth or connect a USB drive to the front-panel USB Type-A port. Route other sources via Euroblock, RCA, and 1/4" input jacks. The integrated mixer offers level controls as well as bass and treble for each channel. Routing to the Euroblock outputs is configurable. The VMA160 supports voice-activated ducking and priority muting. The front-panel controls and display make operation easy, and remote volume control is possible via a JBL CSR-V module and a standard Ethernet cable (both available separately).

FEATURES

• 5-Input Mixer
• Supports USB Drives and Bluetooth
• 60W, 1-Output Amplifier

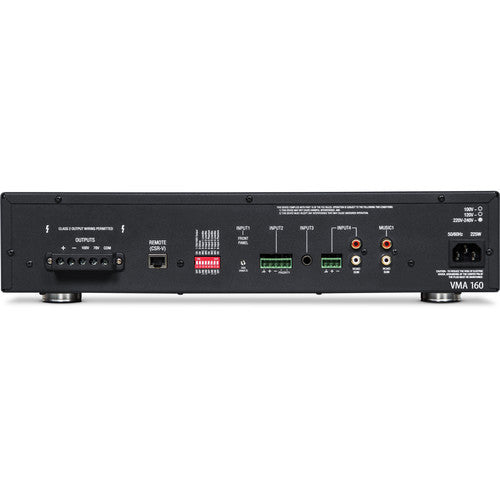

• Euroblock, RCA, and 1/4" Inputs
• Euroblock Outputs
• Per-Channel Bass and Treble Controls
• Voice-Activated Ducking

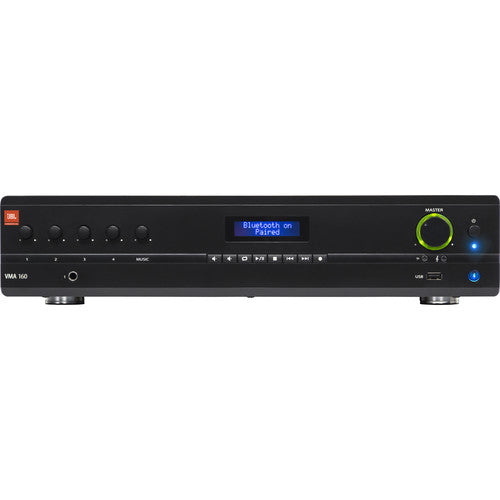

• Front-Panel Display and Controls
• Configurable Output Routing

SPECIFICATIONS

• Output Power : 60 W (per channel into 4 Ohms or 8 Ohms, 1 kHz, ≤0.5% THD)
• Insertion Loss : 70 V and 100 V Outputs: 1 dB maximum
• Input Channels : 5
• Output Channels : 1
• Tone Controls : Bass and Treble non-detented potentiometers on each channel | Bass : ±14 dB @ 50 Hz| Treble : ±14 dB @ 10 kHz
• Input Sensitivity : To obtain full rated power (load of 8 Ohms) | Mic Input : 5.5 mVrms | Line Input : 1.3 Vrms | RCA Input (Stereo In) : 130 mVrms
• Frequency Response : Measured at 2.83 Vrms into rated load impedance at any output | 4/8 Ohms Output: 20 Hz to 20 kHz, ±2 dB | 70 V/100 V Outputs : 80 Hz to 15 kHz ±3 dB
• Total Harmonic Distortion (THD) : Measured at 2.83 Vrms into rated load impedance at any output | Power Amp Output
• Signal-to-Noise Ratio : >76 dB (reference rated power, mixer levels @ minimum, master volume @ maximum A-weighted)
• Input Impedance : Nominal Mic : 400 Ohms | Line : 20 kOhms (balanced) | RCA : 50 kOhms
• Phantom Power : 27 VDC
• Crosstalk : -70 dB (reference rated power, volume at mid position, 1 kHz)
• Nominal Input Voltages : Nominal AC Line Voltages: 100, 120, 220, 220 to 240 VAC, 50/60 Hz
• Minimum Load Impedance : Low Impedance Output: 4 Ohms | 70 V Output : 80 Ohms | 100 V Output : 160 Ohms
• Operating Temperature : 32 to 95°F / 0 to 35°C
• Humidity : 95% RH (non-condensing)
• Storage Temperature : -4 to 185°F / -20 to 85°C
• Dimensions (W x D x H) : 17 x 16.3 x 3.5" / 432 x 415 x 88 mm
