JBL VRX928LA 8 inch Line-array System - Black (VRX-928LA/VRX 928LA)

8" Passive Speaker
Item ID: MB-VRX928LA
RM10,784.00
RM8,088.00
On Sale
Instant Savings: RM2,696.00 ( 0% GST)

Availability: Call For Status Check
Contacts Us To Check the Stock Status.
+6016-3111286

Estimated Shipping Fees - calculating...

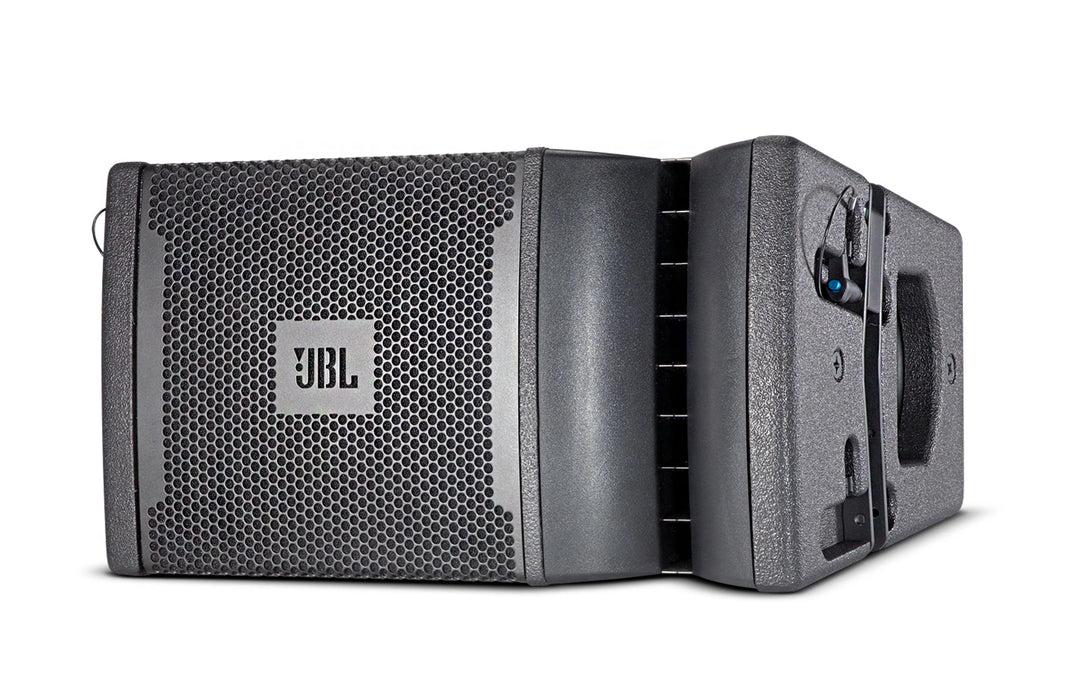

JBL VRX928LA 8 inch Line-array System - Black (VRX-928LA/VRX 928LA)


While intended for smaller venues than the VerTec series, the VRX928LA Constant Curvature Line Array is designed and built to the same high standards and uses the same advanced, concert-proven drivers. The VRX928LA delivers extraordinary power handling, clarity, flexibility and, of course, stunning JBL sound in an attractive, easy to handle and affordable package. The VRX928LA is a perfect fit for medium-sized venues that don't want to sacrifice sound quality just because they're not as big as other professional facilities. For compact power, it's the VRX928LA.


FEATURES
  • JBL's exclusive neodymium magnet Differential Drive woofer for high power capacity and lightweight.
  • Two patent-pending neodymium HF compression drivers.
  • Constant Curvature waveguide for unprecedented array coherence
  • Fly combinations of VRX928LA and Subwoofers (VRX915S) with optional array frame (VRX-SMAF)
  • Integral rigging hardware for simple connection of enclosures and optional array frame
  • Arrays of up to six enclosures may be flown.
  • Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or tripod stand.
  • Array Configuration Selector permits "array shading" in passive mode
  • Frequency Range (-10dB): 70Hz-20kHz
  • Frequency Response (+/-3dB): 87Hz-19kHz
  • Coverage Pattern: 100 degree x 15 degree nominal (horizontal x vertical), single unit
  • Crossover Modes: Bi-amp / passive, externally switchable
  • Crossover Frequency: 2.0kHz
  • Power Rating: 400 W / 800 W / 1600 W
  • Bi-amp LF: 400 W / 800 W / 1600 W
  • Bi-amp HF: 130 W / 60 W / 120 W
  • System Maximum SPL2: 122dB SPL peak (passive mode)
  • LF: 122dB (bi-amp mode)
  • HF: 128dB (bi-amp mode)
  • System Sensitivity (1w @ 1m): 90dB SPL (passive mode)
  • LF: 90dB (bi-amp mode)
  • HF: 108dB (bi-amp mode)
  • LF Driver: 1 x JBL 2168H 8 in Differential Drive woofer
  • HF Driver: 2 x JBL 2414H 1.0 in neodymium compression driver
  • Nominal Impedance: Passive: 8 ohms
  • Bi-amp LF: 8 ohms
  • Bi-amp HF: 16 ohms
  • Enclosure: 15 mm - 25 mm, multi-ply birch plywood
  • Suspension/Mounting: Dual 36mm pole socket included. Suspension requires optional VRX-SMAF line array frame kit or M10 eyebolts.
  • Transport: Integrated handle with backing cup
  • Finish: Black DuraFlex finish
  • Grille: Powder coated, black, 18 gauge perforated steel with acoustically transparent black foam backing.

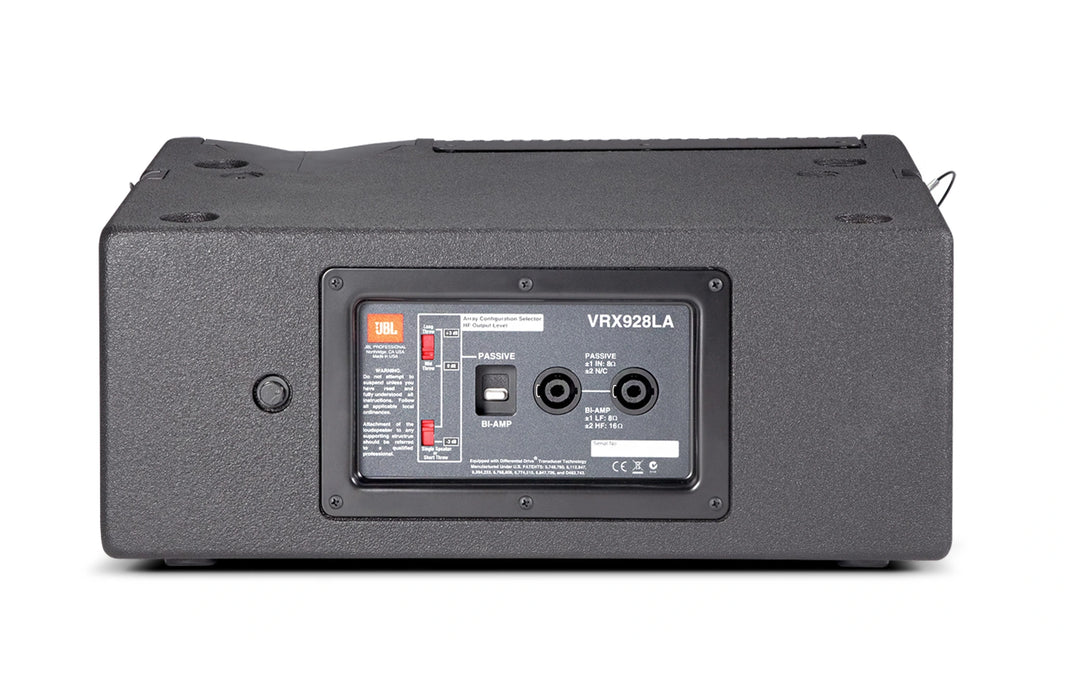

  • Input Connectors: Neutrik Speakon NL-4 (x2)
  • Dimensions: 9.0 in x 16.5 in x 10.5 in
  • Net Weight: 28 lb
