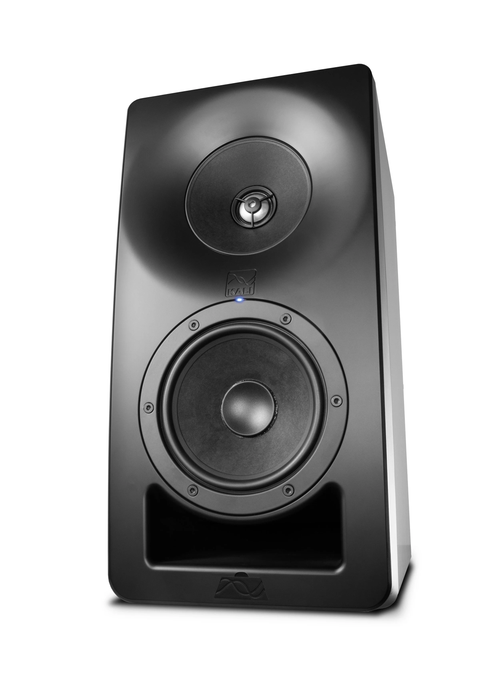

Kali Audio SM-5 5" Powered 3-way Studio Monitor (SM5)

As the first powered member of Kali's flagship Santa Monica series, the SM-5 combines the company's proven 3-way coincident architecture with no-compromise components and cutting-edge DSP. It comes equipped with a 5-inch woofer and a low-noise port tube for deeper low-end extension. Meanwhile, a coaxial 4-inch midrange driver houses a 1-inch aluminum-dome tweeter, while a low-diffraction baffle certifies rock-solid imaging and a smooth on-axis response. The SM-5's user-definable DSP parameters allow you to fully calibrate each speaker to your studio environment. To top it off, you get real-time control of the SM-5's EQ, delay, and trim functions, as well as locate, mute, solo, and dim functionality over an Ethernet network using the Kali Control Panel app. The SM-5 is ready to mount, enabling flexible placement in any studio — including as an overhead in an immersive audio system — and its recessed input panel allows for flush wall placement. Most importantly, no matter how you deploy this speaker, you can trust the SM-5 to produce a complete, accurate representation of any source material.

FEATURES

• Superb 3-way active monitor that's ideal for immersive audio and surround setups
• Flux-stabilized 5-inch woofer offers clear, powerful bass with low distortion
• Coaxial 4-inch midrange driver and 1-inch aluminum-dome tweeter provide sharp, lifelike imaging with impressive directivity
• Low-noise port tube delivers extended bass response
• 3-way coincident architecture delivers lifelike imaging
• Low-diffraction midrange baffle ensures a smooth on-axis response
• Includes neutral tuning and a DSP-powered limiter right out of the box
• 8-band EQ, delay, and trim controls with user-definable parameters offer effective room calibration
• Gain real-time control of multiple parameters over an Ethernet network using the Kali Control Panel app
• Built-in USB port allows for per-speaker configuration via a thumb drive

• Recessed input panel allows for flush wall placement

SPECIFICATIONS

• Powered:Yes
• Power Configuration:Tri-amped
• Quantity:Single
• LF Driver Size:5"
• LF Driver Type:Optimized Paper Woofer
• MF Driver Size:4"
• MF Driver Type:Optimized Profile Paper Cone
• HF Driver Size:1"
• HF Driver Type:Metal Dome Tweeter
• Total Power:225W
• Frequency Range:47 Hz-21kHz (±3dB)
• Frequency Response:39 Hz-28 kHz (-10dB)
• Crossover Frequency:280Hz, 2.8kHz
• Maximum Peak SPL:117dB @ 1m
• Input Types:1 x XLR-1/4" combo
• Other I/O:1 x Ethernet (network), 2 x BNC (AES/EBU in/thru)
• Features:Room Tuning, DSP
• Software:Kali Control Panel
• Enclosure Type:Front Ported
• Power Source:Standard IEC AC cable
• Height:15.6"
• Width:7.9"
• Depth:9.8"
• Weight:21 lbs.
