Korg Nu:Tekt NTS-2 Oscilloscope DIY Kit + Patch & Tweak Book Bundle

KORG, in collaboration with noted publisher Bjooks, (“PUSH TURN MOVE”, “PATCH & TWEAK” series...) is proud to present a fascinating KORG and ARP synth exploration experience in the form of this special, limited edition Bundle. This bundle combines the NTS-2, a powerful new tool optimized for a variety of studio tasks, and the “PATCH & TWEAK with KORG” book, a comprehensive look at semi-modular synthesis through the lens of KORG and ARP’s iconic synthesizers. Along with a multitude of artist interviews, patch tips, tutorials, historical explorations, and more, this book will teach you how to put the NTS-2’s power to work in your studio as a companion to your synthesizers and audio gear. Synth beginners and seasoned musicians alike will find the journey not just educational, but also inspirational and full of new discoveries.

VIDEO

FEATURES

• The NTS-2 kit is compact and easy to assemble (*), but don’t let its size fool you – it packs a real punch! The NTS-2 is an oscilloscope, tuner, FFT, and spectrum analyzer that is accurate, intuitive, and incredibly useful. But that’s not all – using its dual stereo IN, dual stereo THRU/OUT, and two separate OUTPUTs, you can wire it into your synth rig and use its dual waveform generators to give yourself an extra pair of oscillators or LFOs! It’s the ideal tool for every synth lover and modular user – from beginner to pro.


• The NTS-2 Kit and “PATCH & TWEAK with KORG” book were conceived and developed to complement each other, providing not only fundamental knowledge, but also the tools to guide and inspire synth lovers through their music journey.


• The Nu:Tekt NTS-2 is a DIY multifunctional tool for musicians. Building on a 4-channel oscilloscope that makes it easy to monitor and analyze audio and Control Voltage signals alike, the NTS-2 also includes a flexible waveform generator and spectrum analyzer, as well as tuner functions that make it the ideal addition to any studio.

SPECIFICATIONS

• Bundle
  - Included items : NTS-2, “PATCH & TWEAK with KORG” book, side panels for NTS-2, Stickers |
  - Weight : Gross 1.480kg (52.2oz), Net 1.320g (46.56oz)
  - Dimensions : 26.3 x 6.5 x 27.3 cm (10.35 x 2.56 x 10.75 inches)


• “PATCH & TWEAK with KORG”
  - Number of pages : 216
  - Weight : 0.8 kg (28.22oz)
  - Dimensions : 25 x 25 x 1.6 cm (9.84 x 9.84 x .63 inches)
  - Featured products : MS-20 / volca modular / ARP 2600 m / NTS-2 and many others.
  - Featured artists : More than 25 artists including Pete Townshend, Jean-Michel Jarre, Richard Devine, Andrew Huang and many others

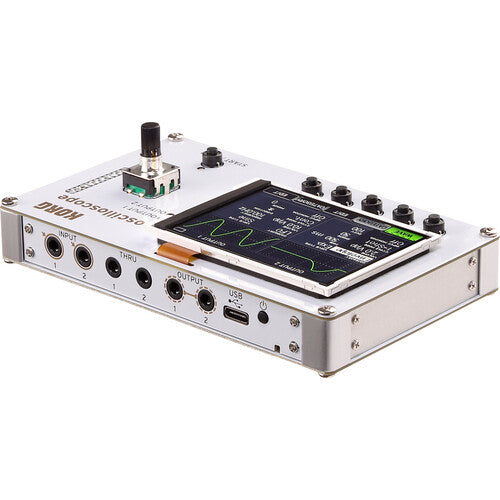

• NTS-2 oscilloscope kit
  - Dimensions : 12.9 x 7.8x 3.9 cm ( 5.08 x 3.07 x 1.53 inches)
  - Weight : 130g (not including batteries) (4.6 oz)
  - Power : USB type-C (2.0, 500mA max) or 2x AAA batteries (approx 2 hours running time)
  - Inputs : Input : 3.5mm Stereo x2, ±10V max | Through Output : 3.5mm Stereo x2 | Output : 3.5mm Mono x2, ±5V max


• Oscilloscope
  - Display modes : Single, Stereo (Input1L-INPUT1R, Input1L - Input2L, Input2L - Input2R), 4ch、XY(Lissajous, 2ch)
  - Vertical : 10mV~5V/div, AC/DC MODE switchable
  - Horizontal : 50us~1s/div
  - Trigger : Auto, Rise, Fall, Single(rise), Single(fall)


• FFT (Spectrum Analyzer)
  - Input : mono (1L, 1R, 2L, 2R)
  - Frequency 20Hz~20kHz


• Function Generator
  - Wave type : sine, square, triangle, saw, noise, pulse, envelope
  - Frequency : 1Hz~10kHz, Hz/NOTE mode switchable, [1ms~10s,sec/BPM switchable(pulse, envelope mode)]
  - Output level : 10Vpp max, V/dB mode switchable


• Tuner
  - Display mode : Needle, Meter
  - Input : Mono, Stereo (Input1L-Input1R, Input1L-Input2L)
  - Calibration : 410-480Hz
