Lab Gruppen IPX 1200 Compact 1200W 2-Channel DSP Controlled Power Amplifier (IPX1200)

FEATURES

• Compact 1,200 Watt, 2-channel amplifier with DSP control for touring applications
• Low mains current draw with proven IDEEA technology for power conservation
• Highly advanced DSP with 40 real-time multi-slope Parametric EQ's
• 50 user presets for system configuration and setup
• Networked control via touchscreen user interface
• AES3 and analogue inputs with redundant failover
• Renowned Speaker Protect Limiter (maxSPL) for optimal speaker match and protection
• 4-channel input mixer for multi-input mixing and switching
• Backlit display with navigation buttons and encoder for front panel setup
• Horizontal output VU meters on display in operating mode

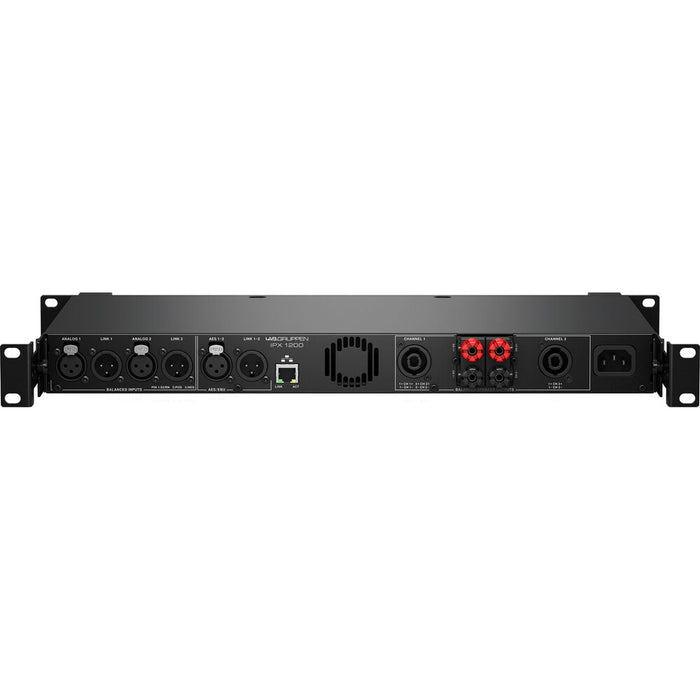

• Binding post and Neutrik speakON connectors
• Universal power supply supports 100 - 240 V at 50 or 60 Hz
• Fast network setup with auto-discovery and identification of amplifiers
• FIR-X mode Create speaker presets with FIR and IIR filters for single and multi-way loudspeakers

SPECIFICATIONS

• Maximum Output Power*
• 2 Ω per channel, stereo
  500 W
• 4 Ω per channel, stereo
  600 W
• 8 Ω per channel, stereo
  300 W
• Controls
• Front
  Power switch DSP section rotary push-encoder Buttons for Menu, Back, Mute (per channel)
• System
• Number of channels
• Output voltage
  70 V peak / 50 Vrms / 36.2 dBu
• Input sensitivity for maximum output voltage
  6 dBu
• Output current
  16 Arms
• Output circuit type
  Class-D
  THD+N
  < 0.1%, 20 Hz - 20 kHz @ 1 W
  < 0.05% @ 1 kHz, 1 dB below clip
• Output noise
  -66 dBu, A-weighted
• Signal-to-noise
  > 102 dB
• Channel crosstalk
  > 80dB @ 1 kHz
• Frequency response
  10 Hz to 20 kHz, +0.5/-1 dB 5 Hz to 40 kHz, -3 dB
• Common mode rejection (CMR)
  > 50 dB
• Gain (all DSP controls set to 0 dB)
  30 dB
• Indicators
• Power
  Red LED
• Limit, per channel
  Red LED
• Signal / mute, per channel
  Green/Red LED
