Lab Gruppen IPX 2400 Compact 2400W 2-Channel DSP Controlled Power Amplifier (IPX2400)

High power density, competitive cost and power consumption efficiency make the IPX 2400 the ideal compact yet powerful amp solution whether it’s for permanent installations, portable corporate AV systems, or live PA setups. Delivering 2 x 1200 W at 4 ohms, the IPX 2400 packs reliable power and performance into a single rack space. But raw muscle power is not enough. At the heart of the IPX platform, you’ll find a cutting-edge DSP engine equipped with up to 40 real-time, multi-slope parametric EQs along with adjustable gain, input and output delay – and both high- and low-pass filters adjustable to any frequency.

FEATURES

• Compact 2,400 Watt, 2-channel amplifier with DSP control for touring applications
• Low mains current draw with proven IDEEA technology for power conservation
• Highly advanced DSP with 40 real-time multi-slope Parametric EQ's
• 50 user presets for system configuration and setup
• Networked control via touchscreen user interface
• AES3 and analogue inputs with redundant failover
• Renowned Speaker Protect Limiter (maxSPL) for optimal speaker match and protection
• 4-channel input mixer for multi-input mixing and switching
• Backlit display with navigation buttons and encoder for front panel setup
• Horizontal output VU meters on display in operating mode

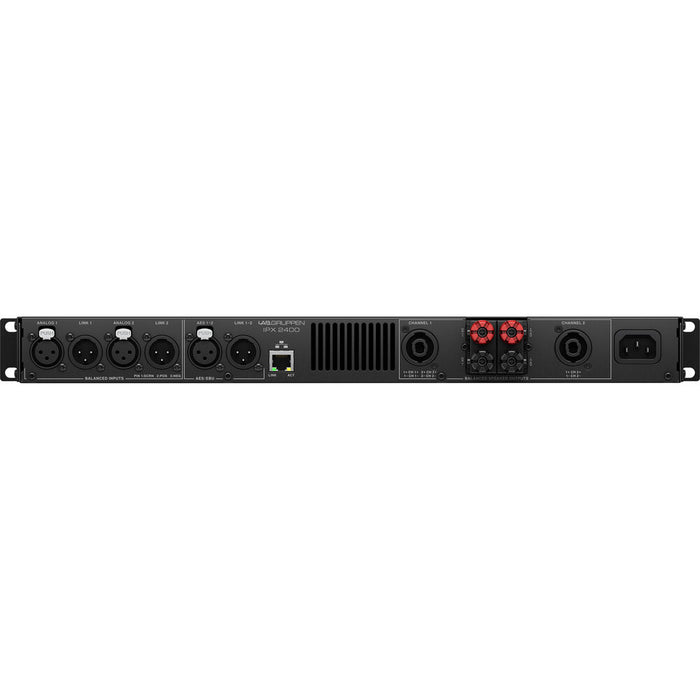

• Binding post and Neutrik speakON connectors
• Universal power supply supports 100 - 240 V at 50 or 60 Hz
• Fast network setup with auto-discovery and identification of amplifiers
• FIR-X mode Create speaker presets with FIR and IIR filters for single and multi-way loudspeakers

SPECIFICATIONS

• Maximum Output Power*
  - 2 Ω per channel, stereo : 800 W
  - 4 Ω per channel, stereo : 1200 W
  - 8 Ω per channel, stereo : 600 W


• System (Number of channels)
  - Output voltage : 100 V peak / 70 Vrms / 39.2 dBu
  - Input sensitivity for maximum output voltage : 6 dBu
  - Output current : 20 Arms
  - Output circuit type : Class-D
  - THD+N : < 0.1%, 20 Hz - 20 kHz @ 1 W | < 0.05% @ 1 kHz, 1 dB below clip
  - Output noise : -65 dBu, A-weighted
  - Signal-to-noise : > 104 dB
  - Channel crosstalk : > 80dB @ 1 kHz
  - Frequency response : 10 Hz to 20 kHz, +0.5/-1 dB 5 Hz to 40 kHz, -3 dB
  - Common mode rejection (CMR) : > 50 dB
  - Gain (all DSP controls set to 0 dB) : 33 dB
