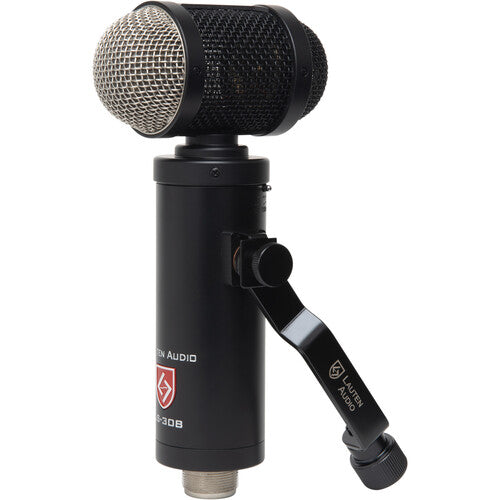

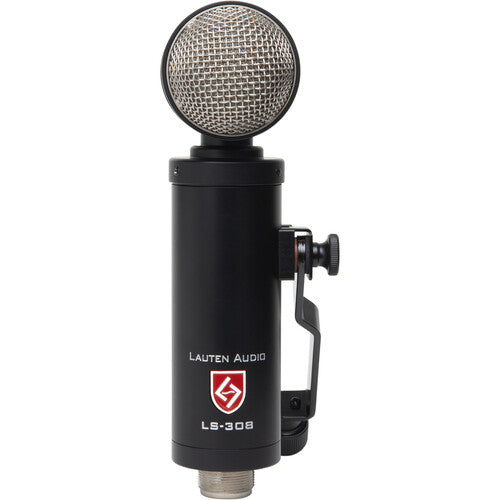

Lauten Audio LS-308 Large-diaphragm Side-address Condenser Microphone (LS308)

The Lauten Audio LS-308 is a noise-rejecting, high-dynamic-range, large-diaphragm condenser microphone that’s a real problem-solver in challenging scenarios where isolation is desired but difficult to achieve. Featuring a second-order cardioid polar pattern with 270 degrees of off-axis frequency rejection and ultra-high dynamic range, the LS-308 is designed for use in situations with leakage-prone, close-proximity sources — for example, tracking electric guitars in front of a live drum kit or miking the bottom of a snare. Constructed from top-drawer components and outfitted with frequency-shaping low- and highpass filters, the LS-308 offers excellent handling characteristics with its internally shockmounted transducer element that minimizes rumble and handling noise. The Lauten Audio LS-308 ships with two different mounting options, a foam windscreen, and a road case.

FEATURES

• Second-order cardioid polar pattern with 270° of off-axis rejection
• Provides superior isolation in noisy, close-quarter environments
• 135dB of dynamic range without the need of additional attenuation
• Internally shockmounted transducer element minimizes rumble and handling noise
• Frequency Range: 20Hz–20kHz
• SPL handling: >135dB (0.5%THD at 1kHz)
• Independent 2-stage low- and high-cut frequency switches
• Internally shockmounted pressure gradient condenser elements

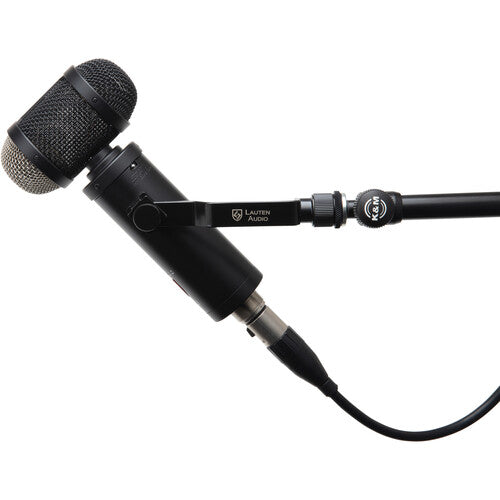

• Swing-arm mount with 135° of movement (removable)

SPECIFICATIONS

• Microphone Type:Dual-gradient Condenser
• Polar Pattern:Second-order Cardioid (270° side/rear rejection)
• Diaphragm Size:1.25" (32mm)
• Frequency Range:20Hz-20kHz
• Max SPL:135dB SPL
• Output Impedance:150 ohms
• Sensitivity:10.5mV/Pa (-40dB)
• Self Noise:15dB A weighted
• Low Cut Filter:50Hz, 120Hz
• Connector:XLR
• Color:Black
• Power Source:48V phantom power
• Dimensions:7.25" x 2.46"
• Weight:1.25 lbs.
