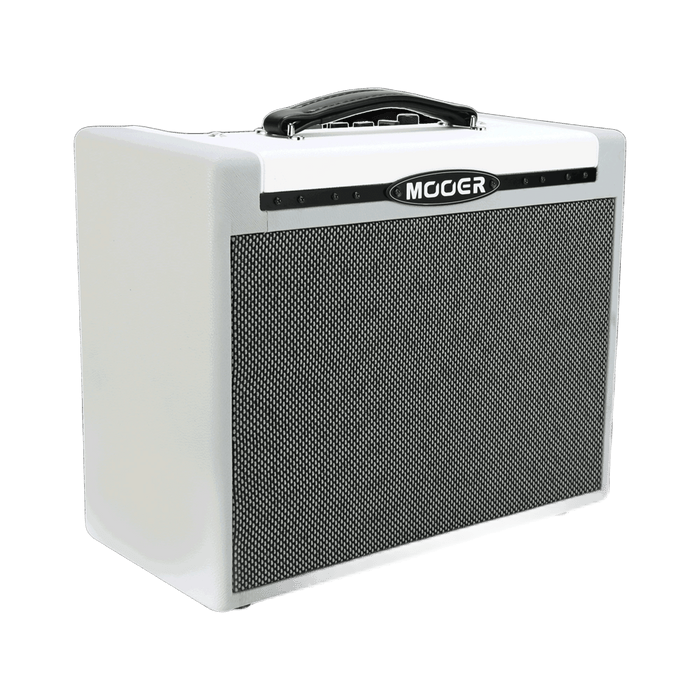

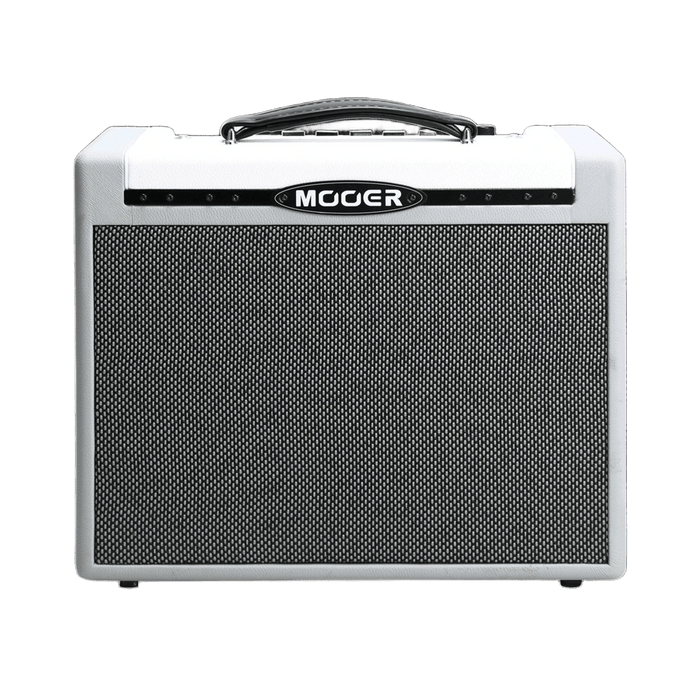

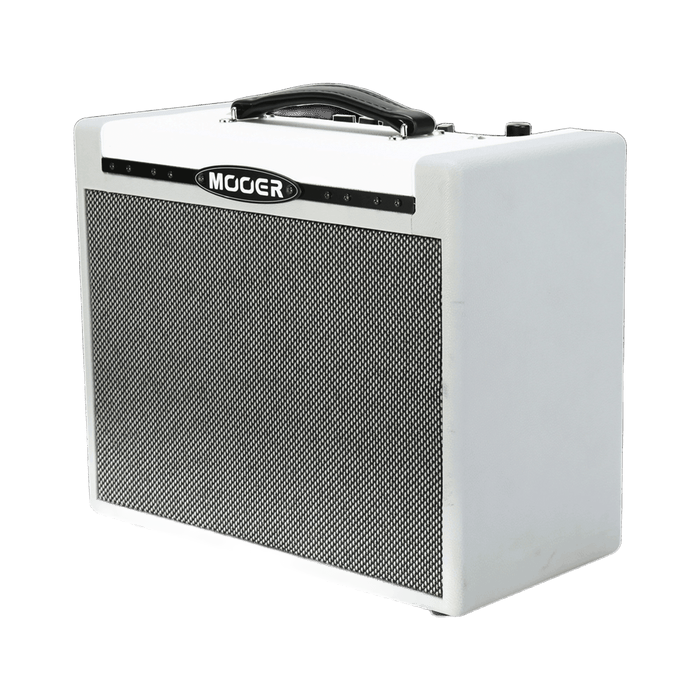

Mooer SD30 Modelling Guitar Combo Amplifier

The SD amplifier series is a harmonious marriage between MOOER’s famous digital preamp technology and a new take on traditional solid-state Class A/B amplification techniques, that deliver professional “tube like” performance, touch and feel, at entry level prices. Each model in the SD series comes fully loaded with a whole host of special-features and effects, that provide everything you need to craft incredible guitar tones for creating music on-stage or in the practice room. These tones can be stored within 40 preset slots and easily recalled using the proprietary wireless footswitch.

SD amps have a unique JAM section that contains a whole suite of tools for solo performers and creative aficionados alike, such as an integrated looper, syncable drum machine and Bluetooth connection for playback of your favorite audio tracks from an external device. The combo amps currently available in 30Watt and 75Watt versions, house custom-built guitar speakers, designed to deliver rich harmonics and enhanced feel with clarity, articulation and
dynamics throughout the amplifiers full volume range.

FEATURES

• 25 Digital preamp models based on MOOER’s unique digital preamp modelling technology, coupled with a Class A/B power amp, delivers tube like tone and response

• 28 integrated stompboxes including 8 drive pedals, 9 modulation pedals, 5 delay pedals (w/tap tempo), 6 reverb types and a precision chromatic tuner

• JAM section provides the ultimate in solo performance and practice facilities. Including a looper, syncable drum machine, AUX IN and Bluetooth connections for audio playback

• 40 preset slots to backup and recall your favorite tone settings. These can be easily recalled using the proprietary wireless footswitch (incl. with SD75)

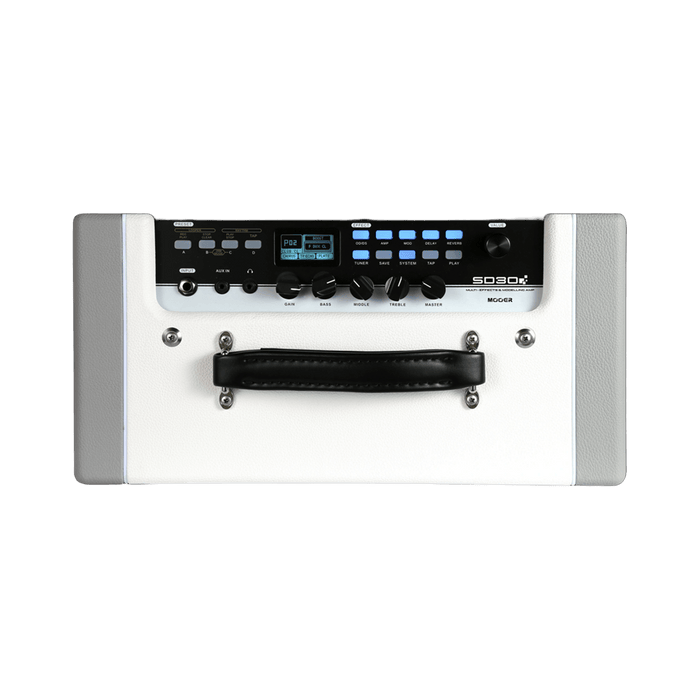

• Independent control knobs for main amp parameters allows fast and intuitive tone setup

• Professional custom 50W 8'' guitar speaker delivers fantastic tone

• Optional balanced output with integrated cabinet simulation for direct connection to PA and audio interface

• Independent headphone output with cabinet simulation for silent practice

• Serial FX LOOP for easy integration with your favorite effects pedals

• SPEAKER OUT for connection to external speaker cabinets

SPECIFICATIONS

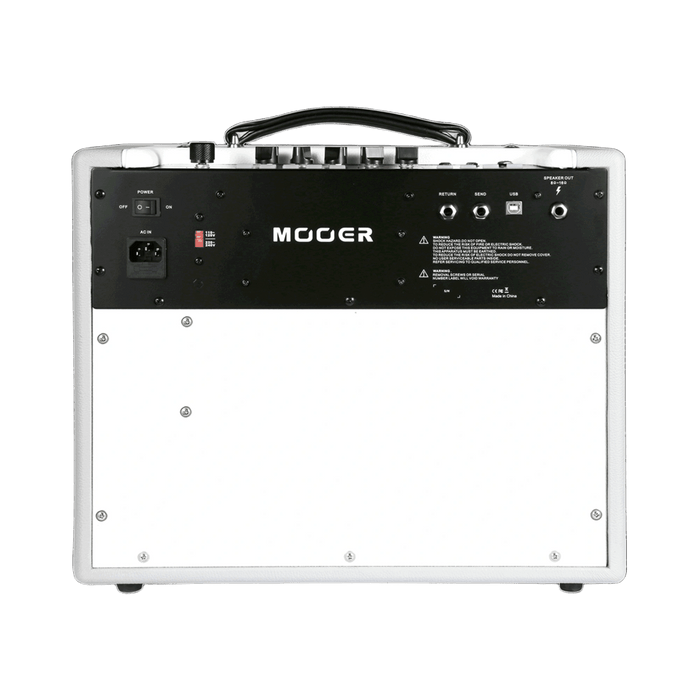

• Input: 1 /4” mono audio jack

• AUX IN 1 /8” stereo audio jack

• SEND/RETURN 1/4” mono audio jack

• HEADPHONE OUT: 1 /8” stereo audio jack

• SPEAKER OUT 8Ω-16Ω 30Watts 1/8” mono jack (unbalanced speaker cable)

• POWER Amp 30watt，class A/B

• USB Type-B

• Power supply: 220V-240V AC /100V-120V AC

• Power Fuse Contains the main power protection fuse and a backup replacement fuse. If the amplifier cannot power on, inspect the protection fuse and replace if necessary.

• T500mA - 220V-240V | T1000mA- 100V-120V

• Dimension: 420mm x 217mm x 368mm

• Weight: 8.3kg

• SPEAKER: 1 x 8" Custom 50W 8Ω Driver

• Amp Models 25

• Effects 28 (DS/OD:8; MOD:9; DELAY:5; REVERB:6 )

• LOOPER 150 seconds

• DRUM PATTERNS 40

• METRONOME 10

• PRESETS: 40
