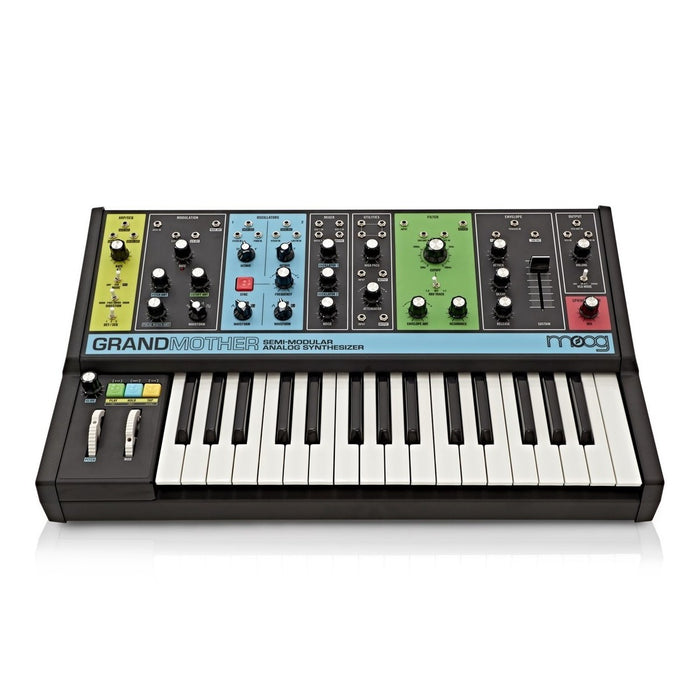

Moog Grandmother Semi-Modular Analog Synthesizer and Step Sequencer

The Moog Grandmother semi-modular analog synthesizer had us at "built-in spring reverb," and there is plenty more creative potential here than meets the eye. You can start playing and designing sounds immediately — no patching required. The onboard arpeggiator and sequencer are a blast to play with, and you can even save three sequences for instant recall anytime. And with its 32-note Fatar keybed, the Grandmother is one of the best-feeling compact analog synths you'll find. Whether you need it for stage or studio, the Moog Grandmother offers a fresh take on the classic Moog synth sound.

VIDEO

FEATURES

• Semi-modular monophonic Moog analog synthesizer with 41 patch points
• 32-note, velocity-sensitive Fatar keybed
• Built-in spring reverb can process internal and external sounds
• Semi-modular design — no patching required, but ready to integrate with Eurorack
• All normalized connections can be interrupted, for complete modular integration
• Flexible arpeggiator/sequencer, with 3 preset locations for your favorite sequences (up to 256 notes each)
• 2 oscillators with triangle, saw, square, and pulse waveforms, with PWM and Linear FM inputs
• 4-pole, 10Hz-20kHz ladder filter
• 1-pole highpass filter
• Analog ADSR envelope generator with dedicated fader for sustain-stage manipulation
• Analog LFO can reach audio rates
• MIDI connectivity via DIN MIDI in/out/thru and USB
• 41 patch points include 21 inputs, 16 outputs, and a parallel-wired 4-jack passive mult
• 1/4" audio input for external signals

SPECIFICATIONS

• Type:Keyboard Synthesizer with Sequencer
• Analog/Digital:Analog
• Number of Keys:32
• Type of Keys:Fatar Keyboard, Velocity-sensitive
• Other Controllers:Mod Wheel, Pitchbend Wheel, Variable Glide
• Polyphony:Monophonic
• Oscillators:2 x Analog VCO, White Noise Generator
• LFO:1 x Analog LFO with Audio
• Filter:4-pole 24dB/octave Ladder filter , Variable Highpass Filter
• Envelope Generator:1 x ADSR
• Effects Types:Spring Reverb
• Arpeggiator:Yes
• Sequencer:256 steps per sequence, store up to 3 sequences
• Audio Inputs:1 x 1/4" (instrument in), 1 x 1/8" (reverb in)
• Audio Outputs:1 x 1/4" (main/headphones), 1 x 1/8" (reverb out), 1 x 1/8" (eurorack out)
• Headphones:Shared with main out
• USB:1 x Type B
• MIDI I/O:In/Out/Thru/USB
• Other I/O:Clock in, Clock out, Reset in, On/Off in, 41 x Patch Points
• Power Source:12V DC 2A power supply
• Height:5.5"
• Width:23"
• Depth:14.25"
• Weight:16 lbs.
