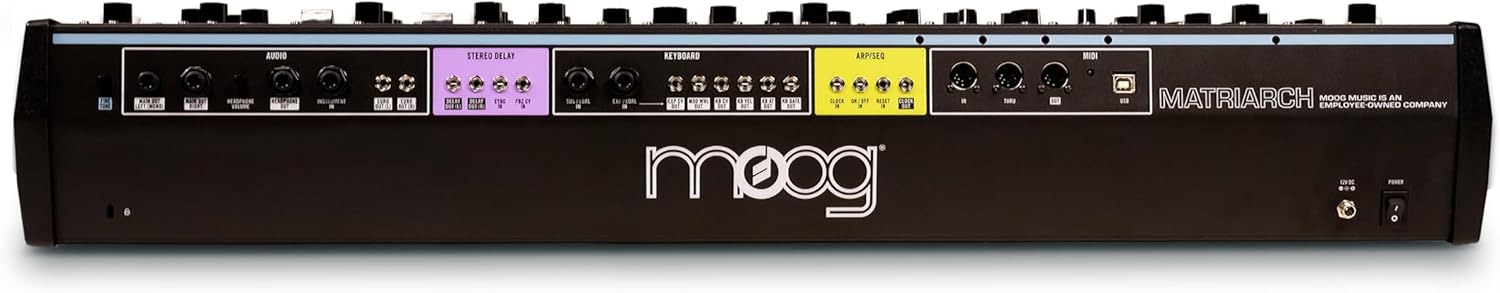

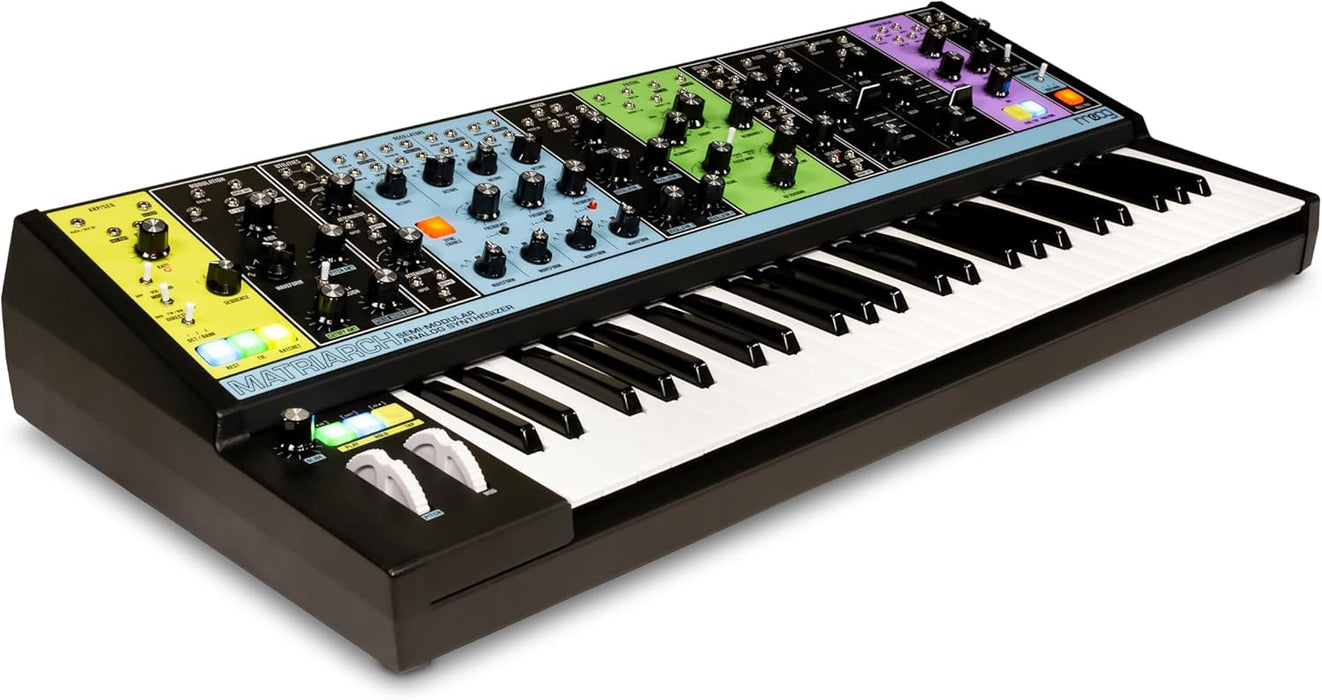

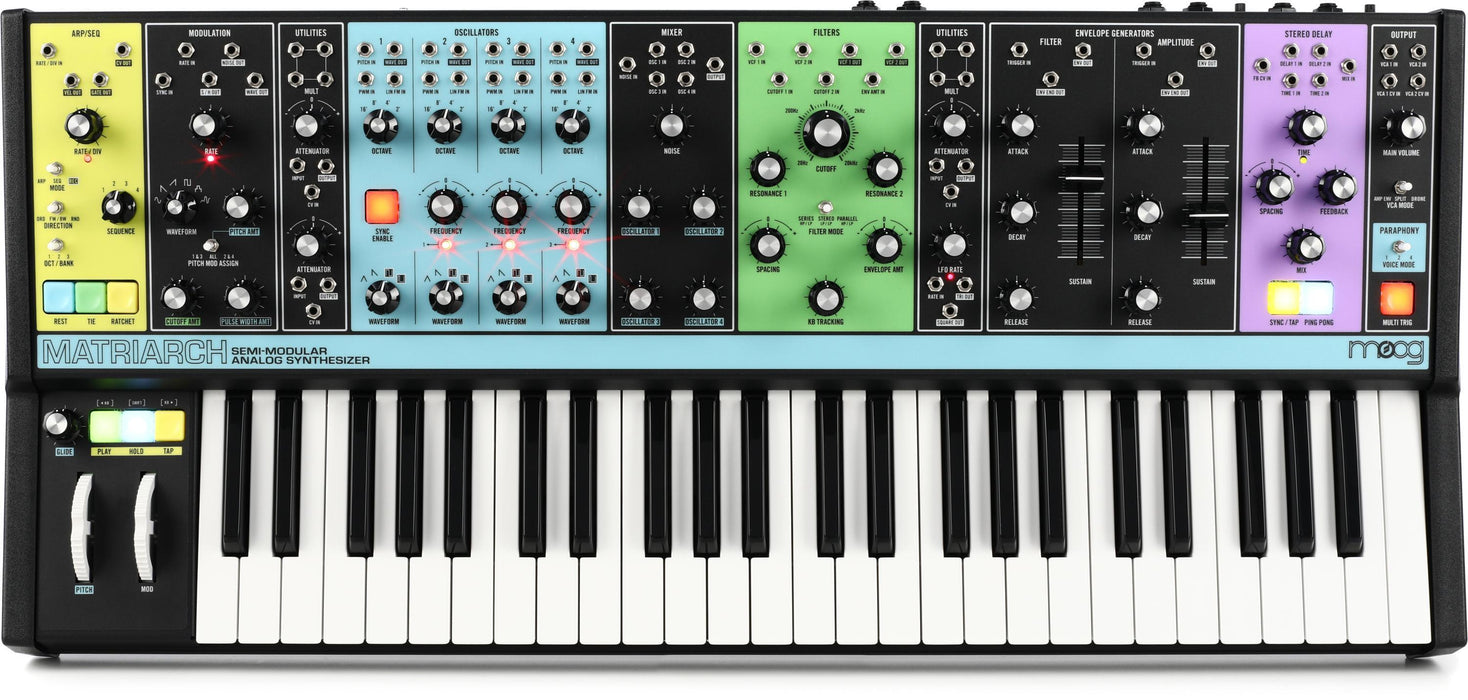

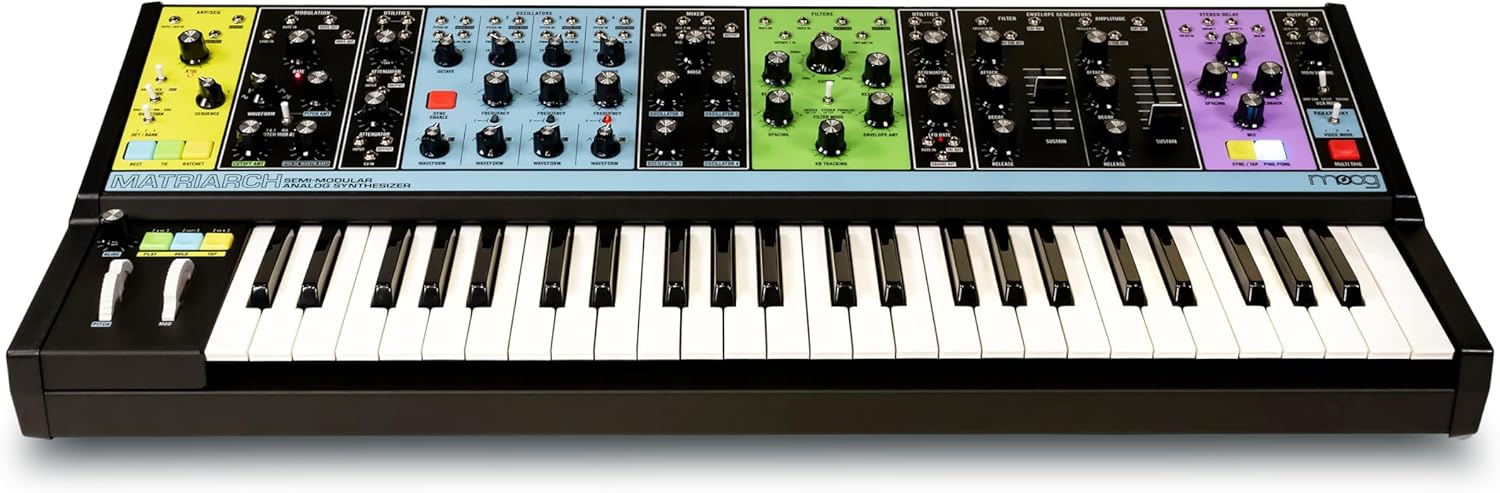

Moog Matriarch Semi-modular Analog Synthesizer and Step Sequencer

Based on the vintage circuitry of classic Moog synthesizer modules, Matriarch is a catalyst for creative ideas and a medium for multidimensional expression.

FEATURES

• VOICE MODE : Mono, duo, and 4-note paraphonic playability

• ANALOG DELAY : Stereo analog delay w/ up to 700ms of MIDI sync-able stereo or ping/pong style repeats

• SEQUENCER : 256 step sequencer w/ up to 4 notes per step and 12 stored patterns. Can be decoupled from Matriarch to independently sequence external gear.

• ARPEGGIATOR : Arpeggiator with selectable modes (Order, Forward/Backward, Random).

• SEMI-MODULAR DESIGN : Semi-modular analog synthesizer - no patching required.

• MODULAR CAPABILITIES : 90 modular patch points for endless exploration

• KEYBOARD : Diode Wavefolder
• ANALOG OSCILLATORS : 4 analog oscillators w/ selectable waveshape and hard sync per-oscillator.
• LFO : Full-range analog LFO with 6 selectable waveshapes.
• LADDER FILTERS : Dual analog filters with parallel (HP/LP), stereo (LP/LP), and series (HP/LP) modes available.
• ENVELOPE GENERATORS : Dual analog ADSR envelopes.
• VOLTAGE CONTROLLED AMPLIFIERS : Dual analog VCAs.
• ATTENUATORS : 3x bipolar voltage controlled attenuators with ring mod capability.
• MULTIPLES : 2x4 parallel wired unbuffered mults.
• SECOND LFO : Additional simple analog LFO useful for adding modulation to delay, filters and VCAs.
• EXTERNAL PROCESSING : 1/4“ external audio input for processing guitars, drum machines, and more through Matriarch’s analog circuits.
• OUTPUTS : Stereo ¼” and 3.5mm Eurorack level audio outputs.

SPECIFICATIONS

• Type : Keyboard Synthesizer with Sequencer

• Analog/Digital : Analog

• Number of Keys : 49

• Type of Keys : Fatar Keyboard, Full Size

• Aftertouch : Yes

• Velocity Sensitive : Yes

• Other Controllers : Pitchbend, Mod wheel, Variable Glide

• Polyphony : Monophonic, Duophonic, 4-note Paraphonic

• Oscillators : 4 x Analog VCO with Hard Sync

• Waveforms : Triangle, Sawtooth, Square, Narrow Pulse

• LFO : 1 x LFO

• Filter : Dual Ladder Filters; Stereo, Parallel, Series

• Envelope Generator : 2 x ADSR

• Effects Types : Stereo Analog Delay; up to 700ms, MIDI sync-able, Classic-style, Ping-pong Repeats

• Arpeggiator : Order, Forward/Backward, Random

• Sequencer : 256-step Sequencer, 4-notes per Step, 12 x Patterns, External Sequencing

• Audio Inputs : 1 x 1/4" (instrument)

• Audio Outputs :    2 x 1/4" (L/mono, R), 2 x 1/8" (Eurorack L/R)

• Headphones : 1 x 1/4"

• USB : 1 x Type B

• MIDI I/O : In/Out/Thru, USB

• Pedal Inputs :    1 x 1/4" (sustain), 1 x 1/4" (expression), 1 x 1/8" (expression CV out)

• Other I/O : 90 x Patch Points (49 inputs, 33 outputs, 8 mults)

• Power Source :    12V DC power supply (included)

• Height : 5.5"

• Width : 32"

• Depth : 14.25"

• Weight : 30 lbs.
