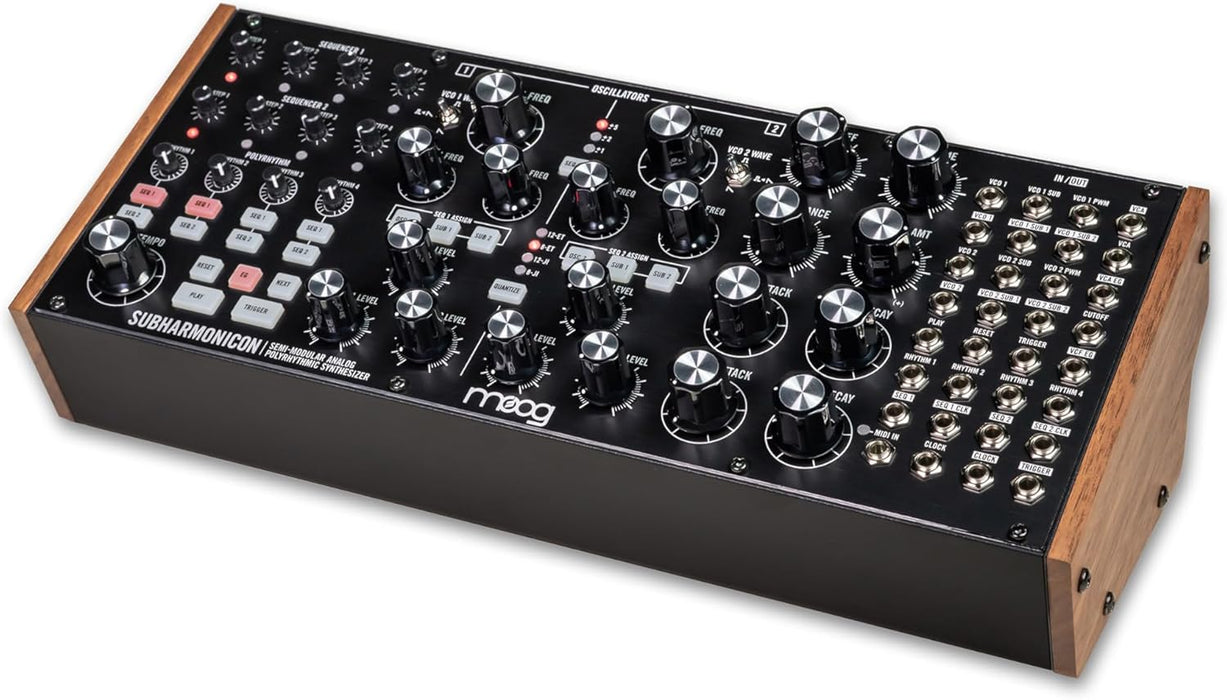

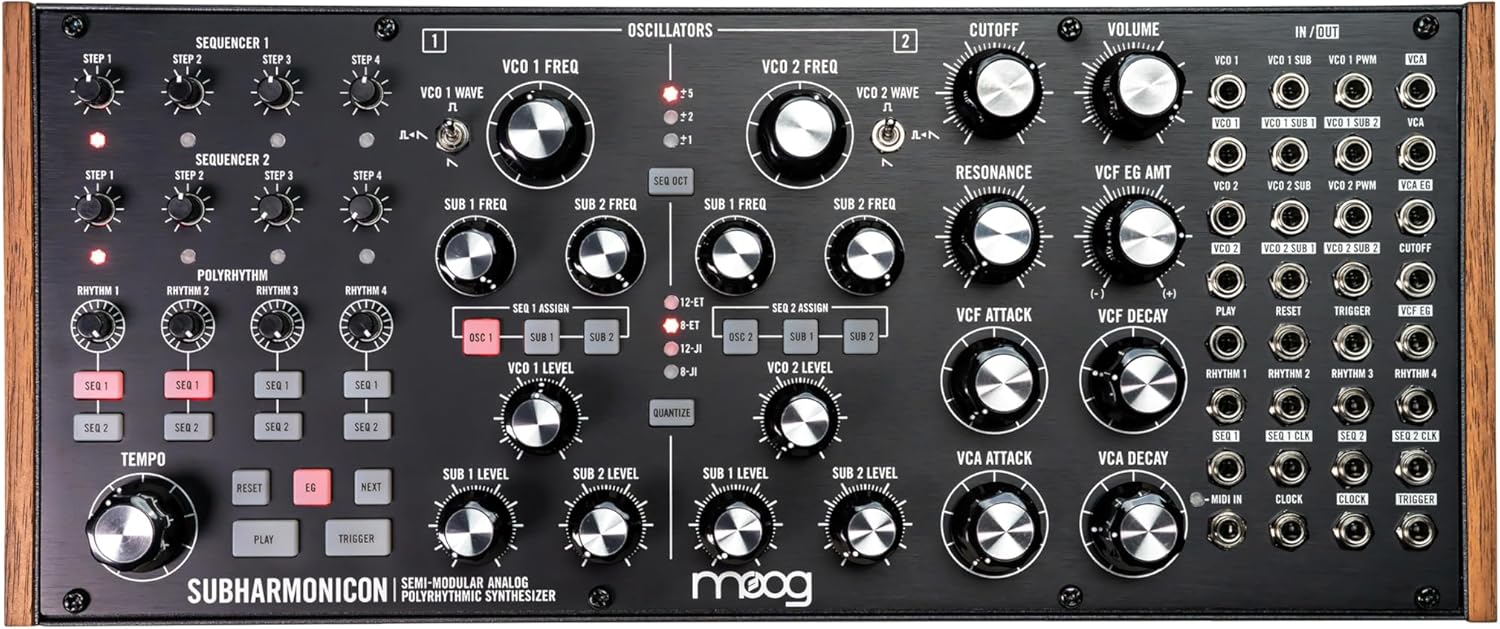

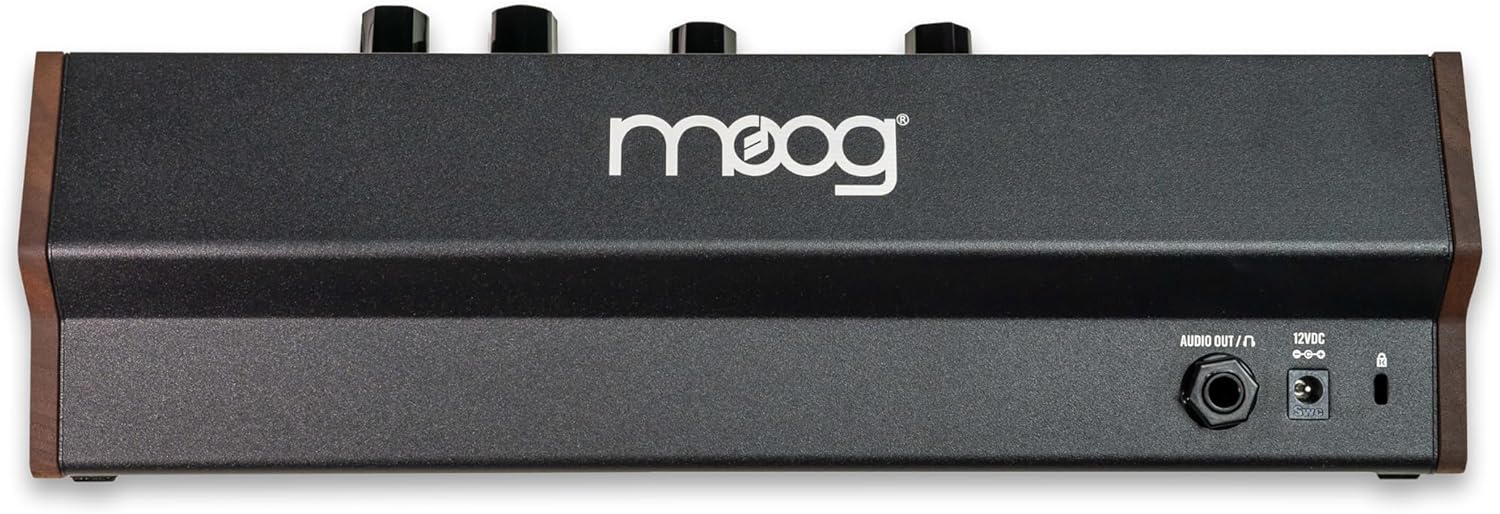

Moog Subharmonicon Semi-Modular Polyrhythmic Analog Synthesizer

The newest addition to the Moog Mother Ecosystem, the Moog Subharmonicon semi-modular analog synthesizer and sequencer brings all the Moog analog flavor with a rhythm entirely its own. First released in a limited run of 120 units in 2018, the Subharmonicon became an instant cult classic for its unique take on subharmonic synthesis and polyrhythmic sequencing. With two VCOs, each with two suboscillators and a four-pole resonant filter, the Subharmonicon produces creamy all-analog tones with basement-dwelling lows and scorching high-end. Its truly innovative sequencing capabilities use a combination of two four-step sequencers (one per VCO section) and a polyrhythmic generator to create wild, erratic polyrhythms and evolving harmonic chordscapes. Use it as a standalone semi-modular synthesizer or insert it into your Eurorack system for infinite sonic exploration.

FEATURES

• Wide-release version of a limited-edition cult-classic synth

• 2 analog VCOs and 4 suboscillators

• 4-pole resonant lowpass filter and VCA with attack and decay controls

• 2 x 4-step sequencer and polyrhythm generator produce complex sequences

• Stack oscillators for 6-note pseudo-polyphony

• Manual and clock-syncable tempo controls

• Expansive 32-point patchbay for limitless tweakability

• Complete 60HP Eurorack synthesizer that can easily be installed in a Eurorack case

SPECIFICATIONS

• Type : Semi-modular Desktop Synthesizer and Sequencer

• Analog/Digital : Analog

• Polyphony : Mono

• Presets : 6-tone Subharmonic Chords, 4 x Rhythm Generators

• Oscillators : 2 x VCO, 4 x Subharmonic

• Waveforms : Sawtooth, Square wave

• Envelope Generator : VCA (attack, decay), VCF (attack, decay)

• Filter : Self-oscillating Ladder Filter, Lowpass, 4-pole (24dB/Octave)

• Sequencer : 2 x Sequencers, 4 Steps per Sequencer, Selectable Quantization

• Headphones : Shared

• MIDI I/O : 1 x 1/8" TRS Type A (In)

• Other I/ O:32 x Patch Points

• Power Supply : 12V DC power supply (included)

• Height : 4.2 "

• Width : 12.57" (60HP)

• Depth :    5.24"

• Weight:    3.5 lbs.

Product Dimension Shipping Weight: 3.0 kg
