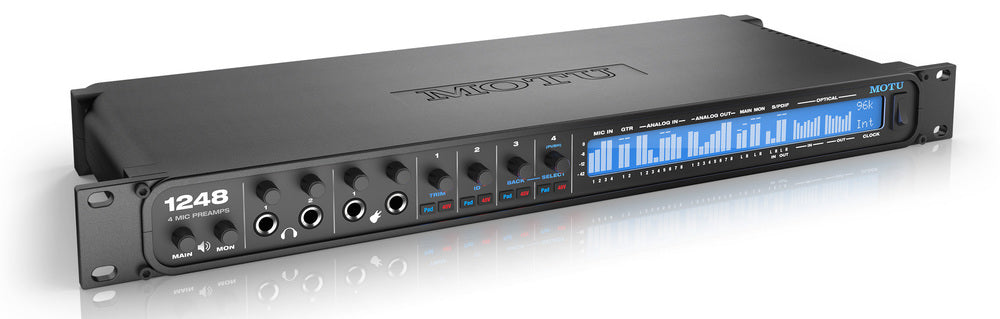

MOTU 1248 32x34 Thunderbolt / USB 2.0 Audio Interface with AVB

There are tons of cool ways to use the MOTU 1248 hybrid audio interface, ranging from modest one-room studios to multi-room production houses or full-blown live-sound applications. However you put your 1248 to work, we're sure you'll appreciate its exquisite sound quality and extremely flexible I/O. In all, you get 32 inputs and 34 outputs, including a flexible 8 x 12 analog section. Four stellar MOTU preamps provide clean and clear amplification, and extremely high-speed Thunderbolt connectivity makes latency a total nonissue. Onboard the 1248 you'll find a powerful DSP mixer complete with effects, EQ, and dynamics. MOTU AVB Ethernet lets you network multiple interfaces to your 1248, and advanced capabilities even let you use it as a standalone, iPad-controlled digital mixer.

VIDEO

FEATURES

• A fantastic 32-in/34-out hybrid audio interface for studio and live sound applications
• 4 pristine microphone preamplifiers offer clear and transparent sound of any kind of microphone
• ADAT optical and S/PDIF digital I/O let you expand your system with additional gear
• Choose from ultra-low-latency Thunderbolt, high-speed USB 2.0, or iPad/iOS (w/ Camera Connection Kit) connectivity
• Onboard 32-bit floating point DSP-driven digital mixer with EQ, dynamics, and effects provides latency-free routing
• Hook up a wireless router and take complete control of the onboard mixer from your iOS device - no computer needed!
• MOTU's AVB audio networking lets you easily expand your system and additional AVB equipped audio interfaces
• Create an AVB network via optional AVB Switches for support for up to five compatible interfaces

SPECIFICATIONS

• Computer Connectivity:1 x Thunderbolt, 1 x USB 2.0 Type B
• Form Factor:Rackmount
• Simultaneous I/O:32 x 34
• A/D Resolution:24-bit/192kHz
• Built In DSP/FX:Yes
• Number of Preamps:4
• Phantom Power:Yes
• Analog Inputs:4 x XLR, 8 x 1/4" TRS, 2 x 1/4" (hi-Z)
• Analog Outputs:8 x 1/4" (line out), 2 x 1/4" (main out), 2 x 1/4" (monitor out)
• Digital Inputs:2 x Optical (ADAT, SMUX), 1 x Coaxial (S/PDIF)
• Digital Outputs:2 x Optical (ADAT, SMUX), 1 x Coaxial (S/PDIF)
• Headphones:2 x 1/4"
• Data I/O:Ethernet
• Clock I/O:In, Out/Thru
• OS Requirements - Mac:1GHz Intel CPU or higher, 4GB RAM or more recommended, OS X 10.8 or later, iOS/iPad compatible (with camera connection kit)
• OS Requirements - PC:1GHz Intel compatible processor or higher, 4GB RAM or more recommended, Windows 7 or later, USB 2.0 audio class compliant hosts
• Rack Spaces:1U
• Height:1.75"
• Width:19"
