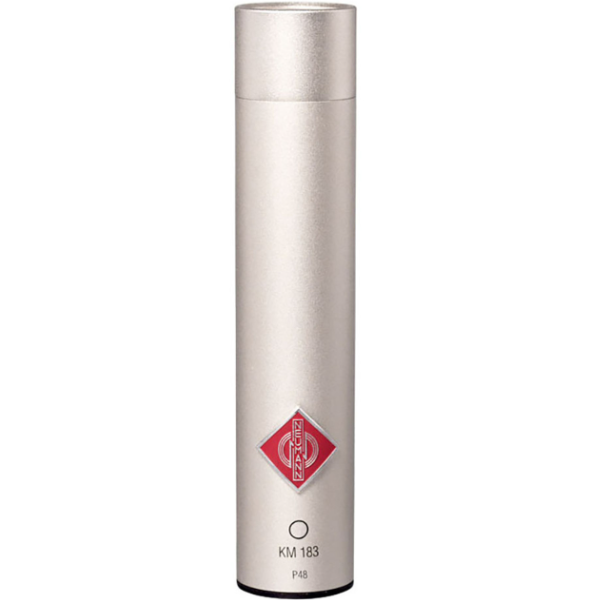

Neumann KM 183 Omnidirectional Small-diaphragm Condenser Microphone - Nickel (KM183NI)

The KM 183 is a state-of-the-art small diaphragm condenser microphone with a frequency-independent omnidirectional polar pattern. Its very natural, transparent sound with very low self-noise and high SPL capability have made the KM 183 a worldwide studio standard for many applications ranging from classical piano to heavy metal drums.

FEATURES

• Omnidirectional polar pattern with excellent off-axis behavior
• Diffuse-field equalized
• Pressure transducer with unlimited bass response
• Very low self-noise (13 dB-A)
• Transformerless circuitry
• Compact size, visually unobtrusive


SPECIFICATIONS

• Acoustical operating principle : Pressure transducer

• Directional Patter : Omnidirectional

• Frequency Range : 20 Hz 20 kHz

• Sensitivity at 1 kHz into 1 kohm : 12 mV/Pa ± 1 dB

• Rated Impedance : 50 ohms

• Rated load impedance : 1 kohms

• Equivalent noise level, CCIR¹⁾ : 24 dB

• Equivalent noise level, A-weighted¹⁾ : 13 dB-A

• Maximum SPL for THD 0.5%²⁾ : 140 dB

• Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾ : 70 dB

• Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾ : 81 dB

• Maximum output voltage : 10 dBu

• Supply voltage (P48, IEC 61938) : 48 V ± 4 V

• Current consumption (P48, IEC 61938) : 3.2 mA

• Matching connector : XLR 3 F

• Weight : approx. 80 g

• Diameter : 22 mm

• Length : 107 mm
