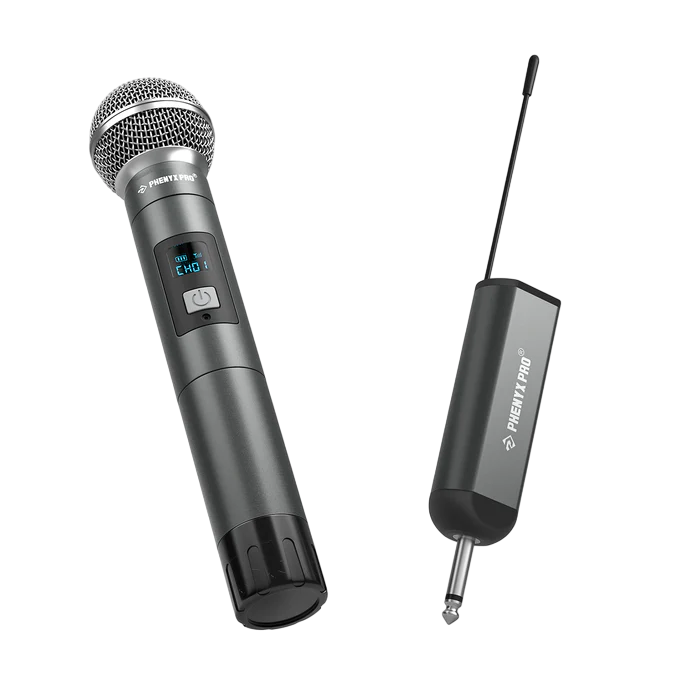

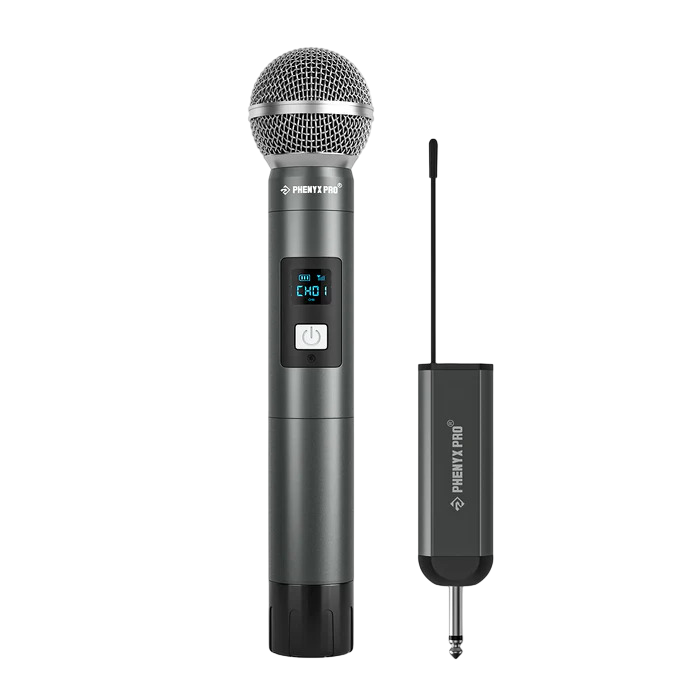

Phenyx Pro PDP-1-1H Single Digital Portable Wireless Microphone System

The Phenyx Pro PDP-1 is our first digital audio solution with pristine sound quality. Crafted with advanced 48kHz/24bit digital circuitry, it strategically uses the tunable 800/900MHz frequency to steer clear of the congested 500MHz and 2.4GHz bands. Ideal for small-scale events like karaoke, DJ parties, weddings, church sermons, broadcasts, meetings, etc.

FEATURES

• The digital circuitry with 48 kHz/24-bit high resolution sampling rate reproduces accurate pure sound without distortion artifact noises.
• Tunable UHF design, free to interference and multiset hookup. (The 900MHz-band version has 15 frequency groups. The 800MHz-band version has 5 frequency groups.)
• The cardioid dynamic handheld microphone captures your original sound and delivers reliable performance.
• 3-pin mini XLR connection between the bodypack and headset/lapel mic offers high-quality sound transmission with great freedom.
• The universal USB Type-C charging port for the portable receiver and bodypack offers convenient, fast charging.
• Long-lasting battery life for the 1500mAh battery of receiver and 550mAh battery of bodypack transmitter.
• Plug-and-go hookup and one-tap frequency selection on the transmitter for your convenience.
• Transmitter mute function for convenience and smooth performance.
• Good to go with the 160 - 200ft line-of-sight range.
• Built with elegant and portable design, reliable and convenice for on-the-go performance.
• Various transmitters for selection including bodypack, handheld microphone.

SPECIFICATIONS

• PWR-P1/2 Wireless Receiver
  Operating temperature
  0℃ to +55℃
  Battery capacity
  1500mAh
  Output
  TS 1/4'' Male Output
  Charging interface
  USB-C
  Power supply
  DC 5V 500mA
• PWB-P Bodypack Transmitter
  Headset/lapel mic type
  Condenser
  Polar pattern
  Omni
  Sensitivity
  Headset mic: -36dB(±2dB)
  Lapel mic
  -30dB(±2dB)
  S/N ratio
  96dB
  Frequency response
  110Hz - 18kHz
  Output impedance
  2.2kΩ
  Sample rate
  48kHz
  Bit rate
  24bit
  THD+N
  0.1%
  Charging interface
  USB-C
  Charging time
  About 2h
  Working time
  About 5.5h
• PWH-P Handheld Transmitter
  Mic type
  Dynamic
  Polar pattern
  Cardioid
  S/N ratio
  96dB
  Frequency response
  50Hz - 16kHz
  Output impedance
  600Ω
  Sample rate
  48kHz
  Bit rate
  24Bit
  THD+ N
  0.05%
