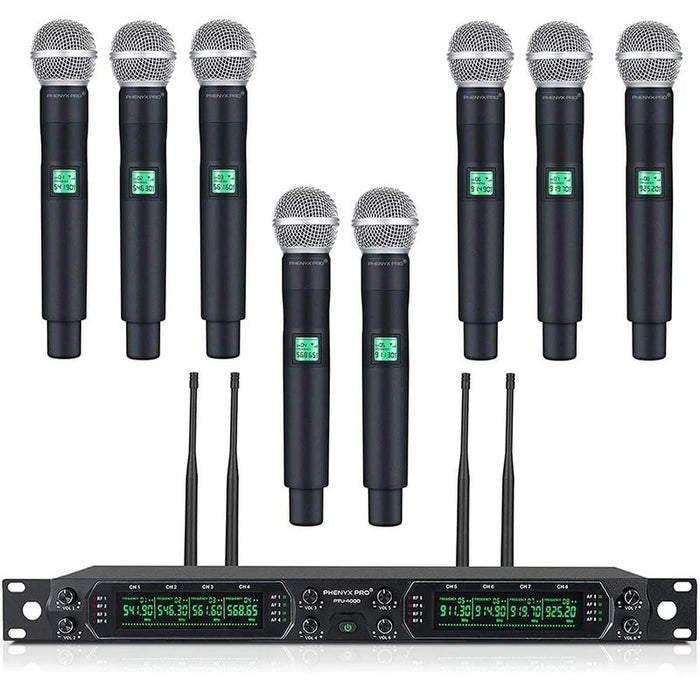

Phenyx Pro PTU-4000-8H UHF Fixed Frequency Eight-channel Wireless Microphone System (PTU40008H)

Whether you are hosting an event or singing on stage, the PTU-4000 is the all-in-one microphone system that you need. Thanks to the easy and intuitive operation, you are free to focus on your content instead of the equipment. With the versatile 8-channel configuration and crystal clear audio, your talent is no longer limited.

FEATURES

• Crystal clear audio quality with cardioid pickup pattern to minimize noise.

• Rack-mountable with built-in rack ears for easy operation.

• Sturdy all-metal construction for both receivers and handheld mics.

• Eight XLR outputs for each channel and one 1/4" TS unbalanced mixed output for combined audio.

• Up to 260ft long operation range.

• Simple setup operation. Just turn it on and it is ready to go.

• > 8 hours battery life for each microphone.

• Comes with 8 durable handheld mics.

• Fixed frequency design in the UHF frequency band. The frequency for this system is 541.9MHz, 546.3MHz, 561.6MHz, 568.65MHz, 911.3MHz, 914.9MHz, 919.7MHz, and 925.2MHz.

SPECIFICATIONS

• Overall System
  - Frequency stability : ±0.003%
  - Dynamic range : >105dB
  - Operation temperature : -10 °C to 50 °C
  - Frequency response : 50Hz - 18kHz
  - Audio output level : 1/4 interface: 0 - 500 mV; | XLR interface: 0-500mV
  - Working distance : 80M/260ft


• Receiver
  - Oscillation mode : PLL Synthesized
  - Power consumption : >7W
  - Output impedance : XLR connector:200 ohm. | Antenna connector: 50 ohm
  - RF sensitivity : -105 dBm
  - Image rejection : >100 dB
  - Spurious rejection : >90 dB
  - Power requirement : DC 12 – 15V, Current 1000mA, | External power adapter


• Handheld & Bodypack Transmitter
  - Audio input level : Gain:0dB; -20 dBV maximum-10dB; -0 dBV maximum
  - Gain adjustment range : 10dB
  - Power requirement : 2 AA size alkaline batteries for each transmitter
  - Battery life : At least 8 hours with original batteries for each transmitter


• Frequency List (· PWR-51)
  - Channel and frequency : Compatible antenna
  - Channel 1: 558.90MHz : ANTB-500
  - Channel 2: 571.80MHz : ANTB-500


• PWR-5000
  - Channel and frequency : Compatible antenna
  - Channel 1: 541.90MHz : ANTB-500
  - Channel 2: 546.30MHz : ANTB-500
  - Channel 3: 561.60MHz : ANTB-500
  - Channel 4: 568.65MHz : ANTB-500


• PWR-4000
  - Channel and frequency : Compatible antenna
  - Channel 1: 541.90MHz : ANTB-500
  - Channel 2: 546.30MHz : ANTB-500
  - Channel 3: 561.60MHz : ANTB-500
  - Channel 4: 568.65MHz : ANTB-500
  - Channel 5: 911.30MHz : ANTB-900
  - Channel 6: 914.90MHz : ANTB-900
  - Channel 7: 919.70MHz : ANTB-900
  - Channel 8: 925.20MHz : ANTB-900
