Phenyx Pro PTU-4200-8H 8-Channel Wireless Microphone System w/ Frequency Hopping

The Phenyx Pro PTU-4200-8H is a UHF 8-channel wireless microphone system crafted for professional settings such as karaoke, live shows, church services, and outdoor events. With 8x20 selectable frequencies, automatic pairing, and up to 200 ft of wireless range, it ensures stable and flexible audio transmission for demanding multi-mic setups.

FEATURES

• Clear Sound with Noise-Reducing Design : Cardioid dynamic capsules ensure smooth and clean sound pickup, reducing background noise and feedback. Each handheld mic comes with a windscreen to minimize plosive sounds, offering clearer vocal delivery in all environments.
• Reliable Wireless Performance : Enhanced circuitry delivers stable UHF transmission without dropouts or hiss. 20 selectable frequencies on each channel in the 500MHz band support simultaneous multi-system operation without interference. Operates up to 200 ft (line of sight), providing freedom to move on stage or across venues.

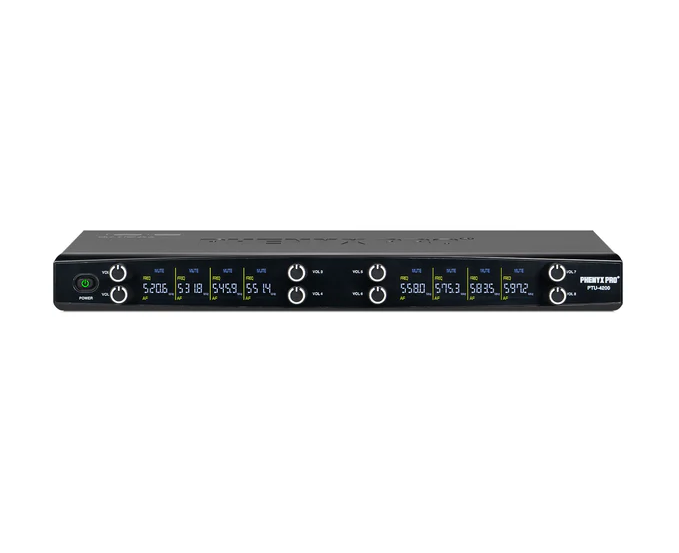

• Sturdy Construction with Practical Features : The wireless receiver and handheld microphones feature a durable metal housing, built to withstand regular transport and frequent use. Frequency and volume can be adjusted directly from the handheld transmitter, making quick changes easy even in the middle of an event.

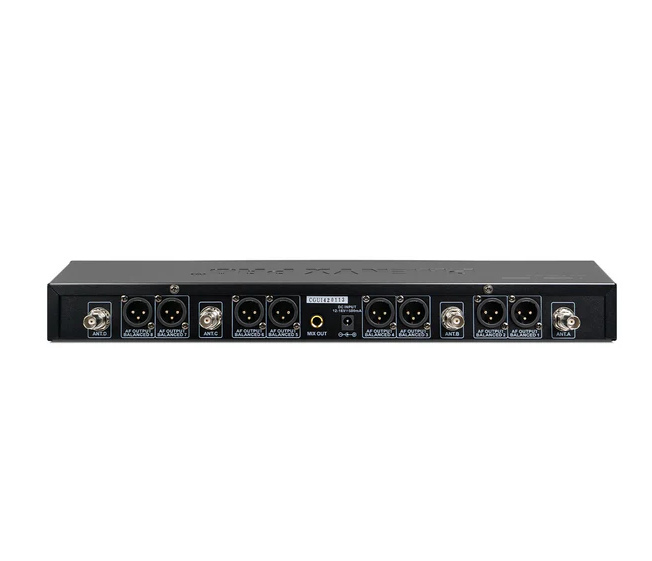

• Versatile Connectivity Options : Offers 8 balanced XLR outputs for individual channel routing and one mixed 1/4" output for quick, simplified connections. Comes with a 1/4” audio cable and a 6.35mm to 3.5mm adapter, ensuring compatibility with mixers, PA systems, amplifiers, and speakers.
• Quick Setup with Flexible Placement : Detachable antennas allow for compact storage. Removable rubber feet keep the receiver stable on flat surfaces and facilitate smooth rackmount setup. Includes 8 anti-rolling rings for color-coding your handheld microphones. Each system includes 16 AA batteries, so you can get started immediately without needing extra accessories.

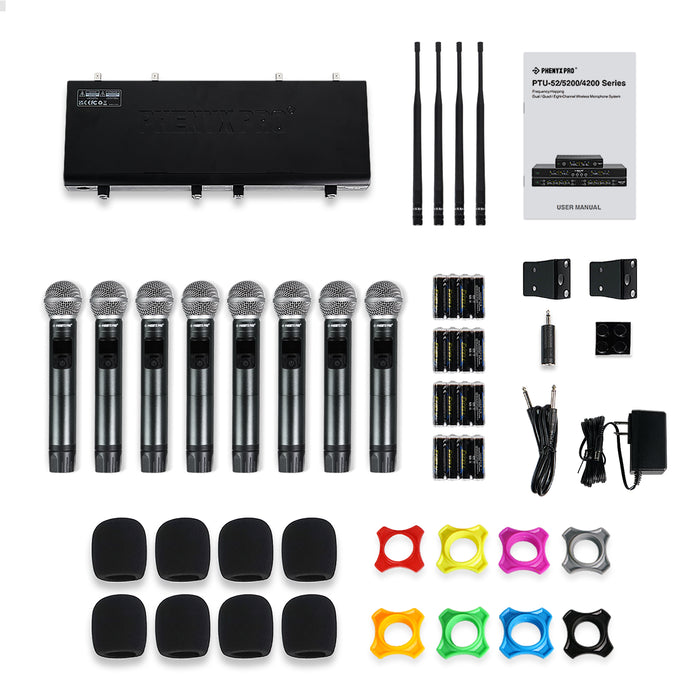

• All-in-One Package for a Range of Uses : The full kit includes: 1 x UHF receiver, 8 x handheld mics, 1 x power adapter, 1 x 1/4’’ audio cable, 1 x 6.35mm to 3.5mm adapter, 16 x AA batteries, 1 x user manual, 8 x anti-rolling rings, 8 x handheld mic windscreens, 4 x antennas, 4 x rubber feet. Ideal for a variety of scenarios such as karaoke, live performances, church services, and outdoor events.

SPECIFICATIONS

• Frequency Range : 500Mhz - 590Mhz

• Frequency Stability : <± 30 ppm

• Audio dynamic range : ＞90dB

• T.H.D : ＜0.5%

• Frequency Response : 40Hz~15KHz±3dB

• Output plug : XLR balance,1/4" unbalance plug

• output voltage : 1/4" 0-300mV

• Operation temperature : -10℃-+50℃

• PTU-52 Antenna jack : TNC50Ω

• PTU-5200 Antenna jack : BNC50Q

• Rated power : 4W

• PTU-52 S/N. : > 98dB(1KHz-A)

• PTU-5200 S/N. : >95dB(1KHz-A)

• mirror frequency rejection : > 80dB

• spurious reduction : > 80dB

• PTU-52 RF sensitivity : > 5dBu

• PTU-5200 RF sensitivity : > 7dBu

• Power voltage : DC13.5V, power adapter

• RF output power : ≤ 10mW

• Modulation mode : FM

• Frequency adjustment mode : automatic frequency adjustment

• Maximum frequency deviation : 75KHz

• Battery life : 8 hours
