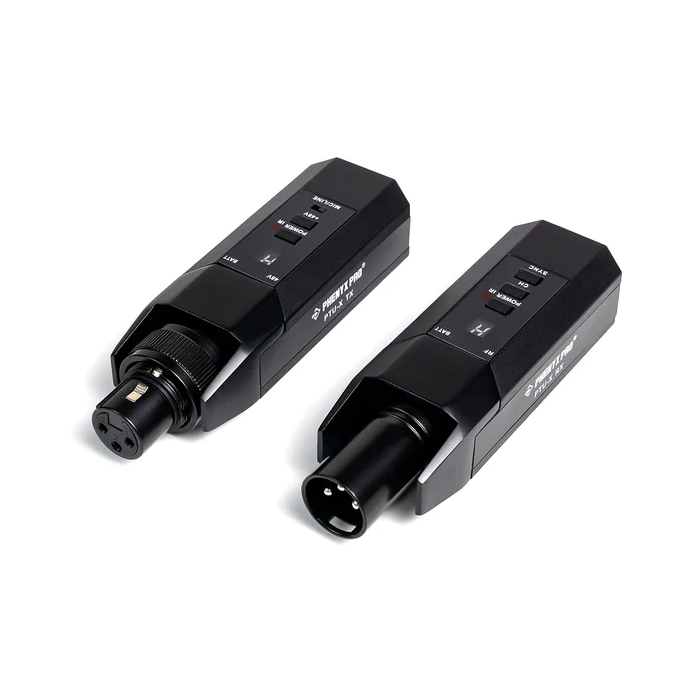

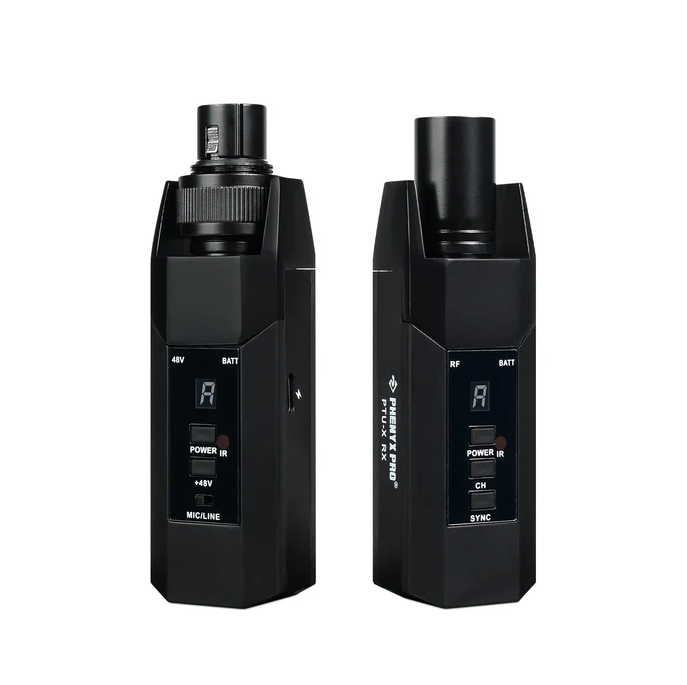

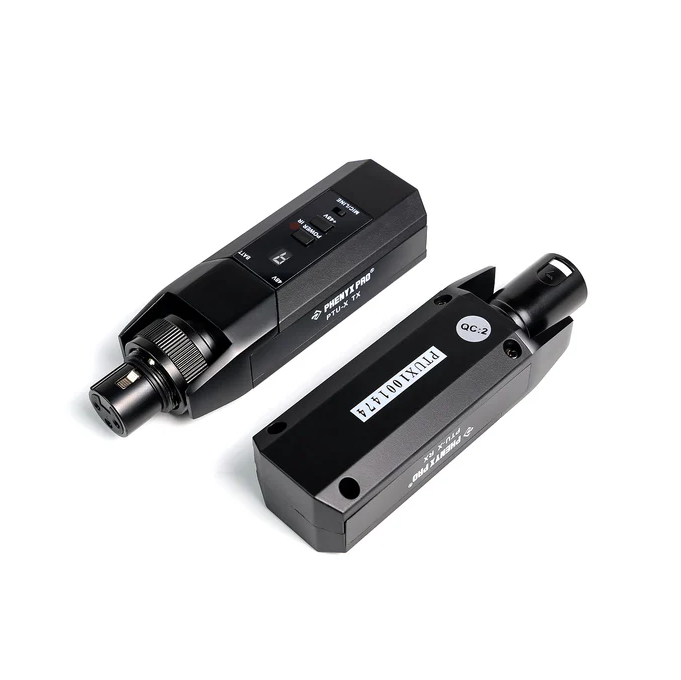

Phenyx Pro PTU-X Plug-on XLR Wireless Transmitter Receiver System w/ 16 UHF Frequencies

21The PTU-X is an innovative solution designed to convert wired microphones into wireless systems, making it suitable for a wide range of professional audio scenarios. Its advanced technology ensures efficient wireless transmission, allowing users to move freely without the constraints of cables. With exceptional sound quality, the PTU-X captures every detail of audio, providing a seamless wireless experience that enhances performances, presentations, and events. This versatile device meets the needs of musicians, speakers, and audio professionals alike, delivering reliability and clarity in various settings.

FEATURES

• Effortlessly convert your wired mic into a wireless mic system with our XLR wireless transmitter receiver and make your professional microphone wireless.

• Operating on a 500MHz UHF frequency, it avoids interference from Wi-Fi, Bluetooth, and 2.4GHz devices for stable performance.

• Offers 16 selectable frequencies and transmits sound flawlessly up to 100 feet (30 meters) for reliable use in live events.

• Boasts a dynamic range over 100dB, capturing everything from soft whispers to loud crescendos distortion-free.

• The 98dB signal-to-noise ratio reduces background noise, ensuring clear, detailed audio.

• Provides +48V phantom power, ideal for condenser microphones.

• Switch seamlessly between MIC mode for microphones and LINE mode for mixers or keyboards.

• Its quadrilateral prism shape ensures stability on flat surfaces, preventing accidental drops.

• The adjustable locking knob secures mics, reducing noise from movement.

• Powered by a 10,00mAh battery, it delivers up to 7 hours of continuous performance, perfect for musicians, pastors, and DJs.

SPECIFICATIONS

• Wireless Circuitry : Analog

• Operating Frequency Band : UHF 550-570 MHz

• Number of Frequency Points : Total 16, from 0-F

• Input Mode : MIC/LINE

• Frequency Response : 50 HZ-15 KHz±3 dB

• Dynamic Range : > 100 dB

• SNR (Signal-to-Noise Ratio) : > 98 dB

• RF Sensitivity : -100 dBm

• RF Power : 10 mw

• Operating Time : 7-8 Hours

• Operating Distance : 30 Meters

• Battery : 3.7 V Rechargeable Lithium Battery, 1000 mAh

• Impedance : Output Impedance: <600 Ω

• Gain Adjustment Range : MIC Mode: 0 dB / LINE Mode: -5 dB

• Maximum Output : 150-400 mw

• Battery : 3.7 V Rechargeable Lithium Battery, 1000 mAh

• Impedance : Input Impedance: 2 KΩ

• Gain Adjustment Range : MIC Mode: 0 dB / LINE Mode: -5 dB
