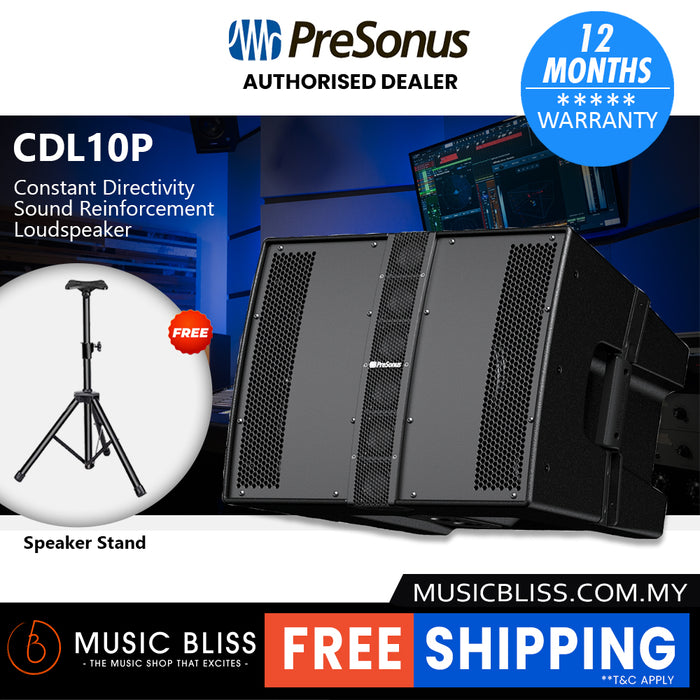

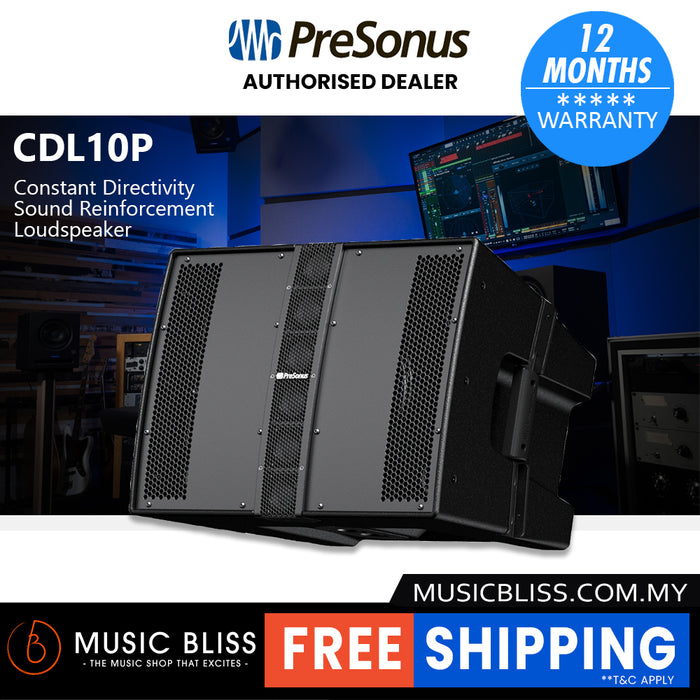

PreSonus CDL10P Constant Directivity Loudspeaker

Mobile DJs and veteran performers at Music Bliss absolutely love the PreSonus CDL10P for its super-consistent sound and effortless portability. This loudspeaker takes the impressive performance of the CDL12P speaker’s hybrid point source/line array technology and makes it lighter than ever. PreSonus’ patent-pending hybrid point source/line array design offers an astonishing 120-degree horizontal dispersion and 15 degrees of vertical coverage. You can even build a 6-box line array to achieve 90- x 120-degree dispersion. This loudspeaker comes equipped with a 10-inch woofer and six 2-inch high-frequency drivers, which provide a vivid sound and chest-thumping lows. Finally, the CDL10P includes onboard DSP to refine and optimize the sound to fit whatever venue you’re playing in.

FEATURES

• 10-inch, long-throw woofer delivers chest-thumping bass

• 6 x 2-inch high-frequency drivers provide full spectrum clarity

• Onboard DSP tailors the sound to your needs

• Low crossover frequency boosts audio fidelity and eliminates comb filtering

• 15° vertical directivity expands up to 90° with additional CDL10P units

• 120° horizontal dispersion fills the room with sound

• Steel grille protects your drivers from damage

• 35mm pole socket for tripod mounting or on top of a CDL Sub18 subwoofer

SPECIFICATIONS

• Powered:    Yes

• Power Configuration:    2-way

• LF Driver Size:    10"

• HF Driver Size:    6 x 2"

• LF Driver Power Amp:    1000W Peak, 250W RMS

• HF Driver Power Amp:    1000W Peak, 250W RMS

• Total Power:    Class D, 2000W Peak, 1000W Program

• Inputs:    1 x XLR

• Outputs:    1 x XLR

• Frequency Range:    48Hz-18kHz (±3dB)

• Crossover Frequency:    420Hz

• Maximum Peak SPL:    130dB SPL

• Horizontal Coverage Angle:    120 Degrees

• Vertical Coverage Angle:    15 Degrees

• Signal Processing:    Onboard DSP

• Enclosure Material:    Plastic, 1.2mm Steel Grille

• Mounting Options:    Floor Wedge, 35mm Pole Socket

• Power Source:    Locking Power In, Out

• Height:    14.37"

• Width:    19.6"

• Depth:    16.1"

• Weight:    55.1 lbs
