PreSonus NSB16.8 AVB Networked Stage Box (NSB16.8AVB)

PreSonus NSB16.8 AVB Networked Stage Box

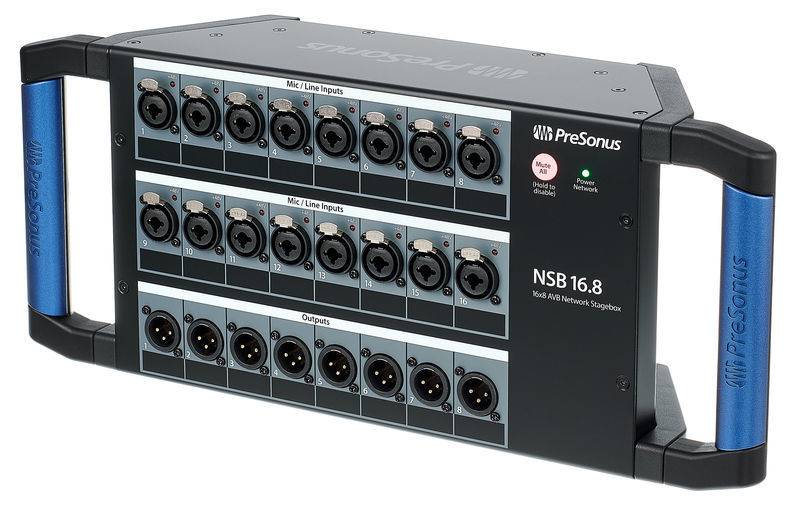

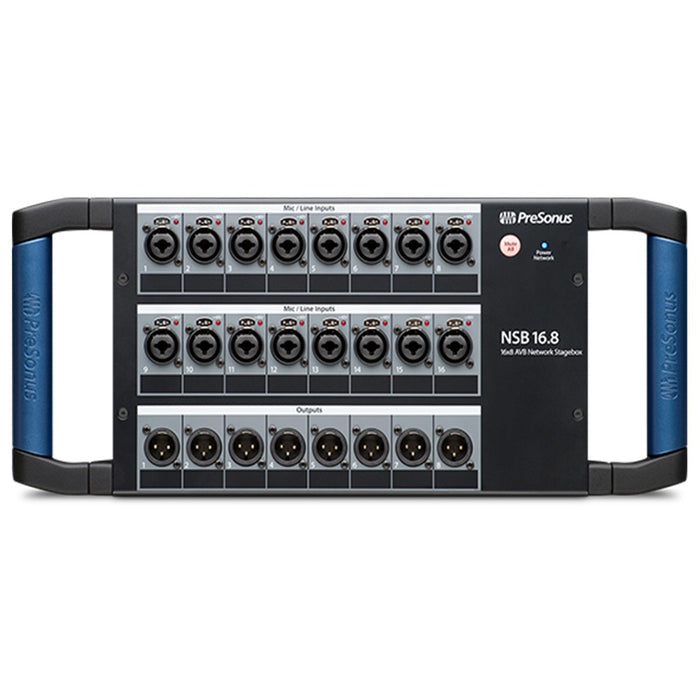

Bridge the gap between the band, FOH engineer, and audience with the PreSonus NSB16.8 AVB-networked stage box. Fitted with 16 locking combo mic/line inputs and eight locking XLR line outputs, the NSB16.8 features remote-controllable XMAX Class A preamps, gain compensation for shared inputs, and easy setup and control from a StudioLive Series III console and the free PreSonus UC Surface software. A 2-port AVB switch facilitates chaining multiple units and provides integration with PreSonus EarMix personal mixers.


  • Rugged stage box enclosure
  • 16 locking, remote controllable combo mic/line inputs
  • 16 remote-controllable XMAX preamps
  • Gain compensation for shared inputs
  • 8 locking XLR line outputs
  • 2 AVB ports with locking XLR Ethernet jacks
  • 32 x 8 AVB (16 direct input channels + 16 gain-compensated input channels)
  • Mute All button
  • Locking IEC power jack
  • 48V indicators
  • Easy setup and control from StudioLive Series III consoles and free PreSonus UC Surface software
  • Optional rack ears (available separately)

  • Type:Digital Stage Box
  • Compatibility:Presonus StudioLive Series III (AVB network)
  • Channels:16 x 8
  • Inputs - Mic Preamps:16 x XLR-1/4" combo (mic/line)
  • Phantom Power:Yes
  • Outputs - Main:8 x XLR
  • Data I/O:2 x EtherCon (AVB network)
  • Software:Presonus UC Surface control software
  • OS Requirements - Mac:Mac, iPad
  • OS Requirements - PC:Windows, Android
  • Power Source:Locking IEC AC jack
  • Height:7"
  • Depth:4.5"
  • Width:16.7"
  • Weight:6.2 lbs.

Dimension Packaging Weight : 6.0 kg
