PreSonus NSB32.16 AVB Networked Stage Box (NSB3216)

The PreSonus® NSB 32.16 networked stage box lets you put your analog I/O for your StudioLive® Series III digital mixer wherever you need it. Equipped with 32 digitally controlled XMAX mic preamps, 32 balanced line-level inputs, 16 analog outputs, and 2 stereo AES3 digital outputs, the NSB 32.16 integrates seamlessly into StudioLive Series III digital mixers with a single Ethernet connection. Remote control input trims, phantom power, and more directly from your StudioLive Series III console or from Universal Control remote mixing software on your tablet or laptop.

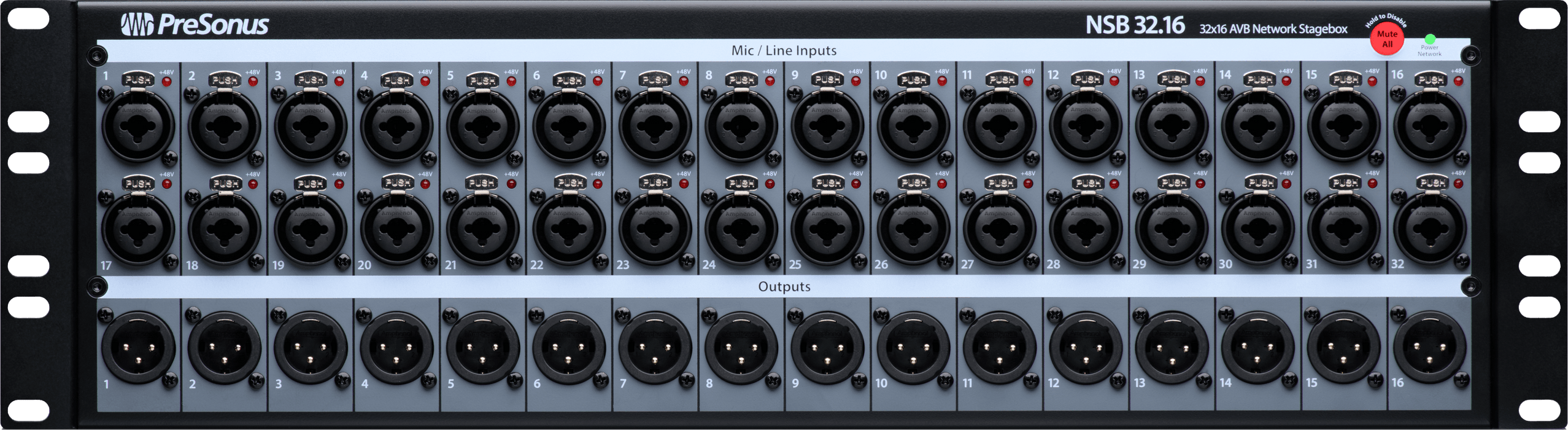

The NSB 32.16 networked stage box is loaded with 32 versatile locking combo jacks. Connect your microphones to the digitally controlled XMAX preamps or use the balanced ¼-inch TRS inputs to connect your line-level devices - the NSB 32.16 can handle it all. The inputs can be sent to any StudioLive Series III digital mixer on the network, and thanks to gain compensation, every mixer gets individual gain control without affecting the front-of-house mix.

FEATURES

• 32x16 network stage box for StudioLive Series III console mixers

• 32 locking digitally controlled XMAX mic/line inputs with gain compensation for shared streams

• 16 XLR line outputs

• 2 Stereo AES3 Digital Outputs

• Easy configuration from StudioLive Series III console mixers and Universal Control

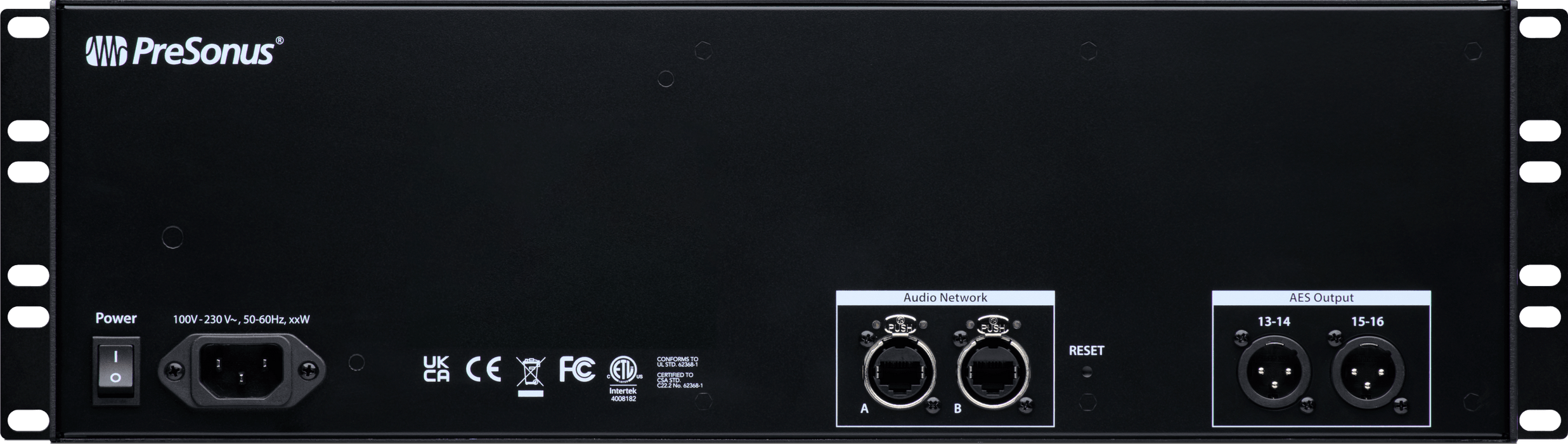

• Built-in 2-port AVB switch with locking Ethernet connections for easy point-to-point and daisy-chain network configurations

• Rugged all-metal stage box enclosure

• Included multi-position rack ears

• Compatible with stage pockets from Ace Backstage

SPECIFICATIONS

• Type:    Digital AVB Stage Box

• Compatibility:    Presonus Studio Live Series III Digital Mixers

• Channels:    32 x 16

• Inputs - Mic Preamps:    32

• Phantom Power:    32

• Inputs - Line:    32

• Outputs - Main:    16 x XLR

• Outputs - Digital:    2 x XLR (AES/EBU)

• Data I/O:    2 X Ethernet (AVB Network)

• Rackmountable:    Yes

• Power Source:    Standard IEC AC cable

• Height:    5.25"

• Depth:    5.25"

• Width:    19"
