PreSonus NSB8.8 AVB Networked Stage Box (NSB88)

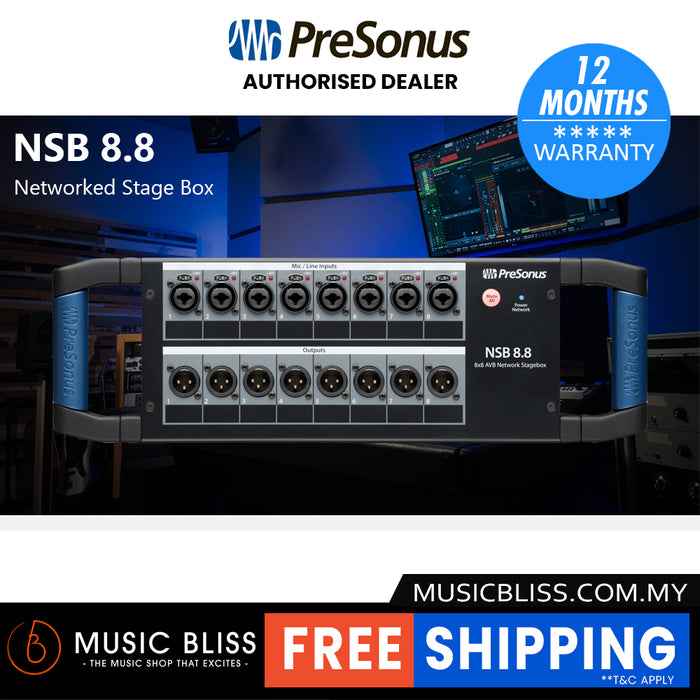

Designed to work seamlessly with PreSonus® StudioLive® Series III mixers, the PreSonus NSB 8.8 stage box offers 8 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios. All inputs can be controlled from a StudioLive Series III console and from free PreSonus Universal Control software. All eight outputs employ locking XLR jacks. A built in 2-port AVB switch lets you daisy-chain multiple units. A rugged steel chassis with sturdy handles and a stage box form factor allow the NSB 8.8 to sit well on the stage and survive the rigors of the road. The unit can be rack mounted with an optional rack-ear kit.

FEATURES

• Rugged stage box enclosure with handles

• 8 locking, mic/line inputs and 8 locking XLR outputs

• 8 remote-controllable XMAX preamps
  - Gain compensation for shared inputs

• 2 AVB ports with locking XLR Ethernet jacks

• 16x8 AVB (8 direct input channels + 8 gain compensated input channels)

• Easy setup and control from Series III mixers and free PreSonus Universal Control software

• Optional Rackmount Kit available

SPECIFICATIONS

• Type:    Digital Stage Box

• Compatibility:    Presonus StudioLive Series III (AVB network)

• Channels:    8 x 8

• Inputs - Mic Preamps:    8 x XLR-1/4" combo (mic/line)

• Phantom Power:    Yes

• Outputs - Main:    8 x XLR

• Data I/O:    2 x EtherCon (AVB network)

• Software:    Presonus UC Surface control software

• OS Requirements - Mac:    Mac, iPad

• OS Requirements - PC:    Windows, Android

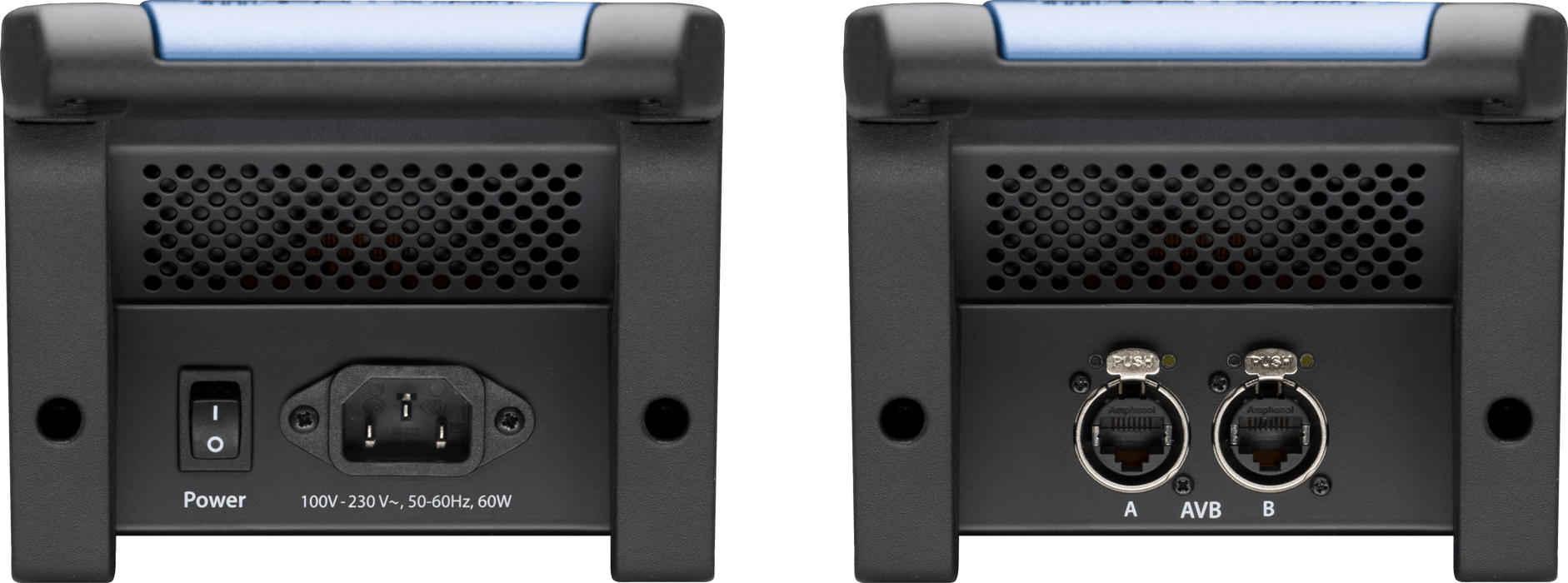

• Power Source:    Locking IEC AC jack

• Height:    5.2"

• Depth:    4.5"

• Width:    16.7"

• Weight:    5.4 lbs.
