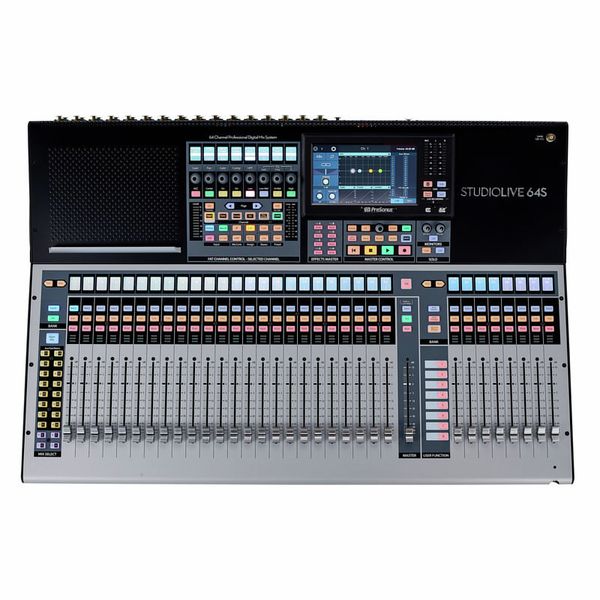

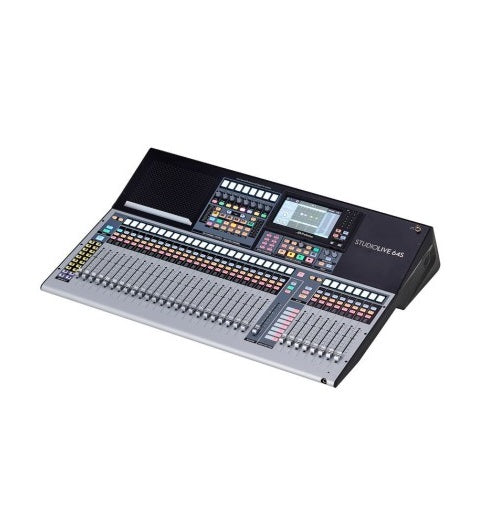

PreSonus StudioLive 64S Series III 64-channel Digital Mixer

The StudioLive 64S is a powerhouse — it’s PreSonus’s most formidable offering yet. This 64-channel digital mixer boasts a quad-core FLEX DSP engine with enough muscle to drive 526 simultaneous processors, and then some. What’s more, its FLEX FX multi-effects processor vaunts eight slots of reverb emulations and delays with eight dedicated effects buses. Benefit from easy expandability thanks to built-in AVB networking. Enjoy versatile operation by virtue of the 64S’s 32 Flex Mixes. Shape and polish each channel to perfection courtesy of PreSonus’s lauded Fat Channel processing. The PreSonus StudioLive 64S includes a comprehensive software suite, which enables you to make top-flight recordings right from the get-go.

FEATURES

• 64-channel digital mixing console with built-in SD card recorder
• Quad-core FLEX DSP engine possesses enough processing muscle to run 526 simultaneous processors, 43 mix buses, and 76 mixing channels
• Record and play back up to 64 channels via USB — almost twice that of previous generations
• Supports AVB over Ethernet for use with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, and SW5E AVB switches
• Built-in SD card support for multitrack recording and virtual soundchecks
• Main Left, Right, and Mono/Center buses with per-channel mono send level and center divergence control
• Fully recallable XMAX preamps with ultra-low noise floor
• 33 touch-sensitive motorized faders allow you to mix with precision
• 24 DCA groups help you manage complex productions with high channel counts
• FLEX FX multi-effects processor vaunts 8 slots of reverb emulations and delays with 8 dedicated effects buses
• Fat Channel processing provides vintage EQ and compression options for each channel
• Better visual feedback than ever, with full-color touchscreen and channel scribble strips
• Advanced scene management helps you manage complex mixing tasks more efficiently
• 32 Flex Mixes can be used as aux mixes, subgroups, or matrix mixes
• DAW control with advanced Studio One integration, MCU emulation for Logic, and HUI emulation for Pro Tools
• Software package includes UC Surface 2 touch-control software (Mac/PC/Android/iOS), Capture recording software (Mac/PC), Studio One Artist DAW software (Mac/PC), QMix personal monitoring app (iOS/Android)
• Packaged with the complete Studio Magic Plug-in Suite — a collection of awesome plug-ins by Maag Audio, Lexicon, Arturia, and others

SPECIFICATIONS

• Type:Digital Mixer
• Channels:64 channels, 76 mix channels
• Inputs - Mic Preamps:32 x XLR-1/4" combo (mic/line)
• Phantom Power:Switchable per channel
• Inputs - Line:1 x Dual RCA Stereo (tape), 4 x 1/4" (2 x stereo aux in)
• Outputs - Main:2 x XLR (main out), 1 x XLR (mono/center), 2 x 1/4" (monitor)
• Outputs - Other:16 x XLR (mix out), 1 x Dual RCA Stereo (tape)
• Outputs - Digital:1 x XLR (AES/EBU)
• Busses/Groups:32 x FlexMix Buses (aux, subgroup, matrix), 43 total mix buses, 24 x DCA groups
• Talkback:1 x XLR (phantom power)
• Data I/O:1 x Locking Ethernet (AVB audio network), 1 x RJ45 (network control)
• USB:1 x Type B (64 x 64)
• Computer Connectivity:USB 2.0
• Bluetooth:v4.1
• Headphones:1 x 1/4"
• Faders:33 x Touch-sensitive motorized faders
• A/D Resolution:24-bit/48kHz
• Effects:FLEX FX Multi-effects processor, 8 x effects slots, 8 x effects buses
• Signal Processing:Fat Channel plug-ins, 10 x EQs, 10 x Compressors
• Transport Controls:Yes
• DAW Control:Advanced Studio One, MCU Logic emulation, HUI Pro Tools emulation
• Screen:7" Touchscreen
• Storage:SD card recorder (34 track)
• Software:Studio One Artist, UC Surface (Mac, Windows, Android, iPad), QMix-UC App (iOS, Android), Presonus Capture
• Power Source:Standard IEC AC cable
• Height:6.51"
• Depth:22.97"
• Width:32.37"
• Weight:37.2 lbs.
