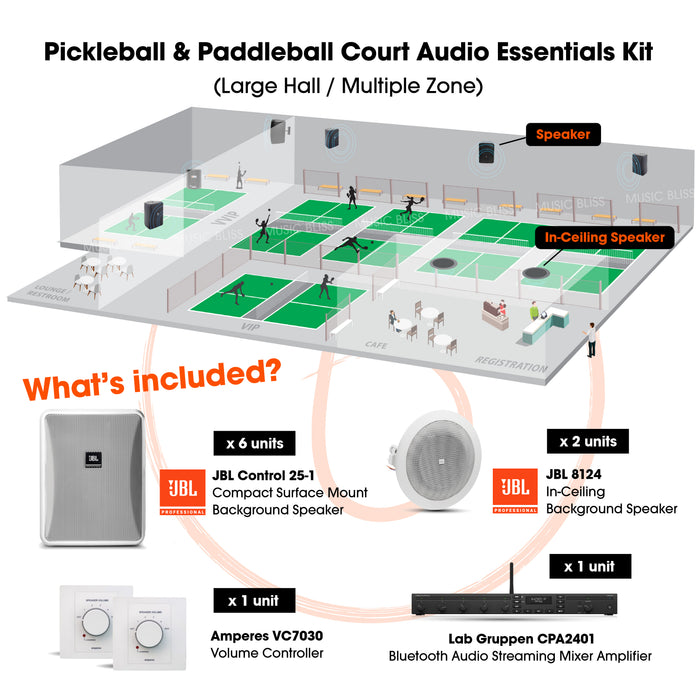

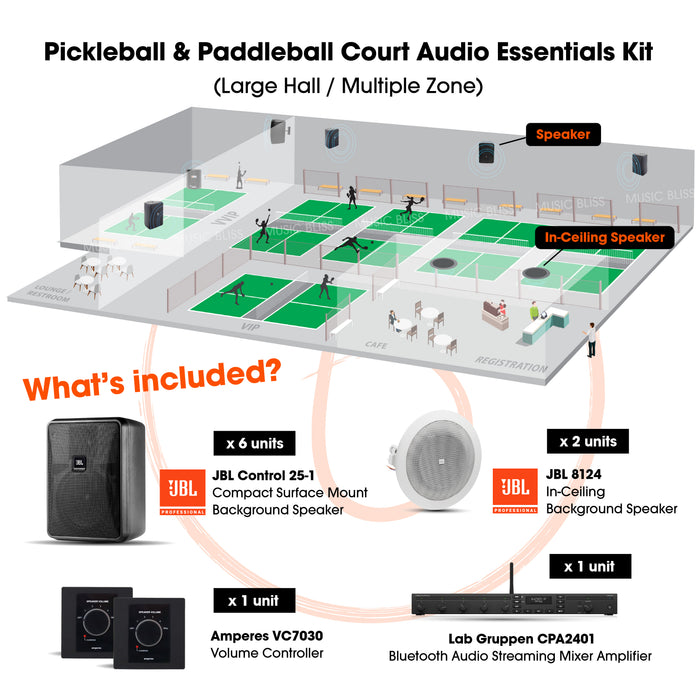

JBL Sound System for Pickleball & Paddleball Courts – Pro Court Speaker Setup Malaysia

FEATURES

• 6 x JBL Control 25-1 Surface-Mount Speakers
• 2 x JBL 8124 4" Full-range In-Ceiling Loudspeaker
• 1 x Lab Gruppen CPA2401 240 Watt Commercial Mixer Amplifier
• 1x Amperes VC7030 Volume Controller
• 1x Amperes ES9090 Surface Back Box Enclosure


Our Service :

• On-site Assessment
• Professional Consultation
• Customized Solutions
• Installation (Pricing based on venue dimensions)
• Audio System Calibration, Alignment & Performance Optimization
• System Usage & Operations Training

JBL Control 25-1 Surface-Mount Speakers :

• 5.25-inch woven fiberglass cone woofer yields excellent low-end response
• 0.75-inch PEI-diaphragm tweeter with fluid cooling delivers great-sounding high frequencies
• 60Hz-20kHz frequency response for rich, high-fidelity sound
• Wide 100-degree x 100-degree coverage fills the entire area with sound
• Built-in InvisiBall hardware mounts almost anywhere
• Weather-resistant enclosure and transducers
• Contemporary design looks great anywhere

JBL 8124 4" Full-range In-Ceiling Loudspeaker :

• 20W full-range ceiling speaker
• 4” driver delivers crystal-clear sound that spans 60Hz–18kHz
• 93dB sensitivity yields maximum sound levels using minimum amplifier power
• 6W transformer for use on 70V/100V distributed speaker lines
• Features a stylish, contemporary look that enhances any décor

Lab Gruppen CPA2401 240 Watt Commercial Mixer Amplifier :

• For Commercial & Industrial Applications
• 240W, 4/8 Ohms + 70/100V Operation
• 3 Mic/Line + 2 Line Inputs
• Switchable High-Pass Filter
• Direct Drive, Constant Power Technology
• GPI Remote Volume via RJ45 Connector
• Individual Master Volume + Treble/Bass
• USB Media Player with LCD Display
• Euroblock + RCA Inputs, Block Outputs
• Includes Mounting Hardware and Brackets

Amperes VC7030 Volume Controller :

VC7000 Series Volume Controllers provides 5W to 150W 100V line control with a 4-wire setup and 24V DC override. Available in white or black. Custom colours available on request.

• 86 x 86mm British-style faceplate with UV protection
• Supports 4-wire installation and large terminal block for easy wiring
• Built-in override relay with LED indicator
• 5-step volume control with OFF position

Amperes ES9090 Surface Back Box Enclosure :

Back enclosures with 50 mm depth for volume controllers and patch panels.

• ES9090 : 86 x 86 mm surface mount (Metal)
