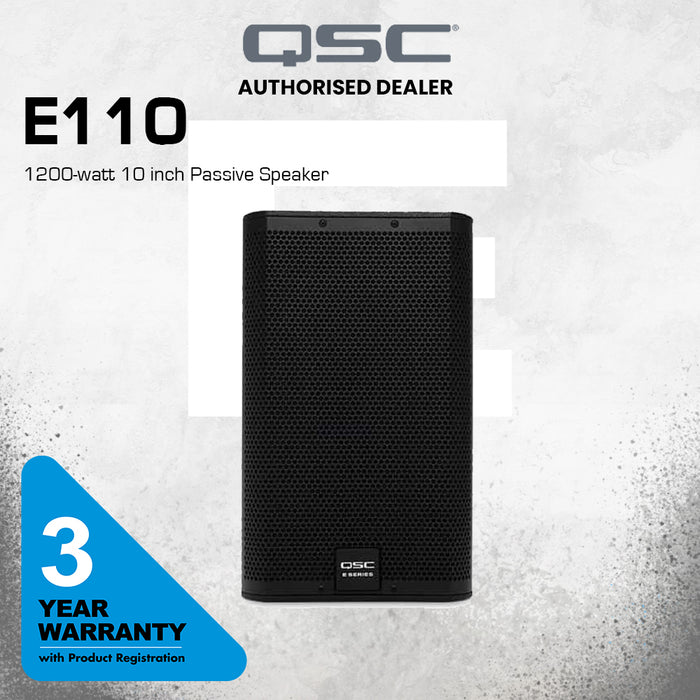

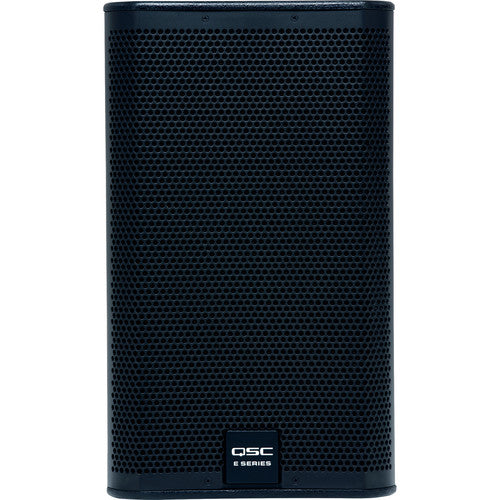

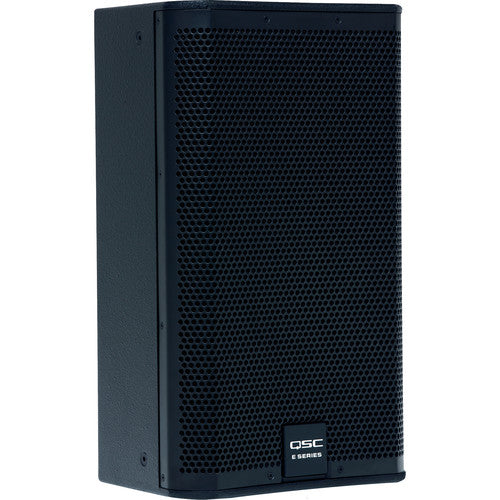

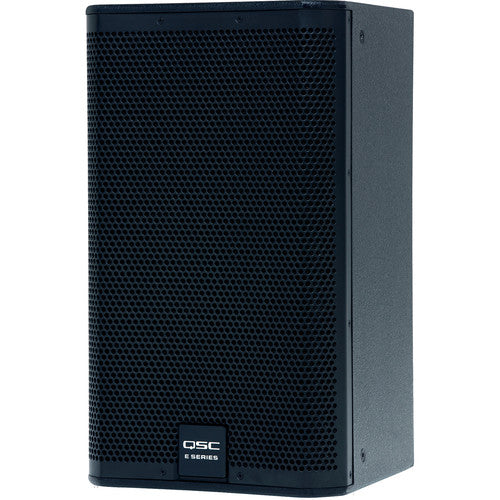

QSC E110 1200-watt 10 inch Passive Speaker - Black

The QSC E110 PA speaker delivers top-tier sound reproduction. This trapezoidal, two-way speaker comes loaded with a 10-inch die-cast aluminum frame woofer and delivers abundant bass, thanks to frequency-shading topology. Interference is a non-issue, due to a well-tuned HF crossover transition. It will provide your entire audience with ample coverage via a 85-degree DMT waveguide and 1.75-inch compression driver. And if you use it as a wedge monitor, the E110 is angled up at a 55-degree angle, allowing it to be placed near the performer onstage. If you need a high-powered multipurpose speaker, the QSC E110 fits the bill.

FEATURES

• Trapezoidal, 2-way speaker with 10" die-cast aluminum frame woofer
• Frequency-shading topology delivers abundant bass
• Well-tuned HF crossover transition eliminates interference
• 85-degree DMT waveguide and 1.75" compression driver offer excellent coverage
• Pairs well with GXD and PLD power amplifiers
• Suitable for main PA and stage monitor use
• Match with a TouchMix digital mixer to benefit from onboard DSP and factory-tuned presets
• Rugged tour-grade textured finish and perforated steel grill


SPECIFICATIONS

• Powered : No

• Power Configuration : 2-way

• LF Driver Size : 1 x 10" die-cast aluminum woofer with 2.5" voice-coil

• HF Driver Size : 1 x 1" HF compression driver, 1.75" voice-coil

• Impedance: 8 ohms

• Power Rating : 300W Continuous

• Total Power : 1200W Peak

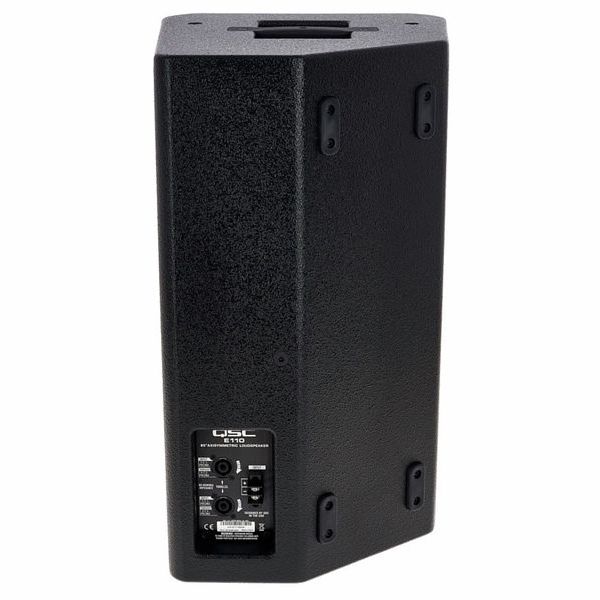

• Inputs: 2 x speakON (NL4), 1 x barrier strip

• Frequency Range : 50Hz-20kHz (-10 dB)

• Frequency Response : 68Hz-20kHz (-6 dB)

• Crossover Frequency :1.8kHz, full-range only

• Maximum Peak SPL: 126 dB SPL @ 1m

• Horizontal Coverage Angle : 85 Degrees (conical DMT)

• Enclosure Material: Plywood with black texture paint finish

• Mounting Options : Pole Mount with 1.37" socket, Floor Wedge, 4 x M8 Fly Points

• Height : 22"

• Width  : 13"

• Depth :    13"

• Weight : 44 lbs.
