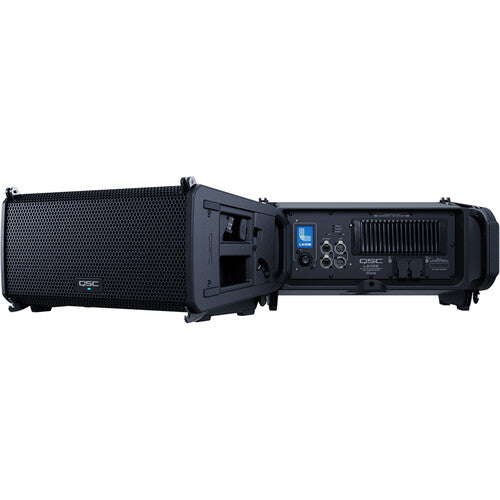

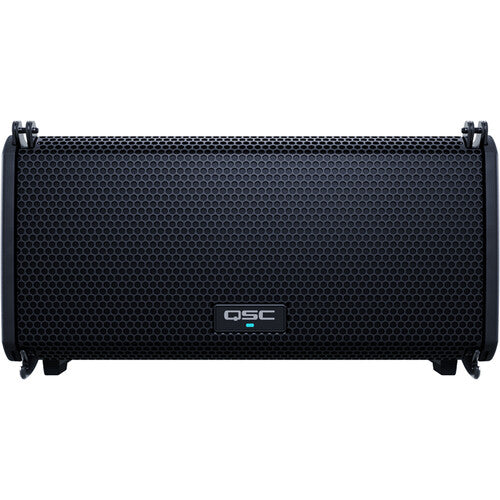

QSC LA108 1300W 8-inch Active Line Array Speaker

The QSC LA108 is a next-gen active line array speaker that packs intelligent, leading-edge digital processing into a lightweight, easy-to-deploy package. This 1,300-watt, bi-amped loudspeaker boasts superb-sounding neodymium drivers, yielding an impressive frequency response and distortion-free playback at high SPLs. The LA108's LEAF waveguide ensures wide, uniform coverage, while its ALP design and onboard Dante networking guarantee outstanding coherence and lock-tight interoperability with other QSC loudspeakers. You get industry-leading, single-operator installation thanks to RapidDeploy rigging, QSC's foolproof AWARE DSP system, and a generous range of deployment options. Moreover, QSC's SysNav app enables you to design, configure, control, and monitor your entire array with unprecedented simplicity. A universal power supply rounds out the LA108's ample feature set. A prime choice for portable applications, rental companies, and small- to medium-sized installations, the QSC LA108 takes all the guesswork out of line array configuration and deployment.

VIDEO

FEATURES

• Driven by an efficient, 1,300W Class D amplifier with Power Factor Correction and low AC consumption
• 8-inch neodymium LF driver and 1.75-inch HF compression driver yield an impressive 62Hz–20kHz frequency response
• Delivers a high, undistorted 134dB maximum peak SPL
• LEAF (Length Equalized Acoustic Flare) waveguide ensures uniform 100° x 15° coverage with exceptional throw
• ALP (Acoustic Linear Phase) design delivers outstanding coherence between QSC speakers deployed in the same audio system
• Dante networking supplies lock-tight interoperability with compatible equipment, including integration into the Q-Sys ecosystem

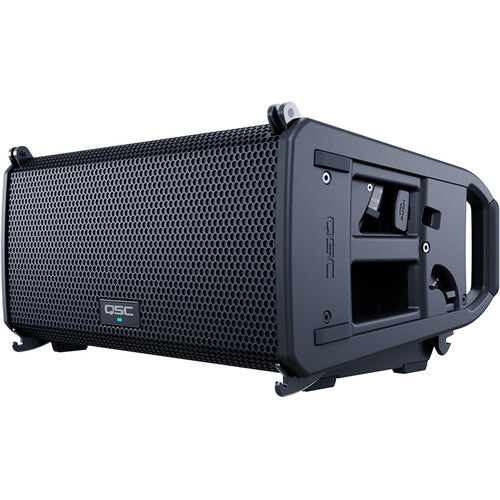

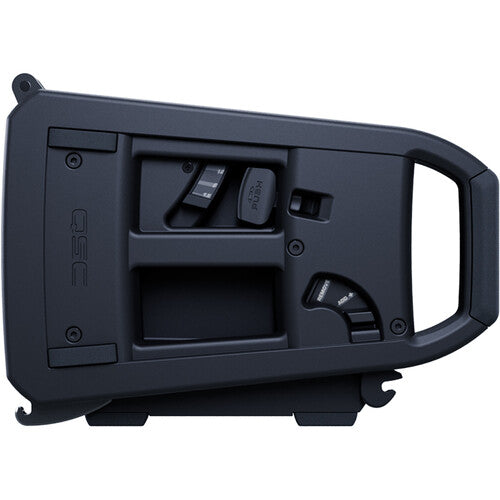

• RapidDeploy rigging technology guarantees fast, easy deployment — no additional tools or hardware required
• Conforms to OSHA guidelines for single-operator installation
• AWARE (Automatic Wireless Array Recognition) system negates the need for complicated line-array tuning and adjustments
• Fly up to 6 LA108s with an array frame, ground stack up to 4 LA108s over an LS118 sub, or mount up to 3 LA108s on a stand or pole
• SysNav app enables you to design, configure, control, and monitor your entire array
• Universal power supply, 100–240 VAC, 50–60Hz
• Ideal for portable applications, rental companies, and small- to medium-sized installations

SPECIFICATIONS

• Powered:Yes
• Power Configuration:Bi-amped
• LF Driver Size:8" woofer
• HF Driver Size:1.75" compression driver
• LF Driver Power Amp:1000W Class D
• HF Driver Power Amp:300W Class D
• Total Power:1300W Peak

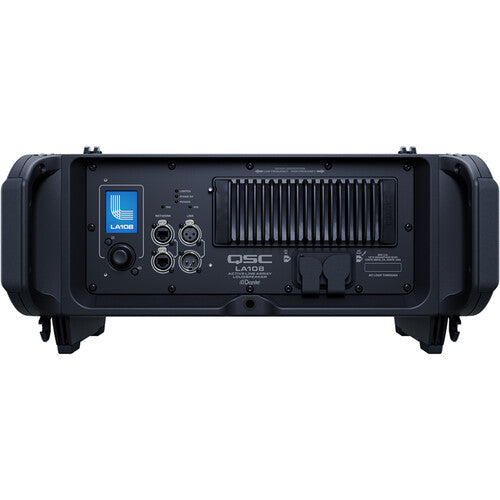

• Inputs:1 x XLR"
• Outputs:1 x XLR" (thru)
• Data I/O:2 x EtherCON (Dante, QSC SysNavTM In/Thru))
• Frequency Range:57Hz-20khz (-10 dB)
• Frequency Response:62Hz-20kHz (-6dB)
• Maximum Peak SPL:134 dB SPL @ 1m
• Horizontal Coverage Angle:100 Degrees
• Vertical Coverage Angle:15 Degrees
• Enclosure Material:Impact resistant ABS
• Mounting Options:Pole, Floor, Fly
• Power Source:PowerCON TRUE1 In/Out
• Height:10.7"
• Width:20.4"
• Depth:14.7"
• Weight:30.1 lbs.
