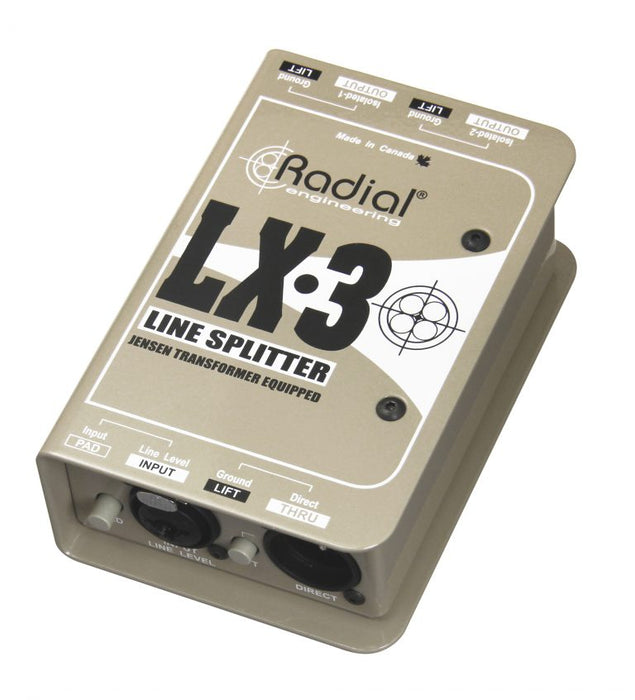

Radial Engineering LX3 3-channel Balanced Line Splitter with Isolation (LX-3 / LX 3)

Gear shootouts and signal stacking just got heaps more reliable with the Radial Engineering LX3 Line Splitter. This unit routes a single balanced, line-level signal (either XLR or TRS) to three destinations simultaneously. Now you can send mic and line signals dry into your DAW and through your favorite hardware to blend signals after the fact. You can also capture a mic into three preamps simultaneously for later selection. The Radial Engineering LX3 is loaded with a Jensen transformer for exceptional audio quality. Isolated outputs and ground lifts keep signals copacetic. An input pad keeps hot signals from overloading your gear. And a 14-gauge steel chassis helps the Radial Engineering LX3 survive drops on the road and still perform reliably every night.

FEATURES

• Routes a balanced, line-level signal to three destinations
• Perfect for gear shootouts and signal stacking
• XLR/TRS combo jack accepts microphone and stereo instrument cables
• Send instrument signals dry and wet into your DAW for blending!
• Record mics through three preamps for later selection!
• Input pad keeps hot signals from overloading your gear
• Isolated outputs and ground lift switches eliminate ground loop noise
• Passive design requires no power
• 14-gauge steel chassis keeps unit performing reliably night after night

SPECIFICATIONS

• Type:Passive Line Splitter
• Channels:1 x 3
• Inputs:1 x XLR-1/4" combo
• Outputs:1 x XLR (thru), 2 x XLR (isolated out)
• Height:2.0"
• Width:3.3"
• Depth:5.0"
• Weight:1.5 lbs.
