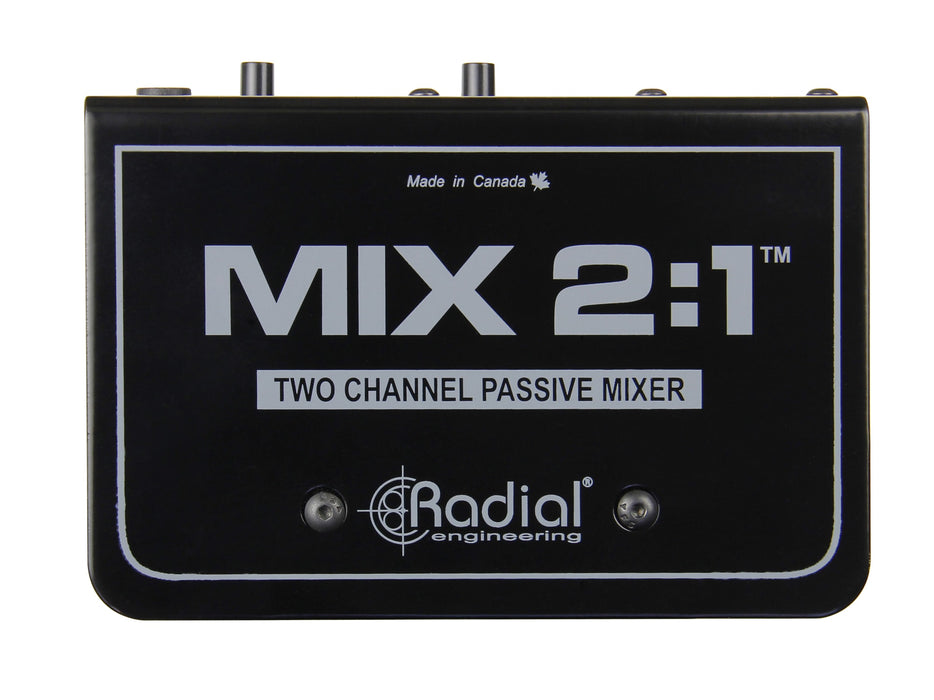

Radial Engineering Mix 2:1 Two-Channel Summing Mixer

The MIX 2:1 is a simple summing mixer that makes merging two audio signals easy. Whether you need to sum mic or line level signals, or the outputs of two separate devices, the MIX 2:1 allows you to do so without noise or coloration of the sound. XLR and ¼" TRS inputs are provided for easy connectivity, with a single XLR output to feed your destination device. Level controls are available for each input that can be bypassed entirely to sum the left and right outputs of a mixing console or recording interface. A 180° polarity reverse switch opens up other options such as summing a snare top and bottom mic together to a single preamp, and ground lift switches help eliminate buzz and hum from ground loops.

FEATURES

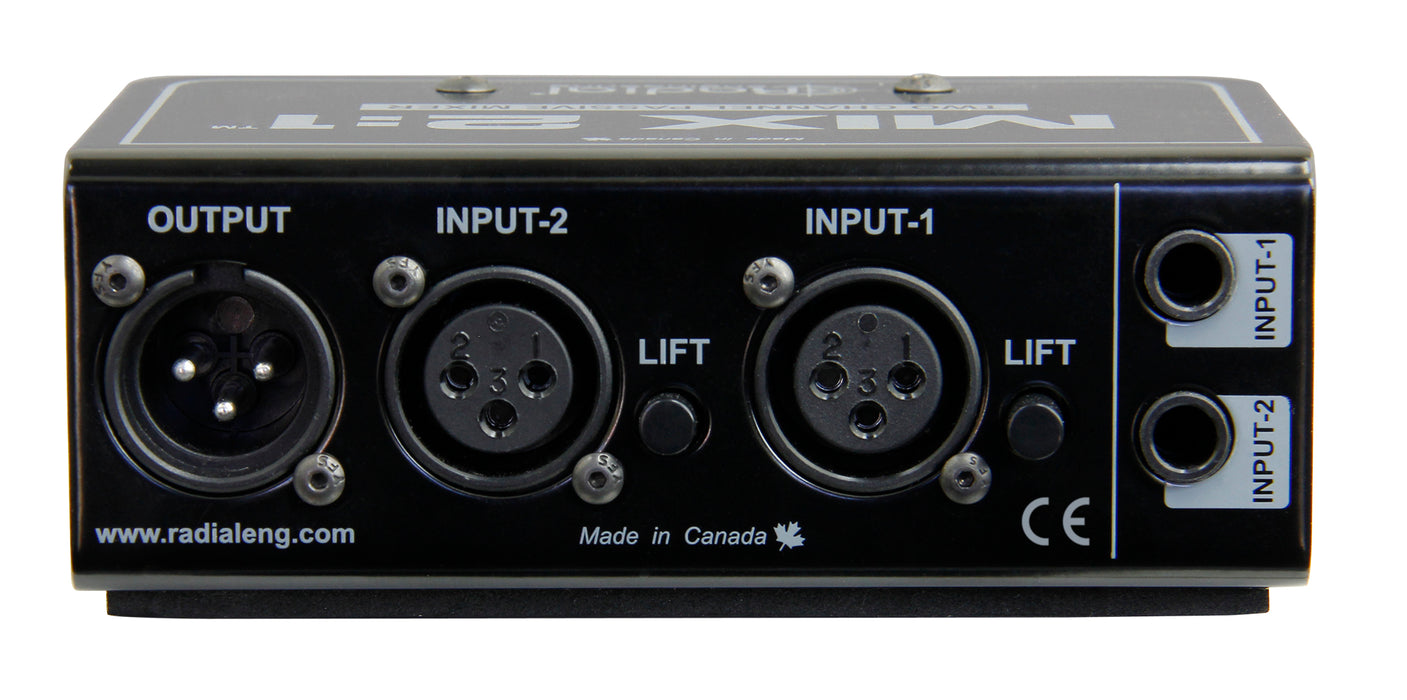

• Passive 2-channel mixer with XLR and 1/4" inputs
• Sums 2 channels to a single mono XLR output

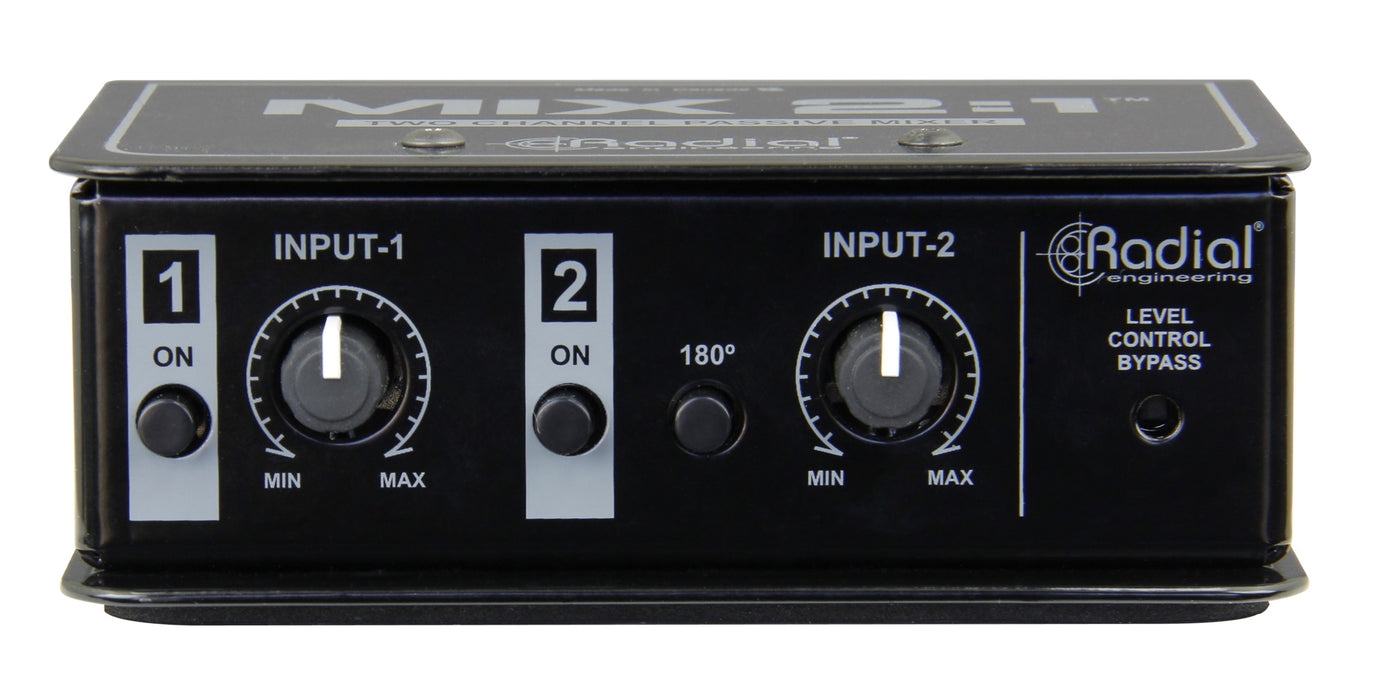

• Use input controls to balance your mix or bypass level controls for an equal mix
• Polarity-reverse switch solves phase cancellation issues
• Ground-lift switches help reduce hum and buzz caused by ground loops
• High-fidelity audio with ultra-low noise floor
• Ultra-rugged construction for long-term reliability

SPECIFICATIONS

• Type: Summing Mixer
• Channels: 2:1
• Inputs - Line: 2 x XLR, 2 x 1/4"
• Outputs - Main: 1 x XLR
• Power Source: Passive
• Height: 1.85"
• Width: 5"
• Depth: 3.25"
