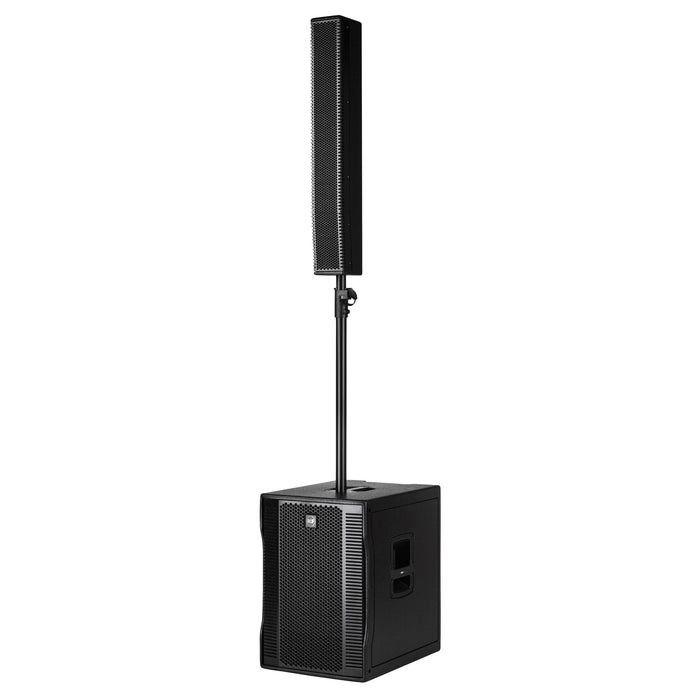

RCF EVOX 12 Active Two-Way Array with 15" Subwoofer (EVOX12)

EVOX 12 is the most powerful line-source in its class and offers a particularly profound and dynamic reproduction at high levels due to the built-in 1400W power amplifier. The top section has eight high performance neodymium 4 “full-range transducers with a phase plug. As a result, the EVOX 12 has a significantly increased low-mid playback at a constant level with a wide dispersion for the highs. The 15” subwoofer delivers powerful bass sound to reinforce a big party or the kick drum of a live band. Despite high performance, the enclosure is very compact, and thanks to integrated wheels and extendable handle very easy to transport.

FEATURES

• 1400 Watt
• 130 dB max SPL
• 40 Hz 20 kHz frequency response
• 15" Woofer
• 8 x 4" neodymium full-range woofer
• 90° x 30° slightly tilted pattern control
• Innovative DSP processing
• Pole mountable, easy set-up and transportation

SPECIFICATIONS

• Acoustical specifications
  - FREQUENCY RESPONSE : 40 Hz ÷ 20000 Hz
  - MAX SPL @ 1M : 130 dB
  - HORIZONTAL COVERAGE ANGLE : 90°
  - VERTICAL COVERAGE ANGLE : 30°


• Transducers
  - FULLRANGE : 8 x 4.0'', 1.0'' v.c
  - WOOFER : 15'', 3.0'' v.c


• Input/Output section
  - INPUT SIGNAL : bal/unbal
  - INPUT CONNECTORS : XLR, Jack
  - OUTPUT CONNECTORS : XLR
  - INPUT SENSITIVITY : -2 dBu/+4 dBu


• Processor section
  - CROSSOVER FREQUENCIES : 180 Hz
  - PROTECTIONS : Thermal, RMS
  - LIMITER : Soft Limiter
  - CONTROLS : Volume, EQ


• Power section
  - TOTAL POWER : 1400 W Peak, 700 W RMS
  - HIGH FREQUENCIES : 400 W Peak, 200 W RMS
  - LOW FREQUENCIES : 1000 W Peak, 500 W RMS
  - COOLING : Convection
  - CONNECTIONS : VDE


• Standard compliance
  - CE MARKING : Yes


• Physical specifications
  - CABINET/CASE MATERIAL : Baltic birch plywood
  - COLOR : Black


• Size
  - HEIGHT : 2200 mm / 86.61 inches
  - WIDTH : 410 mm / 16.14 inches
  - DEPTH : 560 mm / 22.05 inches
  - WEIGHT : 36.4 kg / 80.25 lbs
