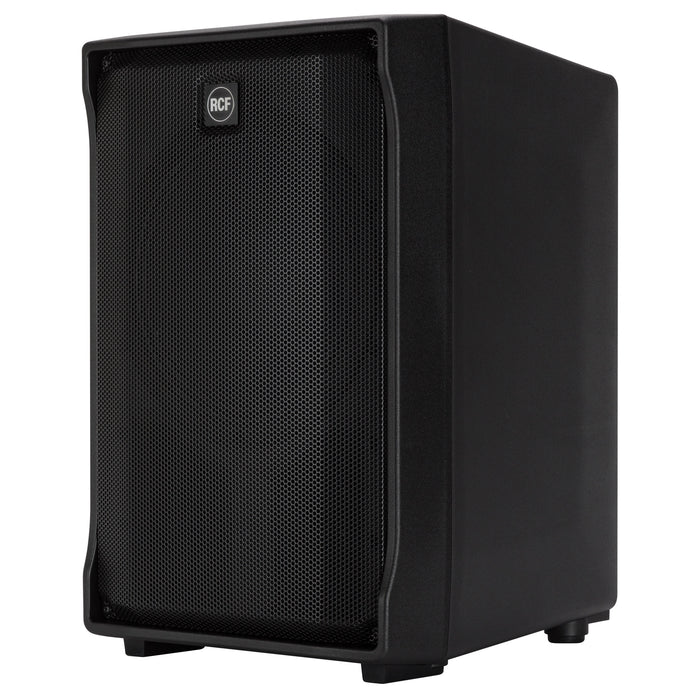

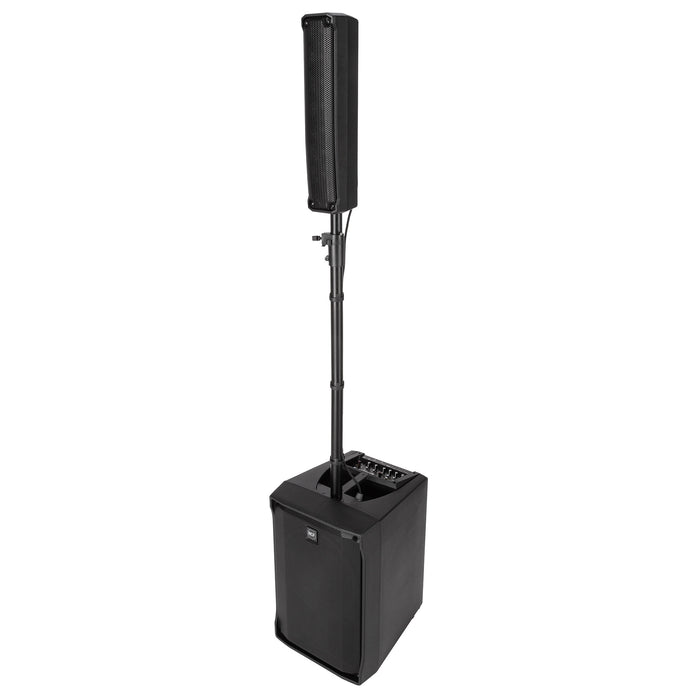

RCF EVOX JMIX8 Active 12" 2-Way 1400W Portable Line Array PA System with 8-Input Mixer - Black (EVOXJMIX8)

Taking the EVOX J Series one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input,the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer

FEATURES

• 128 dB Max SPL
• 1400 Watt 2-way power

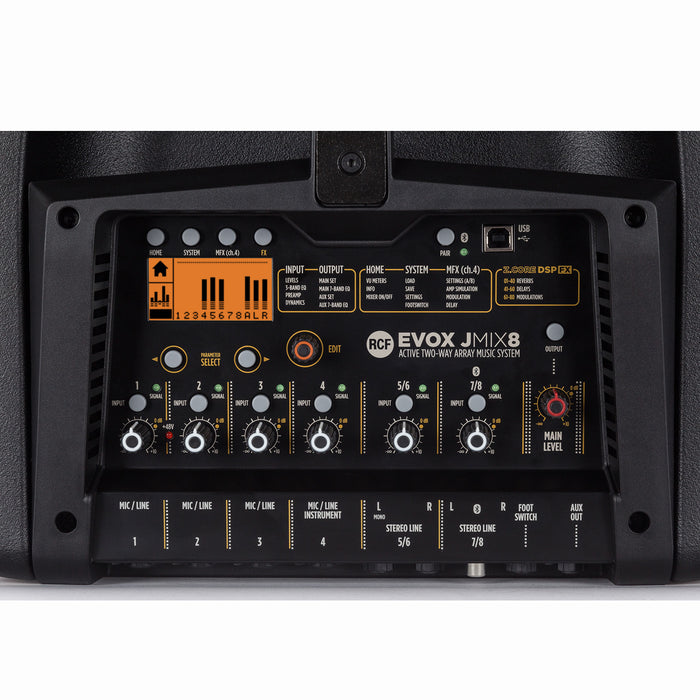

• 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
• DSP Processing with FiRPHASE
• 12" woofer, high power 2.5" voice coil
• 8 x 2" ultra compact fullrange 1.0" voice coil
• 2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
• 24,4/53.8 kg/lbs

SPECIFICATIONS

• Acoustical specifications
  - FREQUENCY RESPONSE : 40 Hz ÷ 20000 Hz
  - HORIZONTAL COVERAGE ANGLE : 120°
  - MAX SPL @ 1M : 128 dB
  - VERTICAL COVERAGE ANGLE : 30°


• Transducers
  - FULLRANGE : 8 x 2.0'', 1.0'' v.c
  - WOOFER : 12'', 2.5'' v.c


• Input/Output section
  - INPUT CONNECTORS : XLR, Jack
  - INPUT SENSITIVITY : -2 dBu/+4 dBu
  - INPUT SIGNAL : bal/unbal
  - OUTPUT CONNECTORS : XLR


• Processor section
  - CONTROLS : Volume, Boost, Mic/Line
  - CROSSOVER FREQUENCIES : 220 Hz
  - LIMITER : Soft Limiter
  - PROTECTIONS : Thermal, RMS


• Power section
  - CONNECTIONS : VDE
  - COOLING : Convection
  - HIGH FREQUENCIES : 400 W Peak, 200 W RMS
  - LOW FREQUENCIES : 1000 W Peak, 500 W RMS
  - TOTAL POWER : 1400 W Peak, 700 W RMS


• Electronic specifications
  - FREQUENCY RESPONSE : 20 Hz ÷ 20 Hz
  - THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED): 0.004% A-Weighted


• Processing
  - A/D-D/A CONVERSION : 24 Bit @ 48.0 kHz
  - DYNAMIC RANGE : 108
  - PROCESSING CHANNELS : 8
  - SIGNAL PROCESSING : 32 Bit Floating Point


• Inputs
  - A/D DYNAMIC RANGE (DB) : 108 dB
  - GAIN RANGE : 0 dB ÷ 45 dB
  - GAIN SELECTION : 0 dB ÷ 45 dB
  - STEREO LINE GAIN SELECTION : 0 dB ÷ 45 dB
  - HI-Z LINE INPUTS IMPEDANCE (MOHM) : 1 Mohm
  - HI-Z LINE INPUTS : 1
  - INPUT NOISE LEVEL (DBU A-WEIGHTED) : -114 dBu A-Weighted
  - MIC INPUTS IMPEDANCE (KOHM) : 3 kohm
  - LINE : 4
  - LINE INPUT IMPEDANCE (KOHM) : 11 kohm
  - LOW CUT : 20 Hz ÷ 1000 dB
  - MIC : 4
  - PHANTOM POWER +48V : Yes
  - REMOTE CONTROLLED STORABLE GAIN : Yes
  - STEREO LINE : 2
  - STEREO LINE INPUT IMPEDENCE (KOHM) : 11 kohm


• Outputs
  - AUX OUTPUT : 1
  - AUX SEND : 1


• Outputs specifications
  - AUX OUT IMPEDANCE (OHM) : 150 ohm
  - AUX OUT LEVEL (DBU) : 19 dBu
  - D/A DYNAMIC RANGE (DB) : 108 dB
  - MAIN OUT IMPEDANCE (OHM) : 150 ohm
  - MAIN OUT LEVEL (DBU) : 19 dBu


• Compressors
  - RCF COMPRESSORS : 4 mono (6 preset)


• EQ
  - DESCRIPTION : 3 Band EQ: High and Low band shelving, Mid Band with sweepable frequencyGraphic 7 Band EQ on Main Mix and AUX send.
  - INPUT CHANNELS EQ: 1 Semi Parametric / 2 Shelving


• Auxiliary sends
  - AUX : 1 PRE/POST
  - FX POST : 1


• Internal Effects
  - MULTIFX INSERT EFFECTS : 1
  - SEND EFFECTS : 1


• Mastering processors
  - MAIN OUT PROCESSORS : 1


• USB audio
  - PLAY TRK : 2


• Other features
  - FOOTSWITCH : Yes


• Electrical specifications
  - POWER SUPPLY : Internal


• Standard compliance
  - CE MARKING : Yes


• Physical specifications
  - CABINET/CASE MATERIAL : PP Composite
  - COLOR : Black
  - GRILLE : Steel
  - HANDLES : 1 Top

• Size
  - DEPTH : 460 mm / 18.11 inches
  - HEIGHT : 623 mm / 24.53 inches
  - WEIGHT : 22.2 kg / 48.94 lbs
  - WIDTH : 400 mm / 15.75 inches
