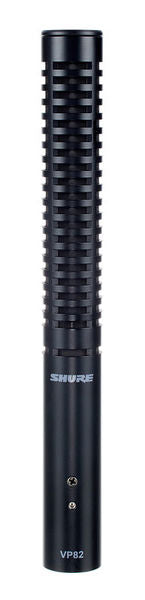

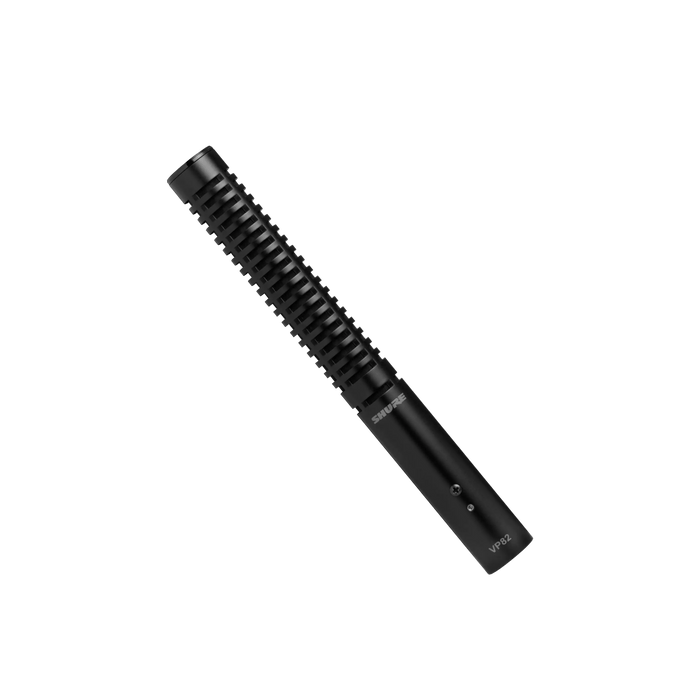

Shure VP82 Short Shotgun Microphone (VP-82)

The VP82 is a professional shotgun microphone for use in A / V sound reinforcement. Compact and lightweight with a wide aperture and excellent off-axis rejection, the VP82 is the affordable and reliable choice for camera-mounted broadcast and media production applications.

FEATURES

• Best-in-class audio performance
• Integrated preamplifier design (not modular)
• Wide aperture for near-field sound sources
• Natural off-axis rejection
• Economical choice with small footprint; compact and lightweight
• Superior Shure design and rugged, roadworthy construction

SPECIFICATIONS

• Microphone
  - Form Factor : Stand/Boom Mount
  - Sound Field : Mono
  - Operating Principle : Pressure Gradient
  - Capsule : 1 x Electret Condenser
  - Polar Pattern : Lobar, Supercardioid
  - Orientation : End Address
  - Circuitry : Solid-State


• Performance
  - Frequency Range : 90 Hz to 20 kHz
  - Maximum SPL : 137.5 dB SPL (1 kHz, 1% THD, 2.5-Kilohms Load) | 131.5 dB SPL (1 kHz, 1% THD, 1-Kilohm Load)
  - Off-Axis Rejection : >3 dB at 60° | 17 dB at 120° | >20 dB at 180°
  - Impedance : 144 Ohms
  - Load Impedance : 1000 Ohms
  - Sensitivity : -36 dBV/Pa at 1 kHz
  - Output Level : 7 dBV (Max)
  - Dynamic Range : 122.5 dB (1 kHz, 2.5-Kilohms Load) | 116.5 dB (1 kHz, 1-Kilohm Load)
  - Signal-to-Noise Ratio : 79 dB A-Weighted
  - Equivalent Noise Level : 15 dB A-Weighted
  - CMRR : 55 dB


• Connectivity
  - Output Connectors (Analog) : 1 x XLR 3-Pin Male


• Power
  - Operating Voltage : 11 to 52 V (Phantom Power)
  - Operating Current Consumption : 2 mA
