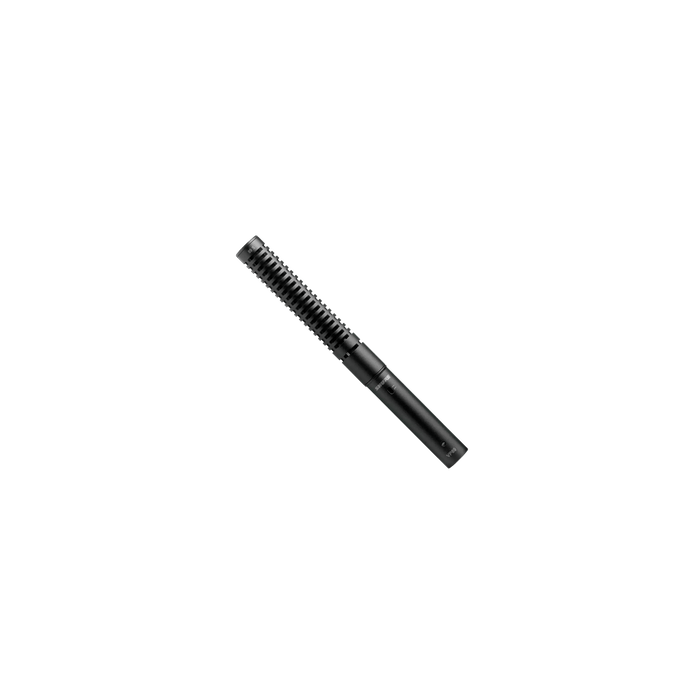

Shure VP89S Modular Short Shotgun Microphone (VP-89S)

Designed as a modular system that supports interchangeable capsules to accommodate a range of indoor and outdoor recording scenarios, the Shure VP89S short shotgun microphone delivers a wide 70° acceptance angle for more off-axis pickup than the medium VP89M and the long VP89L. Lightweight and rugged, the VP89S provides reliable operation and low susceptibility to hum, GSM, and radio-frequency interference. The phantom-powered preamp features a switchable low-cut filter to attenuate problematic bass frequencies such as rumble and a standard XLR 3-pin output for straightforward connectivity. Outfitted with a Class-A, discrete, transformerless preamplifier, the VP89S delivers a clean and quick transient response with minimal harmonic/intermodulation distortion and no crossover distortion. Long and medium-sized capsule barrels are available separately to suit various recording needs, rejection angles, and frequency responses.

FEATURES

• For Indie Films, TV & Documentaries
• Wide 70° Acceptance Angle
• Phantom-Powered Preamp & Short Capsule
• Switchable Low-Cut Filter
• Class-A Transformerless Design
• Transparent, Fast Transient Response
• Minimal Harmonic and IM Distortion
• Low Susceptibility to Noise/Interference

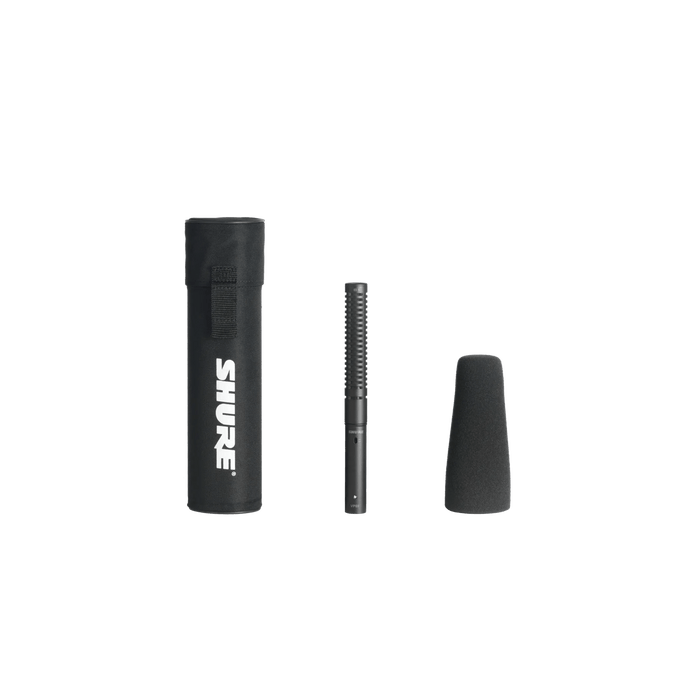

• Windscreen Reduces Wind Noise
• Lightweight and Rugged Housing

SPECIFICATIONS

• Microphone
  - Form Factor : Stand/Boom Mount
  - Sound Field : Mono
  - Operating Principle : Pressure Gradient
  - Capsule : 1 x Electret Condenser
  - Polar Pattern : Hypercardioid, Lobar
  - Orientation : End Address
  - Circuitry : Solid-State
  - High-Pass Filter : 200 Hz, 12 dB/Octave
  - On-Board Controls : High-Pass Filter


• Performance
  - Frequency Range : 65 Hz to 20 kHz
  - Maximum SPL : 132 dB SPL (1 kHz, 1% THD, 2.5-Kilohms Load) | 128.5 dB SPL (1 kHz, 1% THD, 1-Kilohm Load)
  - Off-Axis Rejection : 4 dB at 60° | 25 dB at 120° | >15 dB at 180°
  - Impedance : 115 Ohms
  - Load Impedance : 1000 Ohms
  - Sensitivity : -33.5 dBV/Pa at 1 kHz (Open Circuit Voltage, 1 kHz)
  - Output Level : 4 dBV (Max)
  - Dynamic Range : 117 dB (1 kHz, 2.5-Kilohms Load) | 113.5 dB (1 kHz, 1-Kilohm Load)
  - Signal-to-Noise Ratio : 79 dB A-Weighted
  - Equivalent Noise Level : 15 dB A-Weighted
  - CMRR : 70 dB


• Connectivity
  - Output Connectors (Analog) : 1 x XLR 3-Pin Male
  - Headphone Connector : None


• Power
  - Operating Voltage : 11 to 52 V (Phantom Power)
  - Operating Current Consumption : 2 mA
