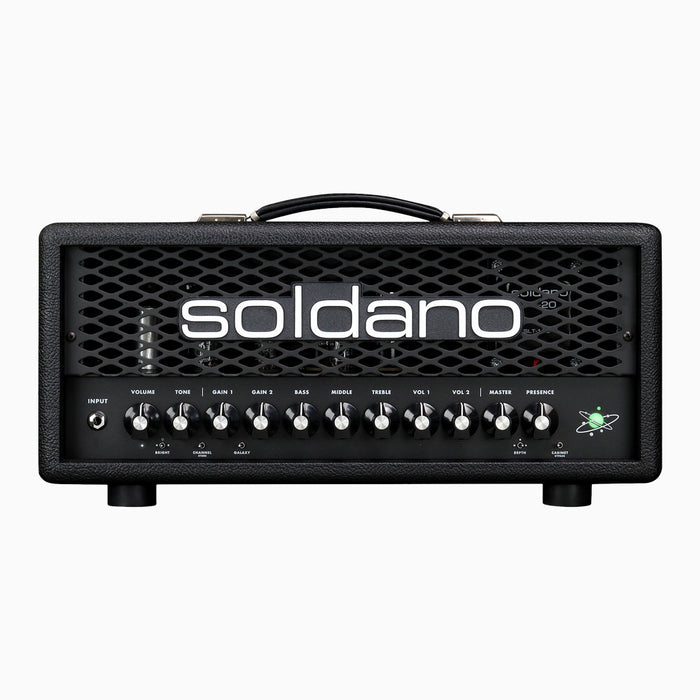

Soldano Astro-20 20-watt 3-channel Tube Head (Astro 20)

The ASTRO-20 is a 3-channel, 4-Galaxy, Built-In-USA head that combines authentic all-tube tone with features ideal for today’s modern guitarist. Mike Soldano designed this sonic powerhouse to be a fully featured versatile 20w guitar amplifier. The ASTRO-20 can also be used as a stand-alone cab-less amplifier ideal for live sound, rehearsal and studio recording sessions, thanks to the DSP powered IR cabinet simulation. The simple front panel design of the ASTRO-20 lets you save any combination of the channels, Galaxies, and IRs and quickly recall them with the included 4-button MIDI footswitch. The free downloadable Soldano Editor Software makes organizing presets and integrating your own IRs fast and easy.

FEATURES

• 20W lightweight all-tube guitar amplifier
• 3 Independent Channels
• Overdrive Galaxies
• BLUE Galaxy ranges from bluesy cleans to fat and sparkly hard rock tones
• PURPLE Galaxy ranges from hard rock to punchy high gain drive with a tighter response
• RED Galaxy with the famous sought after SOLDANO lead overdrive tone
• Low Latency IR Cabinet simulation (bypassable)
• 6 IR presets, individually programmable per channel – these are the planets around the star.

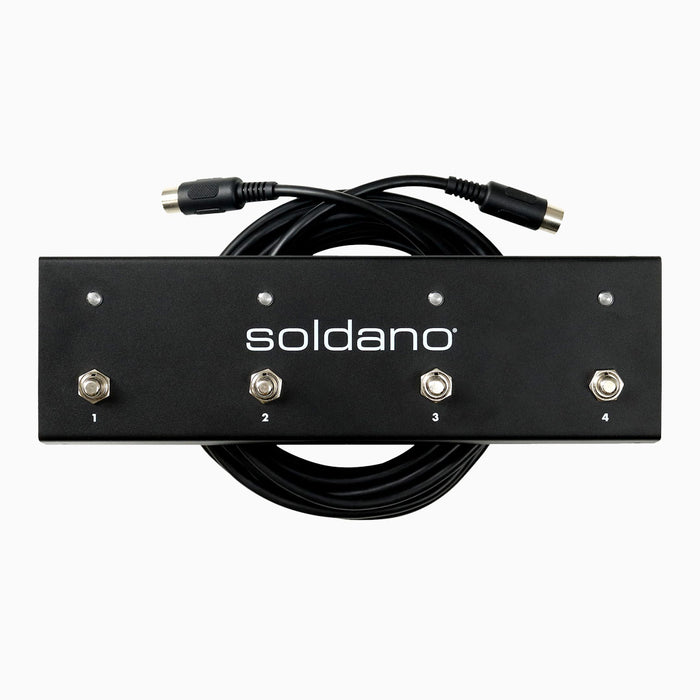

• Included 4 button programmable MIDI foot switch pedal
• USB Software Editor

SPECIFICATIONS

• Type: Tube
• Number of Channels: 3
• Total Power: 20W
• Preamp Tubes: 4 x 12AX7
• Power Tubes: 2 x 6V6
• EQ: 3-band EQ, Tone control, 3-way bright switch, 3-way depth switch
• Amp Modeling: 6 x Cabinet IR Models
• Inputs: 1 x 1/4"

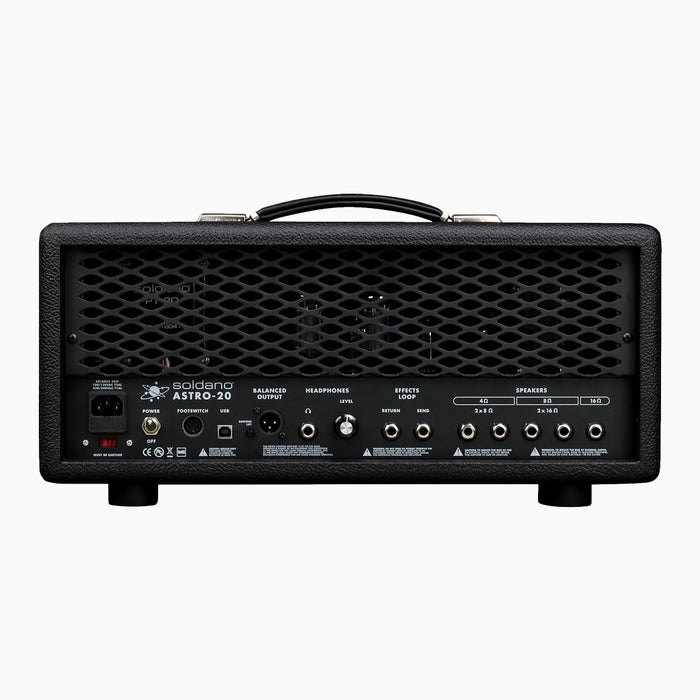

• Outputs: 2 x 1/4" (4 ohms), 2 x 1/4" (8 ohms), 1 x 1/4" (16 ohms), 1 x XLR (DI out)
• Headphones: 1 x 1/4"
• Effects Loop: 2 x 1/4"
• MIDI I/O: In, USB
• USB: 1 x Type B
• Footswitch I/O: 1 x 7-pin DIN
• Footswitch Included: Yes, 4-button footswitch
• Computer Connectivity: USB
• Software: Soldano Editor Software
• Construction Material: Black Covering
• Power Source: Standard IEC AC cable
• Height: 9"
• Width: 19"
• Depth: 9.75"
• Weight: 26 lbs.
