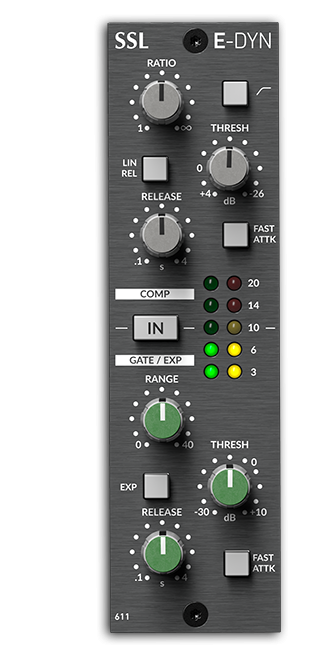

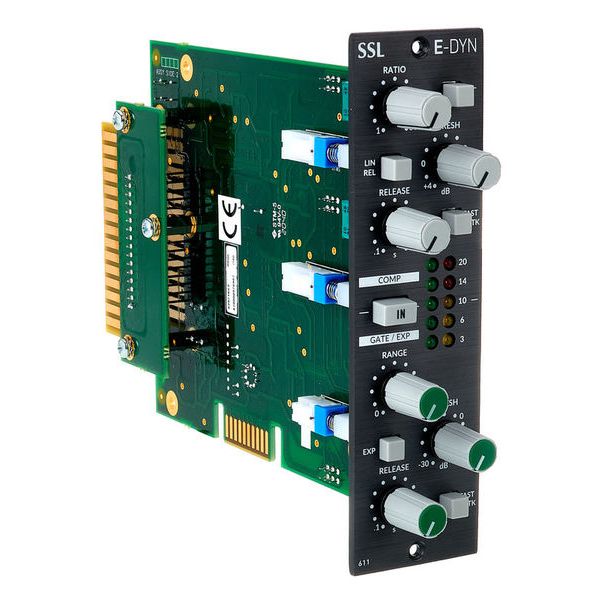

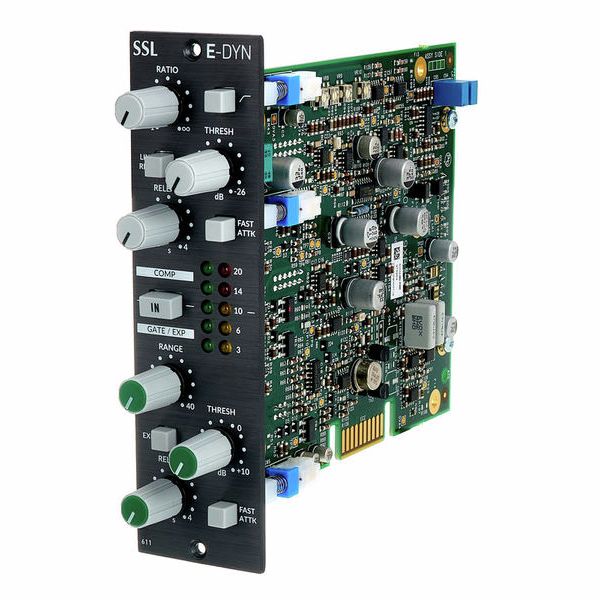

Solid State Logic 611DYN 500 Series Dynamics Module

Put the SSL 611DYN 500 Series dynamics processor in your 500 Series rack, and you’ll have the sound of a legendary SSL console. The 611DYN dynamics processor reproduces the sound of the VCA channel dynamics section found on the SL 4000 E console, which has been used since the early ’80s to create countless hit records. With multiple switching options, you’ll be able to tailor this compressor to any sound source. And because it’s also a powerful limiter, expander, and gate, you’ll find a use for the SSL 611DYN 500 Series dynamics processor on every project you work on.

FEATURES

• Based on the VCA channel dynamics section of the SSL SL 4000 E console
• Switchable over-easy/hard-knee operation for flexibility
• Switchable logarithmic and linear release curves to match your material
• 4 tools in 1: compressor, limiter, expander, and gate
• Sidechain with RMS converter for precise operation

SPECIFICATIONS

• Processor Type : VCA Compressor/Limiter
• Number of Channels : 1
• Controls : Threshold, Ratio, Release, Range
• Threshold : -26dB to +4dB (compressor), -30dB to +10dB (gate/expander)
• Ratio : 1:1 to Infinity
• Bypass : Yes
• Module Slot Size : Single
• Power Usage : ±16V DC, 130mA
• Depth : 5.93"
