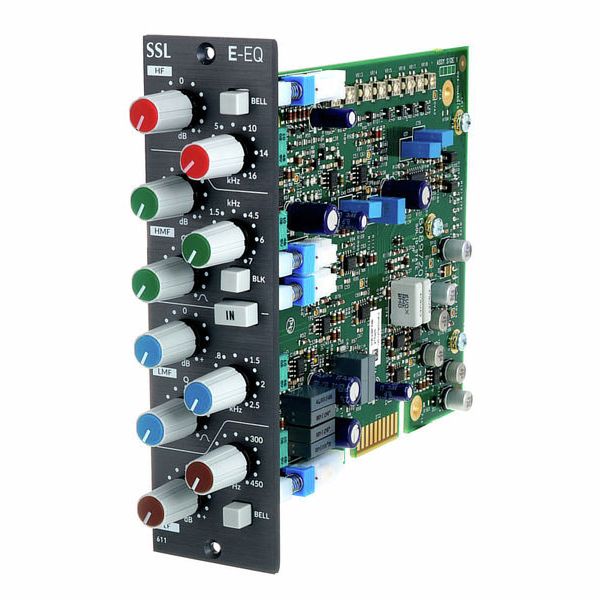

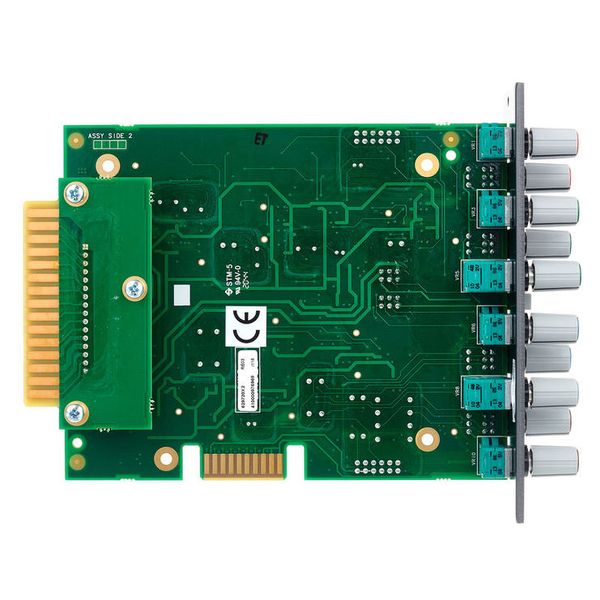

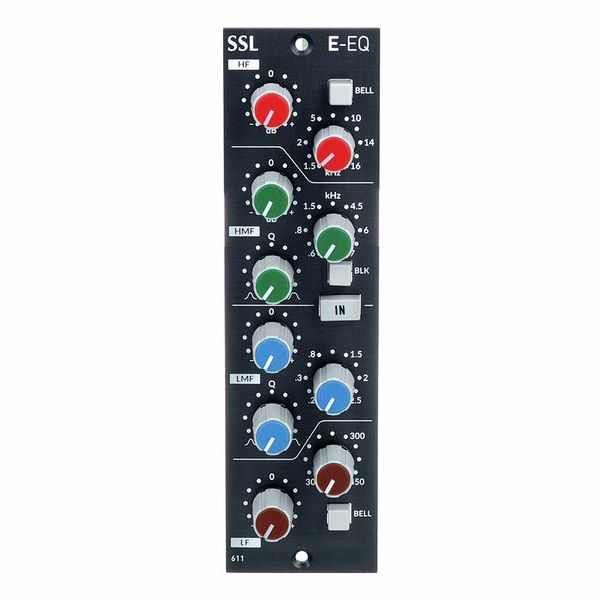

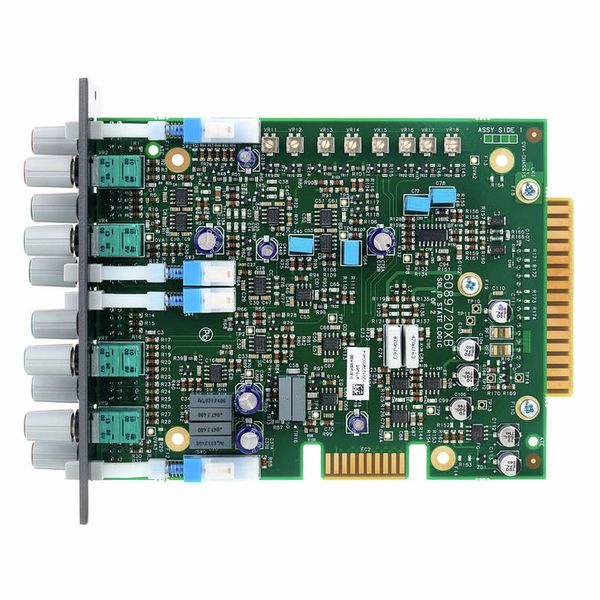

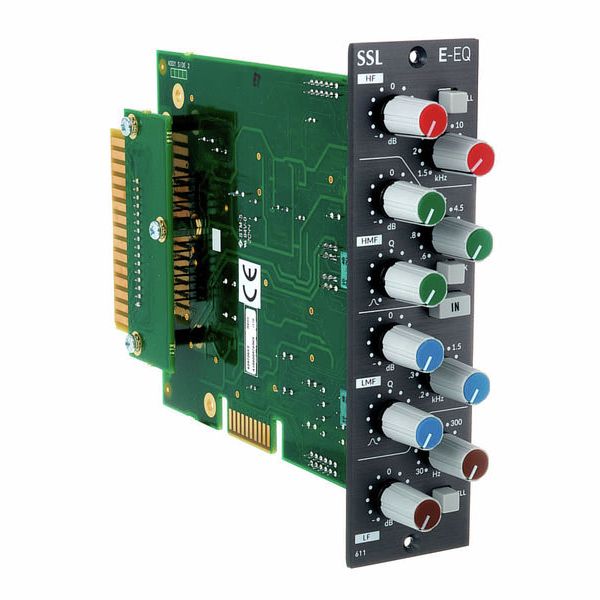

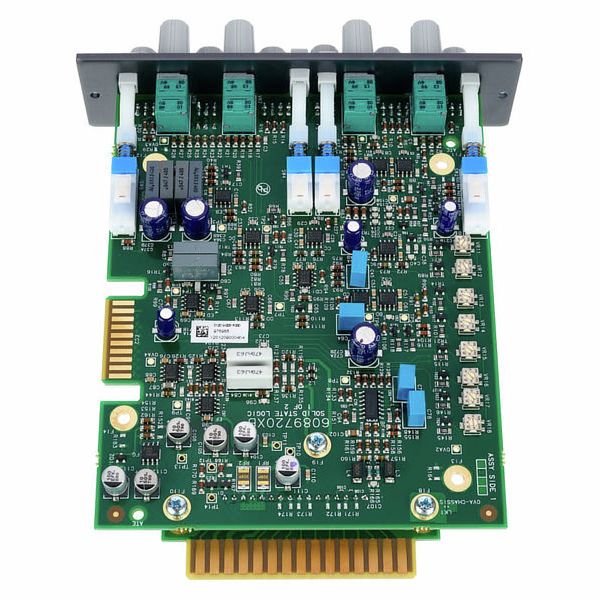

Solid State Logic 611EQ 500 Series Parametric Equalizer

Put legendary console equalization in your rack with the SSL 611EQ 500 Series 4-band EQ module. In fact, you actually get two legendary EQs in the 611EQ. Early ’80s SSL E Series consoles had the “Brown Knob” EQ, and later consoles used the “Black Knob” EQ, each with distinct sonic characteristics. The 611EQ lets you switch the midrange bands between these two flavors of EQ, so you’ll be equipped to shape any material to your liking. Add a preamp module and a dynamics processor, and you’ve got a superb custom SSL channel strip. Music Bliss advice: for an EQ you can rely on for virtually any task, look to the SSL 611EQ 500 Series EQ module.

FEATURES

• Mono 4-band parametric equalizer module with two distinct flavors of legendary SSL EQ
• “Brown Knob” mode is the sound of early-’80s E Series consoles, with 15dB cut/boost and musical response
• “Black Knob” mode is the sound of later E Series consoles, with 18dB of cut/boost and a tighter sound
• LF and HF shelving bands can be switched to a bell-curve response for maximum versatility
• The perfect way for project studios to get the sound of a world-famous console, affordably
• Requires compatible 500 Series chassis

SPECIFICATIONS

• Type : Solid State
• Number of Channels : 1
• Number of Bands : 4-Band
• Q Type : Selectable
• Freq Range High : 1.5kHz-16kHz
• Freq Range Hi-Mid : 600Hz-7kHz
• Freq Range Lo-Mid : 200Hz-2.5kHz
• Freq Range Low : 30Hz-450Hz
• Bypass : Yes
• Power Usage : Requires 500 Series power supply
• Module Slot Size : Single
