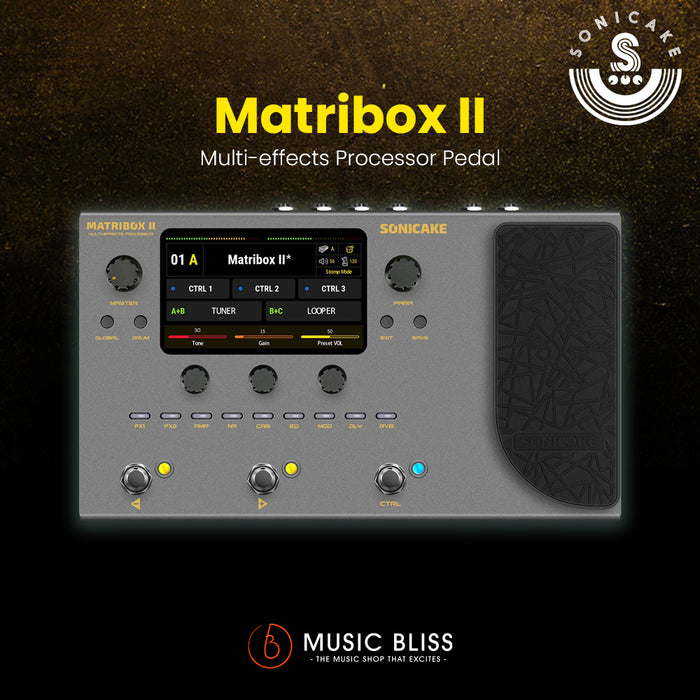

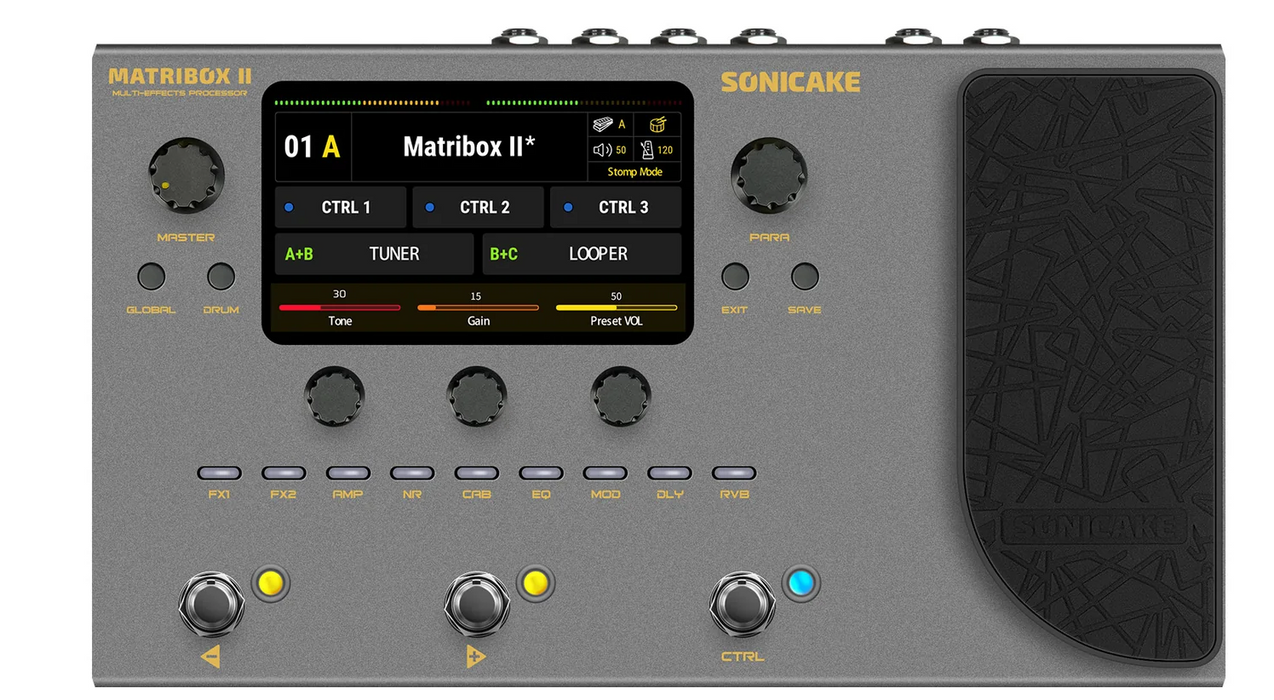

Sonicake QME-100 Matribox II Multi-effects Processor Pedal

Matribox II is Sonicake's second-generation multi-effect processor, inheriting the rich technical accumulation of the first-generation product and making further breakthroughs in technology and quality. The new hardware platform and digital modeling technology can perfectly reproduce every detail of the sound, and perform more accurately, clearly and with high fidelity, meeting various creative needs.

FEATURES

• Matribox Gen 2 hardware platform with advanced digital modeling technology

• High-definition white box modeling for a realistic sound experience

• 63 amplifier and over 93 effect pedal simulations

• 61 cabinet simulations with support for 15 user IRs

• 10 simultaneous and movable effect modules

• Large color screen with user-friendly interface

• 3 footswitches with two customizable footswitch modes

• Built-in expression pedal, support for external pedal or footswitches

• FX LOOP interface supports the 4 Cable Method for connecting other devices

• Headphone interface compatible with various impedance headphones

• MIDI I/O for integration with other MIDI devices

• With AUX IN and the ability to record via USB Audio

• USB Audio supports Win/Mac/iOS/Android systems

• USB Audio features multiple sets of virtual I/O interfaces, supporting operations such as Loopback and Re-Amp.

• Easy-to-use editing software for Win/Mac

• 90-second loop function

• 100 drum rhythms, including metronome

• Tuner with screen display, fast and accurate

• 198 preset slots (99 factory presets)
  Durable metal casing
  Powered by 9V DC power supply

SPECIFICATIONS

• Technical Specifications
  - A/D/A Converter : 24-bit high performance audio
  - Sampling Frequency : 44.1 kHz
  - SNR : 110dB
  - Maximum Simultaneous Effects : 10
  - Preset Memory : 198 Presets Slots, 99 Factory Presets
  - Looper : Maximum 90 seconds of record time
  - Drum Machine : 100 Patterns
  - MIDI (IN/OUT) : 1/8” TRS MIDI jacks


• Analog Input Connections
  - Guitar Input : 1/4” Unbalanced (TS), 4.7M Ohms (A.GT),
  - 1M Ohms (E.GT), 10k Ohms (Line)
  - Return Input : 1/4” Unbalanced (TS), 100k Ohms
  - Aux Input : 1/8” Stereo (TRS), 10k Ohms


• Analog Output Connections
  - L/R Outputs : 1/4” TRS, 1k Ohms
  - Send Output : 1/4” Unbalanced (TS), 1k Ohms
  - Headphone Output : 1/8” Stereo (TRS), 22 Ohms


• Digital Connections
  - USB Port : USB 2.0 Type-C Port
  - USB Recording Specification


• Sample Rate : 44.1 kHz
  - Bit Depth : Supports 16-bit or 24-bit


• Size and Weight
  - Dimensions : 276mm (W) x 164mm (D) x 55.8mm (H)
  - Unit Weight : 1.54kg


• Power
  - Power Requirements : DC 9V center negative, 1000mA
