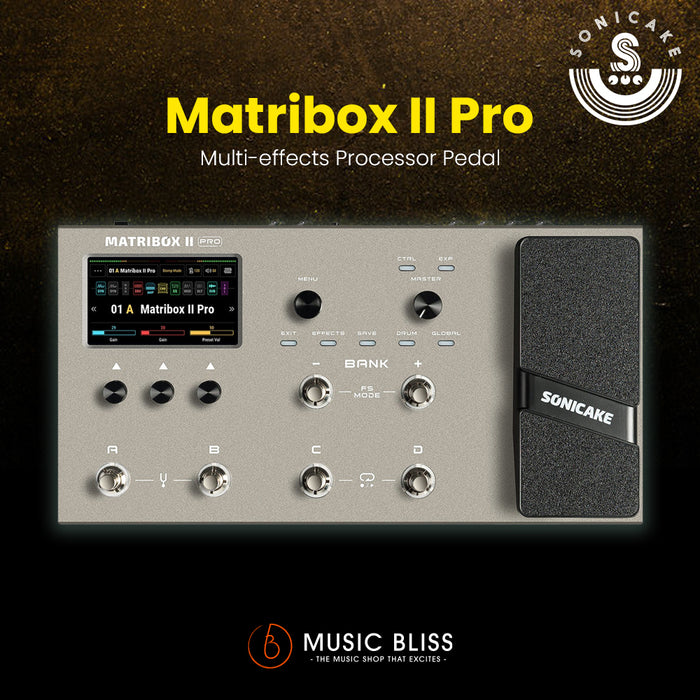

Sonicake QME-200 Matribox II Pro Multi Effects Processor Pedal

Matribox II Pro is the second generation Pro version of Sonicake's multi-effects processor. It inherits the rich technical accumulation of the previous generation of products and has made further breakthroughs in technology and quality. The new touch screen brings a more intuitive operation experience, and more pedals and interfaces bring more controllability. The new hardware platform and digital modeling technology can perfectly reproduce every detail of the sound, showing higher accuracy, clarity and fidelity to meet various creative needs.

FEATURES

• Large color touchscreen with user-friendly interface

• Matribox Gen 2 hardware platform with advanced digital modeling technology

• 63 amplifier and over 93 effect pedal simulations

• 61 cabinet simulations with support for 20 user IRs

• 6 footswitches with two customizable footswitch modes

• Built-in expression pedal, support for external pedal or footswitches

• FX LOOP interface supports the 4 Cable Method for connecting other devices

• Headphone interface compatible with various impedance headphones

• 2 XLR balanced output for connecting to studio gear, mixer, PA, or FRFR speaker(s)

• MIDI I/O for integration with other MIDI devices

• With AUX IN and the ability to record via USB Audio

• USB Audio supports Win/Mac/iOS/Android systems

• USB Audio features multiple sets of virtual I/O interfaces, supporting operations such
• as Loopback and Re-Amp.

• Easy-to-use editing software for Win/Mac

• 90-second loop function

• 100 drum rhythms, including metronome

• Tuner with screen display, fast and accurate

• 240 preset slots (120 factory presets)

• Durable metal chassis and footswitches

• Powered by 9V DC power supply

SPECIFICATIONS

• Technical Specifications
  - A/D/A Converter : 24-bit high performance audio
  - Sampling Frequency : 44.1 kHz
  - SNR : 110dB
  - Maximum Simultaneous Effects : 12
  - Preset Memory : 240 Presets Slots, 120 Factory Presets
  - Looper : Maximum 90 seconds of record time
  - Drum Machine : 100 Patterns
  - MIDI (IN/OUT) : 1/8” TRS MIDI


• Analog Input Connections
  - Guitar Input : 1/4” (6.35mm) Unbalanced (TS)
  - Input Impedance : 4.7MΩ (A.GT), 1MΩ (E.GT), 10kΩ (Line)
  - Return Input : 1/4” (6.35mm) Unbalanced (TS), 100kΩ
  - Aux Input : 1/8” (3.5mm) Stereo (TRS), 10kΩ


• Analog Output Connections
  - L/R Unbalanced Outputs : 1/4” (6.35mm) TS, 1kΩ
  - L/R Balanced Outputs : XLR, 1kΩ
  - Send Output : 1/4” (6.35mm) Unbalanced (TS), 1kΩ
  - Headphone Output : 1/8” (3.5mm) Stereo (TRS), 22Ω


• Digital Connections & USB Recording Specification
  - USB Port : USB 2.0 Type-C Port
  - Sample Rate : 44.1 kHz
  - Bit Depth : Supports 16-bit or 24-bit


• Size and Weight
  - Dimensions : 373mm (W) x 198.5mm (D) x 72mm (H)
  - Unit Weight : 2.5kg


• Power
  - Power Requirements : DC 9V center negative, 1000mA
