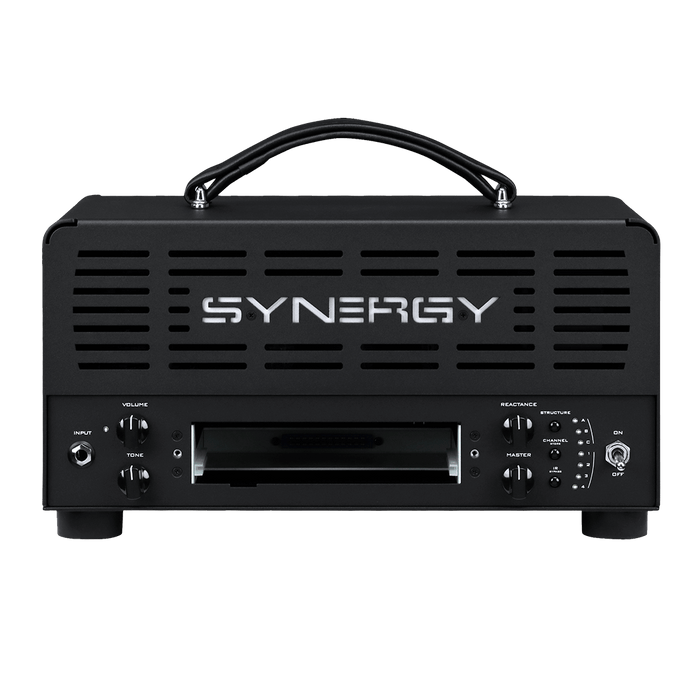

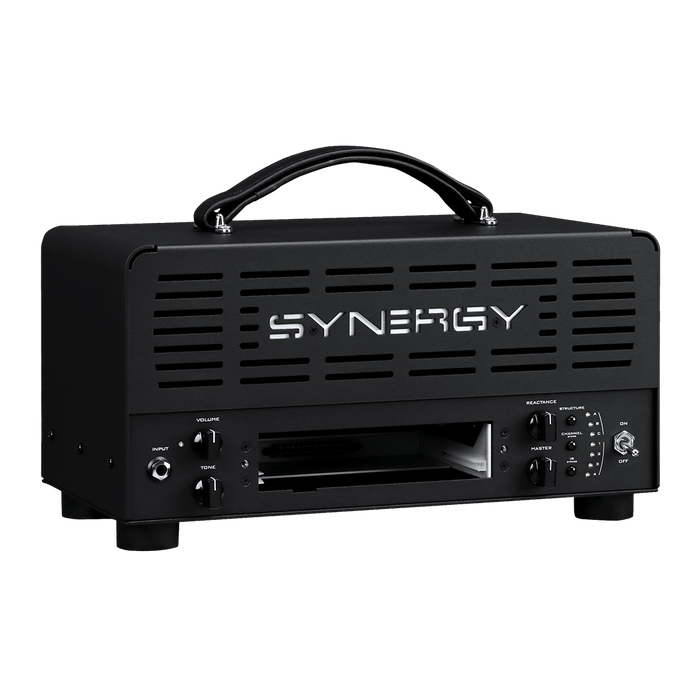

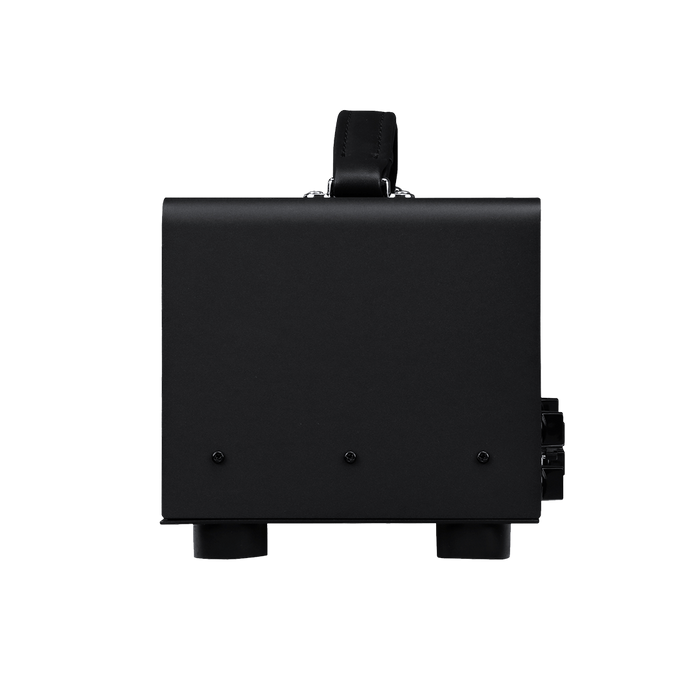

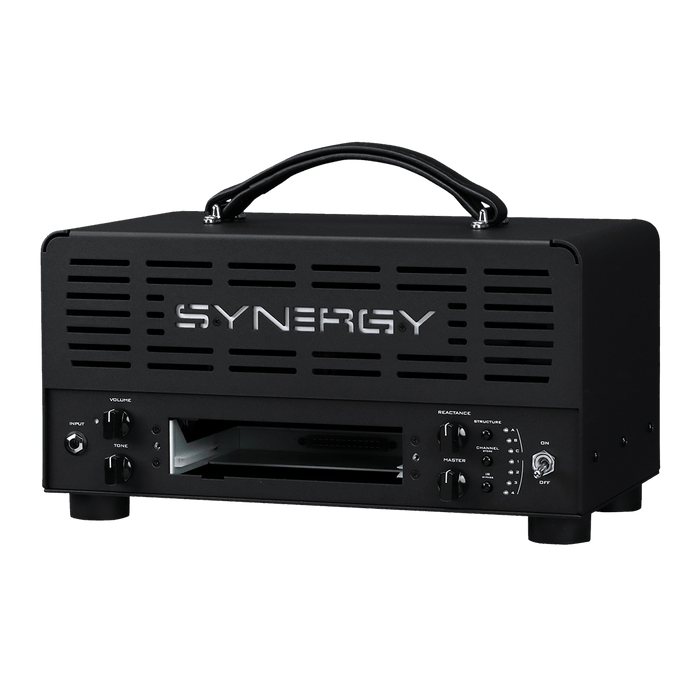

Synergy SYN-20IR 20-watt 3-channel Tube Head

Reap the rewards of responsive tube tone structures without sacrificing innovative digital modeler sensibility with the Synergy SYN-20IR. This unique head uses the same preamp docking technology found in Synergy’s other units, with one major exception — the tubes. Sporting a portable lunchbox head design, the SYN-20IR is loaded with dual EL84 power amp tubes that, coupled with a Synergy preamp module, create a 20-watt all-tube amplifier equally at home in the studio or on the road. The flexible tonal capabilities aim to create an analog modeling system loved by Music Bliss guitarists looking to sculpt their tone with the flexibility of modern digital rigs and raw tube tone. With one or more preamps, a built-in American-style clean channel, and selectable power amp structures, you’ll have three channels to explore any style from crisp clean to monstrous high gain. Once you’ve dialed it in, save your settings, accessing them via a 3-button MIDI footswitch. Transmit your signal using the customizable IR presets, with outputs for any cabinet and a built-in headphone jack for silent practice. With the SYN-20IR head, you no longer have to compromise analog tube performance for modern technological convenience.

FEATURES

• 20W, 3-ch EL84 lunchbox head for use with Synergy preamp modules for portability and versatility
• Analog modeling system allows tone sculpting with the flexibility of modern digital rigs and raw tube tone
• Built-in clean channel and selectable power amp structures help optimize the amp to whichever preamp is loaded up
• Access saved settings via a 3-button MIDI footswitch
• Preset or user-loaded IRs run out via a balanced XLR output right on the amp
• Compatibility with any guitar amp cabinet

SPECIFICATIONS

• Type:Tube
• Number of Channels:3 (1 x module slot)
• Output Power:20W
• Preamp Tubes:2 x 12AX7
• Power Tubes:2 x EL84
• Number of Models:4 x IR presets

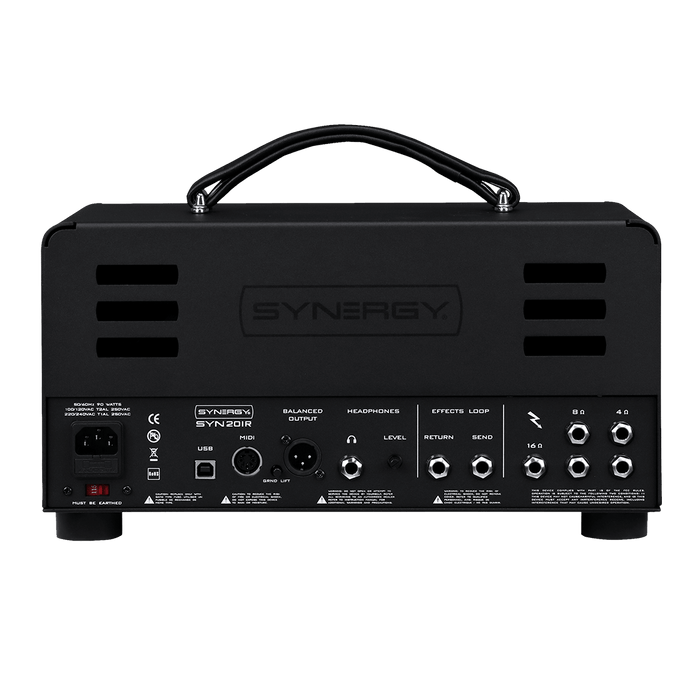

• Inputs:1 x 1/4"
• Outputs:2 x 1/4" (4 ohm), 2 x 1/4" (8 ohm), 1 x 1/4" (16 ohm)
• Headphones:1 x 1/4"
• Effects Loop:Yes
• MIDI I/O:1 x 5-pin DIN (In)
• USB:1 x Type B (software)
• Footswitch Included:Yes, 3-button midi programmable footswitch
• Computer Connectivity:USB
• Software:Synergy Software Editor
• Power Source:Standard IEC AC cable
• Height:7.5"
• Width:14"
• Depth:8.5"
• Weight:16.4 lbs.
