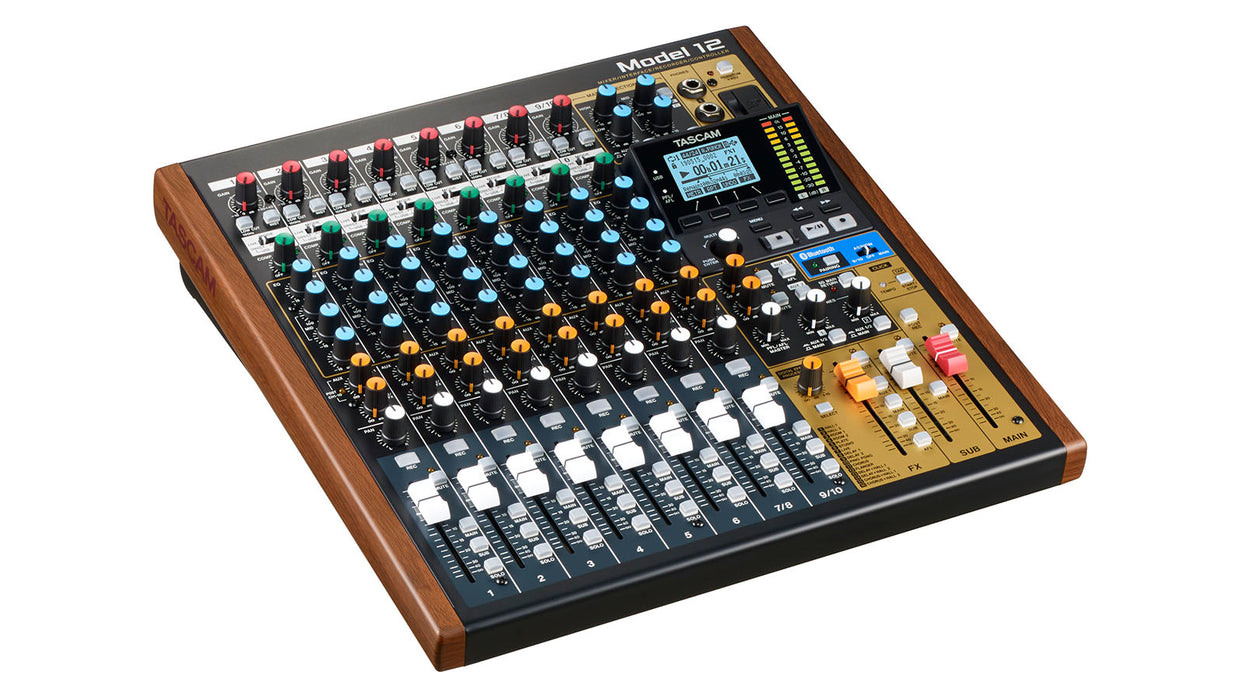

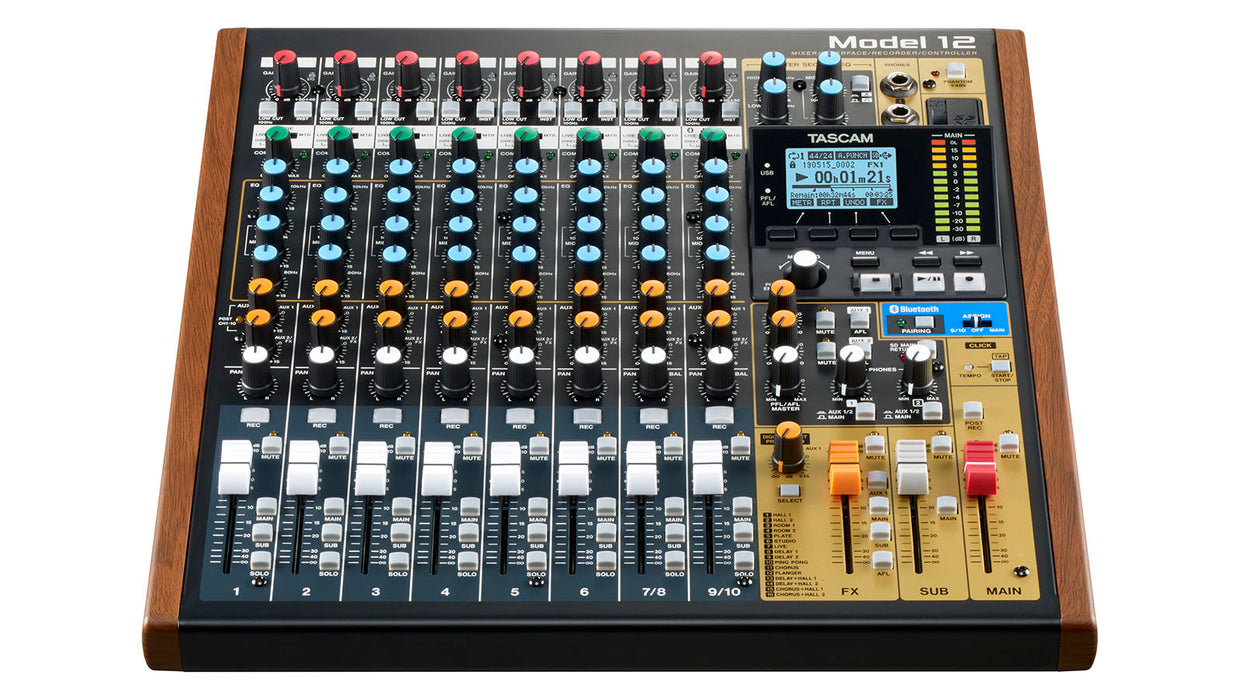

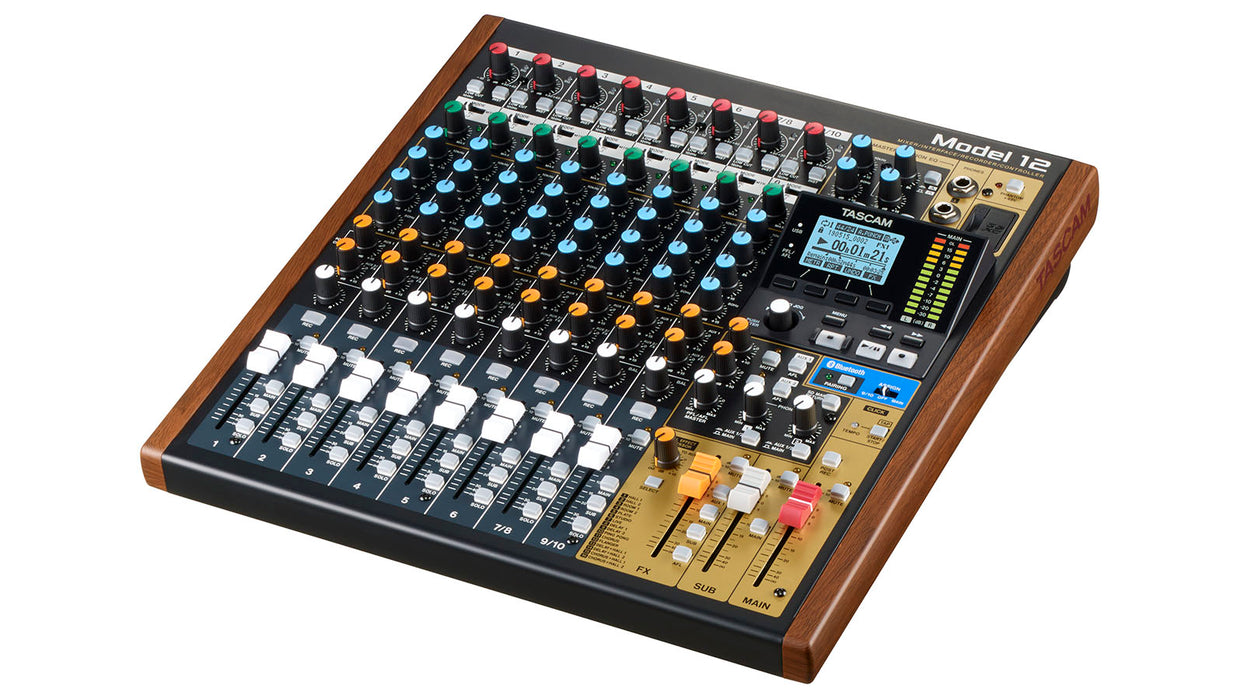

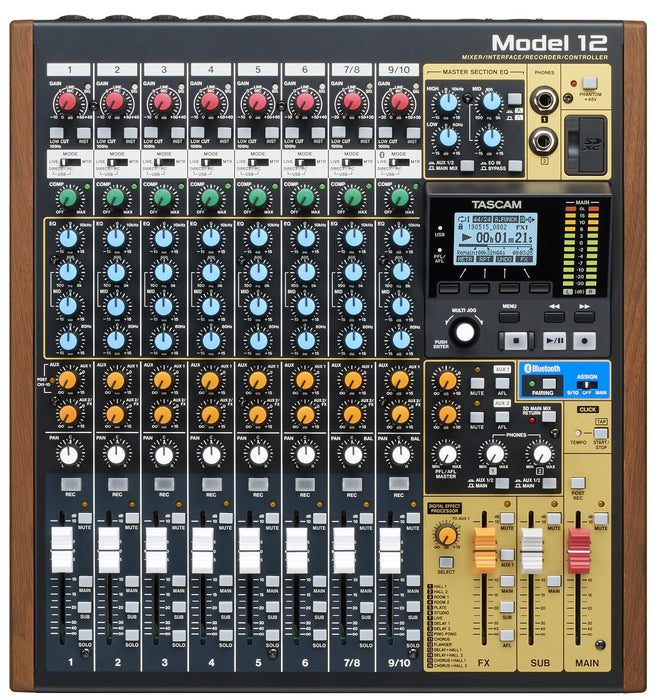

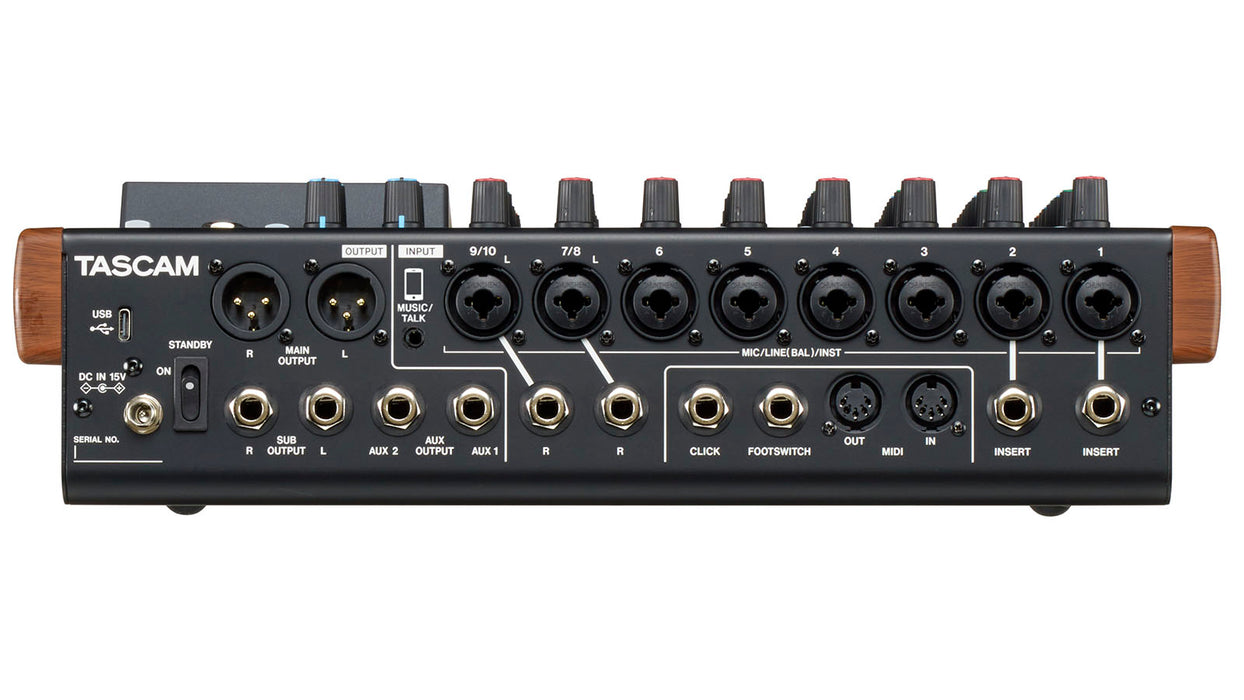

TASCAM Model 12 12-Track Digital Recording Mixer With DAW Controller & Audio Interface

Whether you use it for rehearsal, live shows, or studio production, the TASCAM Model 12 is a great-sounding, easy-to-use multitrack recording solution. The Model 12 boasts a classic analog mixer-style design that's both intuitive and immediate. Achieve precise control with 60mm faders, while tweaking your tracks with familiar EQ and Aux controls. High-grade preamps ensure top-notch sound that's easily captured on an internal SD card at 24-bit/48kHz resolution. You also get a generous complement of I/O. Beyond that, DAW integration is a piece of cake, thanks to the Model 12's built-in 12-in/10-out audio interface. The Model 12 is lightweight yet rugged, and can be transported from studio to stage with confidence, thanks to TASCAM's legendary reliability.

FEATURES

• Great-sounding, easy-to-use 12-track multitrack recording solution
• Boasts a classic analog mixer-style design that's both intuitive and immediate
• 60mm faders provide precise control
• Familiar EQ and Aux controls for tweaking your tracks
• Generous complement of I/O including 8 high-grade mic preamps
• Internal recording to SD card at 24-bit/48kHz resolution
• Flexible routing and onboard effects
• Built-in 12-in/10-out audio interface for easy DAW integration
• DAW and transport control
• Lightweight yet rugged design

SPECIFICATIONS

• Type : Digital Mixer with USB Interface/Recorder

• Channels : 10 input channels, 12-track

• Computer Connectivity : USB (12 x 10)

• A/D Resolution : 24-bit/48kHz

• Faders : 11 x 60mm Faders

• Inputs - Mic Preamps : 8 x XLR-1/4" combo (mic/line/Hi-Z)

• Phantom Power : 8 channels

• Inputs - Line : 1 x 1/8" TRRS (stereo), 2 x 1/4" (L/R)

• Outputs - Main : 2 x XLR (main)

• Outputs - Other : 2 x 1/4" (L/R Subgroup)

• Aux Sends : 1 x Aux1, 1 x Aux2/FX

• Send/Return I/O : 2 x 1/4" (aux 1/2 send)

• Busses/Groups : 1 x Subgroup

• Inserts : 2 x 1/4" (channel)

• Headphones : 2 x 1/4"

• USB : 1 x USB-C

• Bluetooth : v5.0

• MIDI I/O : In/Out/USB

• Other I/O : 1 x 1/4" (footswitch), 1 x 1/4" (metronome click)

• EQ Bands : 3-band EQ with Sweepable Mid Frequency, 100Hz Low-cut, 3-band Master EQ

• Signal Processing : 8 x Channel Compressor

• Effects : Reverbs, Delay, Chorus, Flanger

• Storage : SDHC (4GB-32GB), SDXC (64GB-512GB)

• Software : Basic DAW Control (HUI, MCU, major DAWs)

• OS Requirements - Mac : Dual Core 2GHz Processor or higher, macOS 10.12 or later

• OS Requirements - PC : Dual Core 2GHz Processor or higher, Windows 7 SP1, 8.1, 10 1803 update or later

• Power Source : 15V DC power supply

• Height : 3.96"

• Width : 13.5"

• Depth : 14.2"

• Weight : 9.5 lbs.
