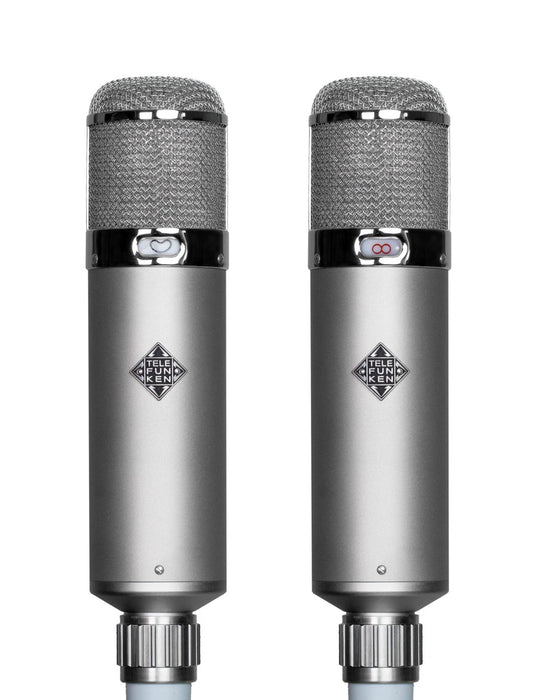

Telefunken U47/U48 Microphone Studio Set Condenser Microphone

TELEFUNKEN Elektroakustik is proud to offer the U47/U48 Studio Set of microphones. Each system includes a U47 and U48 microphone matched in frequency response. The package features a custom dual power supply capable of powering both microphones at one time, and a special locking flight case that will carry both sets of microphones, cables, wooden boxes, and the dual power supply. Set the "way back" machine for 1958 when you could have walked out of Manny's Music on 48th St. in New York City with a shiny new Gold Top Les Paul for under $1000. If you were a recording geek, you could have walked out of Gotham Audio (located just a few blocks away) with a brand new "Studio Set" of U47 or U48 microphones for around the same price. Unfortunately, most of us weren't working professionals in 1958 so we missed that boat, but wouldn't it have been great?

The U47 and U48 were both offered in what was called a "Stereo Set" that featured a sequentially serial numbered pair of U47 or U48 microphones with a dual (two microphone capable) power supply, and the "Studio Set," which was a single U47 that was matched to a U48. The TELEFUNKEN U47/48 Stereo Set will allow versed recording engineers a variety of stereo recording techniques, including X/Y coincidental pairs when utilizing the mics in their cardioid patterns, or A/B spaced pairs. The system is also capable of an M/S (mid / side) technique when using one mic in cardioid and the other in figure of 8.

INCLUDED ACCESSORIES

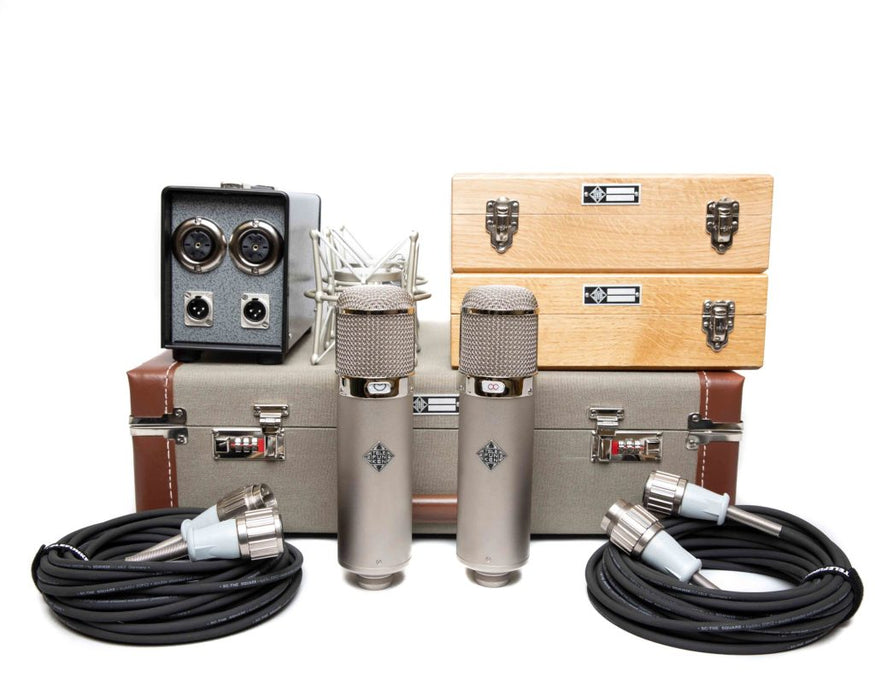

2x Tube Mic Cable, Dual Power Supply, 2x Wooden Box, Flight Case

FEATURES

Telefunken U47

• Telefunken's classic large-diaphragm tube studio condenser microphone updated for modern recording
• Classic smooth midrange, robust bass, and airy treble make this a real go-to microphone for any source
• Based on the microphones used on countless vocal and classical recordings from the 1950s and on
• Dual-sided M7 capsule provides you with both cardioid and omnidirectional polar patterns
• VF14K metal tube and BV8 output transformer provide smooth sound and tons of headroom

SPECIFICATIONS

Telefunken U47

• Type : Vacuum Tube Condenser
• Polar Pattern : Cardioid, Omnidirectional
• Frequency Range : 20 Hz - 20 kHz, ±3 dB
• Power Source : External Power Supply
• Capsule : TELEFUNKEN Elektroakustik M7 - Center Terminated Large Diaphragm
• Tube : TELEFUNKEN Elektroakustik VF14K
• Transformer : TELEFUNKEN Elektroakustik BV8
• Sensitivity : 24.5 mV/Pa, ±1 dB
• THD at 1kHZ at 1Pa (Amplifier): < 0.3%
• Output Impedance: 200 Ω
• Maximum SPL (for 1% THD): 127 dB
• S/N Ratio: 85 dBA
• Self Noise (Amplifier): 9 dBA
• Dimensions: 240 mm L x 60 mm Dia
• Weight: 620 g

Telefunken U48

• Type: Vacuum Tube Condenser
• Polar Pattern: Cardioid, Figure-8
• Frequency Range: 20 Hz - 20 kHz, ±3 dB
• Power Source: External Power Supply
• Capsule: TELEFUNKEN Elektroakustik M7 - Center Terminated Large Diaphragm
• Tube: TELEFUNKEN Elektroakustik VF14K
• Transformer: TELEFUNKEN Elektroakustik BV8
• Sensitivity: 24.5 mV/Pa, ±1 dB
• THD at 1kHZ at 1Pa (Amplifier): < 0.3%
• Output Impedance: 200 Ω
• Maximum SPL (for 1% THD): 127 dB
• S/N Ratio: 85 dBA
• Self Noise (Amplifier): 9 dBA
• Dimensions: 240 mm L x 60 mm Dia
• Weight: 620 g
