TOA Ceiling Speaker PC-648R 6W (PC648R) *Crazy Sales Promotion*

Item ID: MB-PC-648R
RM80.00
RM47.00
Save 41%

or up to 3 interest-free payments of RM15.67 with debit / credit card More info

Availability: In Stock! Ready To Ship.

Estimated Shipping Fees - from as low as 0

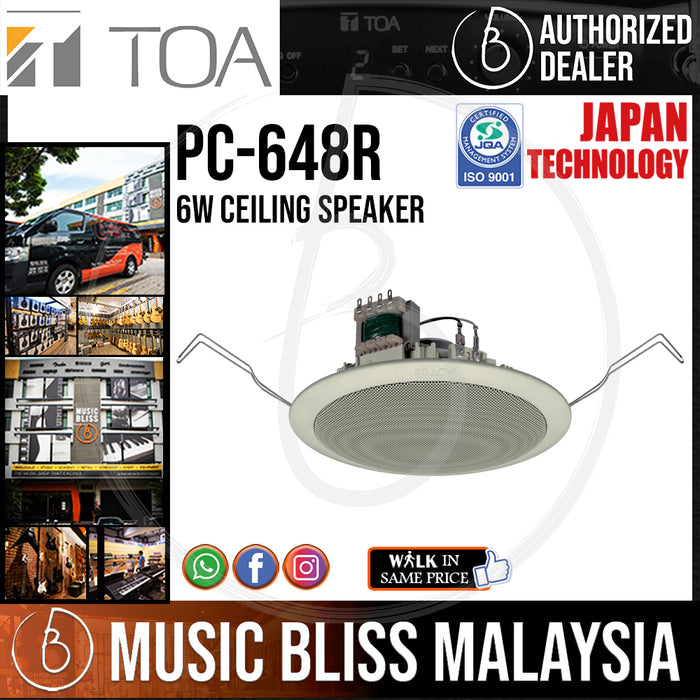

TOA Ceiling Speaker PC-648R 6W (PC648R)


Integrated with a resin panel and speaker frame, the PC-648R is the ceiling mount speaker with a metal attached. It features spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer.


SPECIFICATIONS
  • Rated Input : 6 W (100 V line), 3 W (70 V line)
  • Rated Impedance : 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
  • 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
  • Sensitivity : 90 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
  • Frequency Response : 100 Hz - 18 kHz (peak -20 dB)
  • Speaker Component : 12 cm (5") cone-type
  • Dimensions for Fixing Hole : Mounting hole: φ145±5 mm (φ5.71"±0.2")
  • Ceiling thickness: 5 - 25 mm (0.2" - 0.98")
  • Speaker Mounting Method : Spring clamp
  • Finish : Baffle: Polypropylene resin, white (RAL 9016 equivalent)
  • Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint
  • Dimensions : φ168 × 77 (D) mm (φ6.61" × 3.03")
  • Weight: 470 g (1.04 lb)

Dimension Packaging Weight : 1.0 kg
