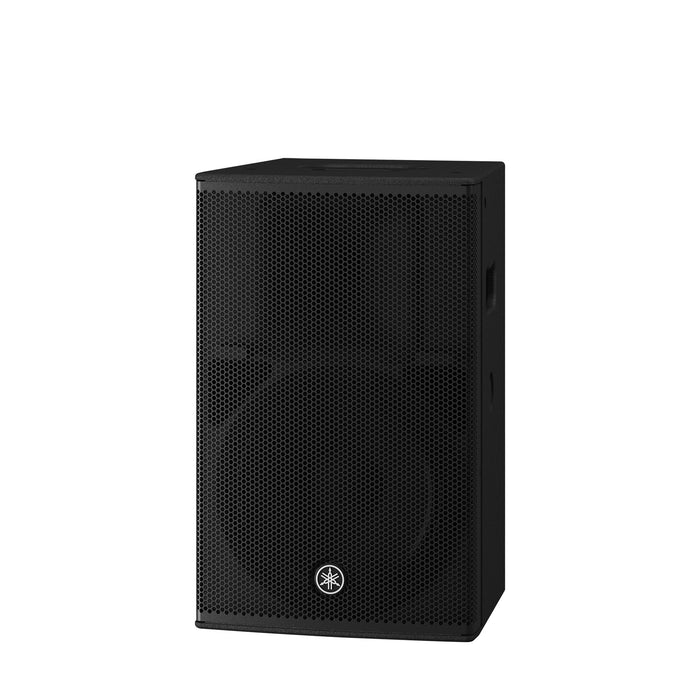

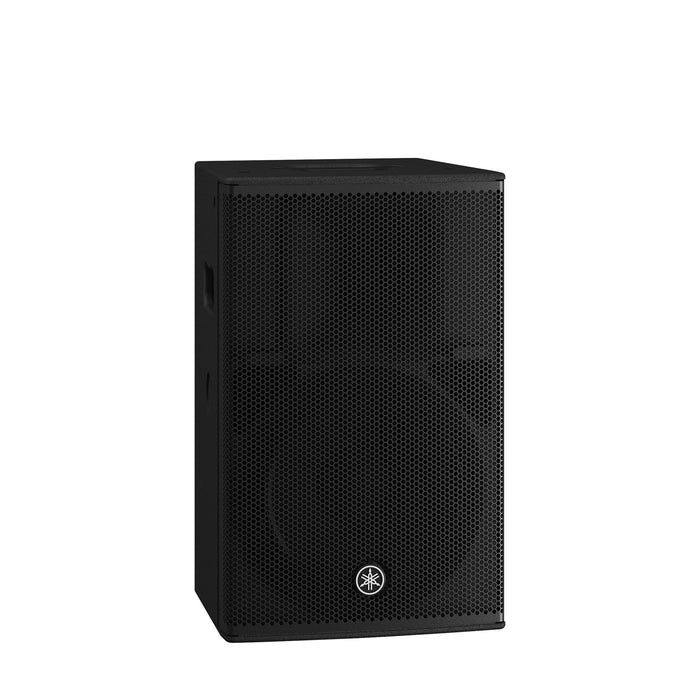

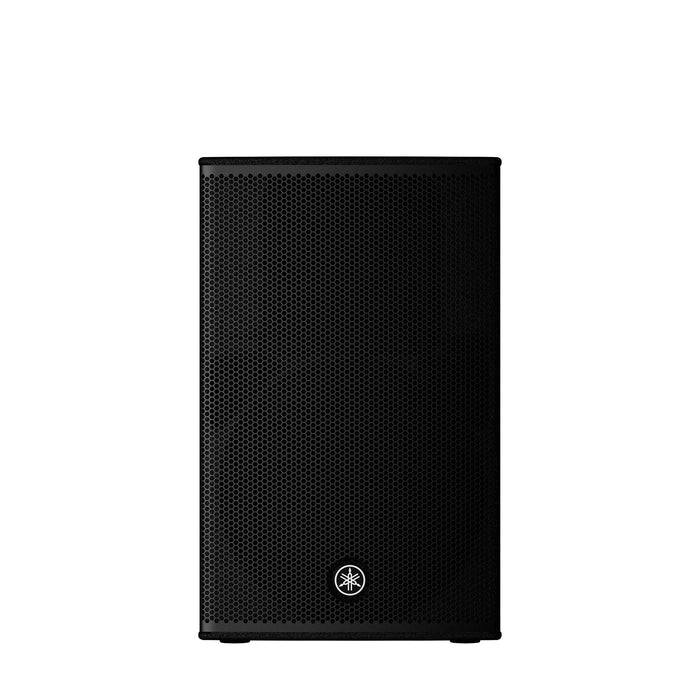

Yamaha CHR12 1000-Watt 12" Passive Speaker (CHR-12 / CHR 12)

Boasting 1,000 muscular watts of power handling, the Yamaha CHR12 offers crystal-clear reproduction with a thunderous maximum output of 124dB. This compact bi-amped loudspeaker houses a 12-inch woofer and a 1.4-inch high-frequency compression driver, yielding a wide-ranging 54Hz to 20kHz frequency response. The live sound experts here at Music Bliss appreciate the CHR12’s multiple rigging points, and thanks to this speaker’s dual pole sockets and rotatable horn, you’ll find that achieving optimal speaker positioning and room-filling coverage are a piece of cake. Finally, the CHR12 boasts robust SpeakON connectors and is housed in a hard-wearing polyurea-coated plywood enclosure.

FEATURES

• 1,000 muscular watts of power handling
• Crystal-clear reproduction with a thunderous maximum output of 124dB
• 12-inch woofer and a 1.4-inch high-frequency compression driver yield a 54Hz–20kHz frequency response
• Rotatable 90° x 60° horn ensures smooth, consistent coverage regardless of speaker orientation
• Multiple rigging points; 2 pole sockets allow either straight placement or a 7° downward tilt to certify optimal coverage
• Rugged SpeakON connectors and a hard-wearing polyurea-coated plywood enclosure

SPECIFICATIONS

• Powered:No
• Power Configuration:Bi-amped
• LF Driver Size:12" woofer
• HF Driver Size:1.4" compression driver
• Impedance:8 ohms
• Power Rating:500W Continuous
• Total Power:1000W Peak

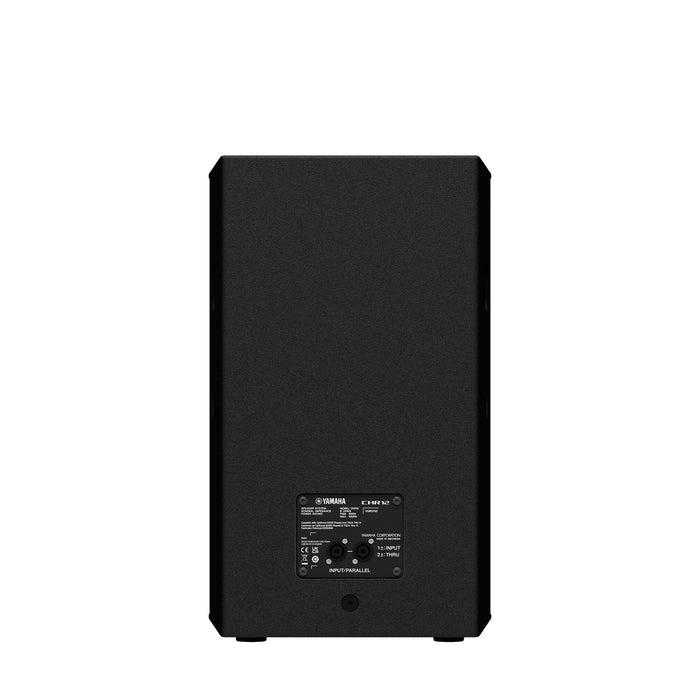

• Inputs:2 x SpeakON
• Frequency Range:54Hz-20kHz
• Maximum Peak SPL:124dB
• Horizontal Coverage Angle:90 Degrees
• Vertical Coverage Angle:60 Degrees
• Mounting Options:Pole, Floor
• Height:22.8"
• Width:14.1"
• Depth:13.4"
• Weight:37.7 lbs.
