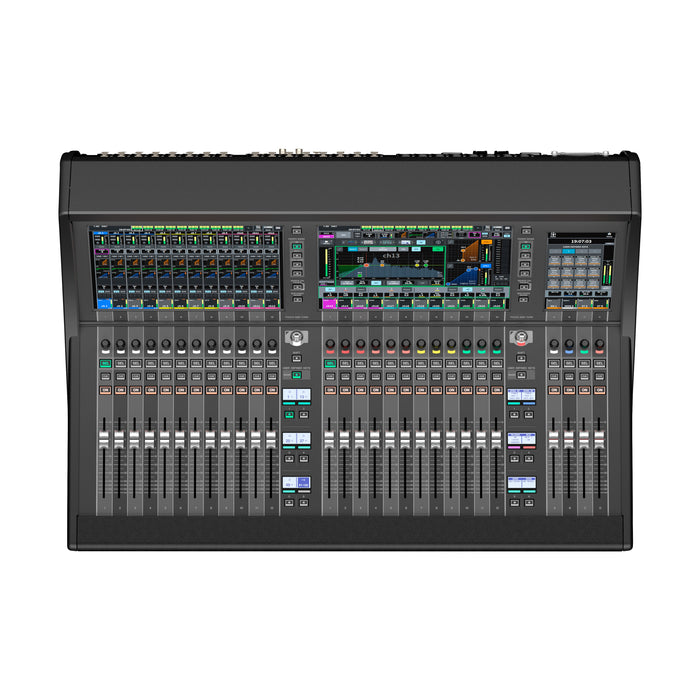

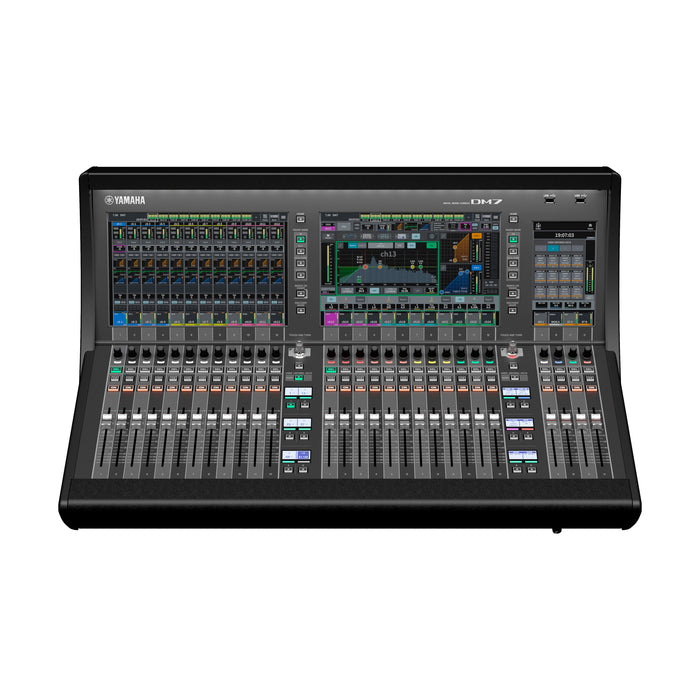

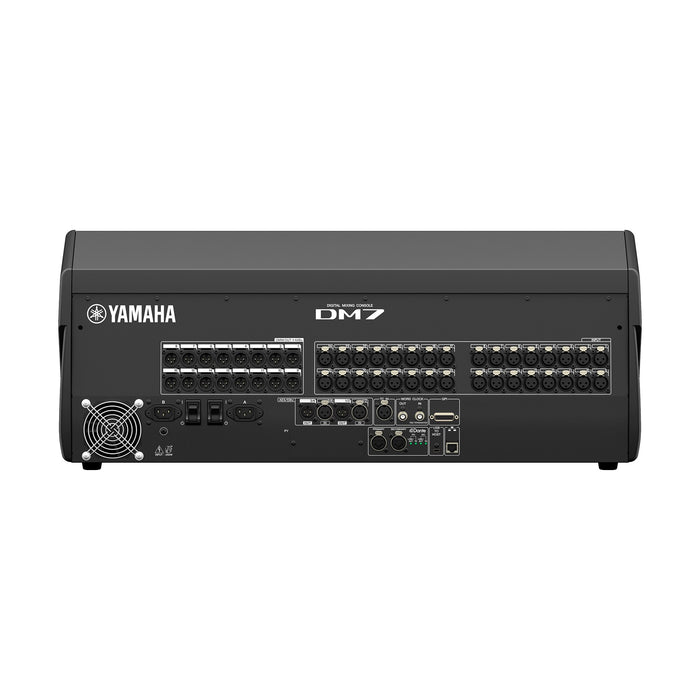

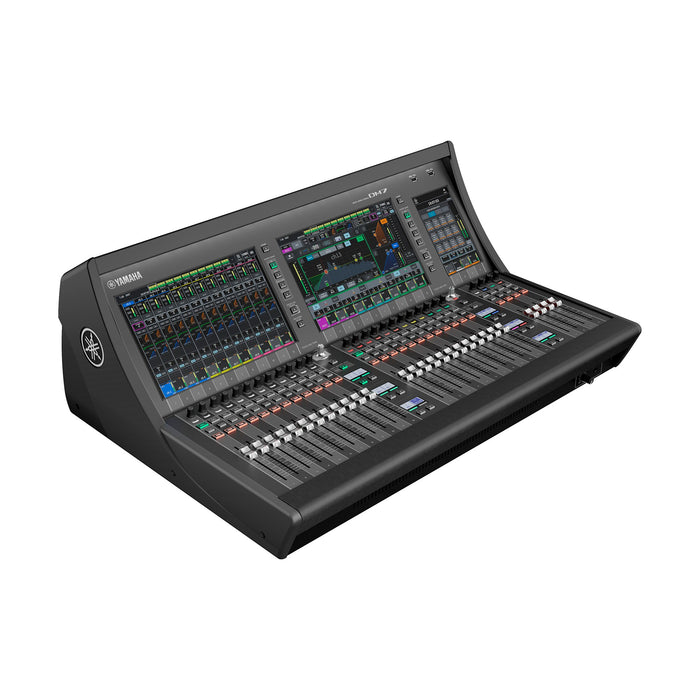

Yamaha DM7 120-channel Digital Mixer (DM-7)

Building upon the innovative features and industry-leading sound of Yamaha's Rivage PM series, the DM7 is a 120-channel, dual-bay digital mixer with an intuitive interface that adapts to your individual workflow. Navigating the DM7 is a piece of cake, thanks to its two 12-inch touchscreens, one 7-inch touchscreen, 28 motorized faders, and all-purpose touch-and-turn knobs. You get pristine 96kHz audio, deftly reinforced by 32 outstanding mic preamps and 16 analog outputs. Yamaha has long been renowned for digital effects, going way back to its '80s-era REV and SPX processors, and the DM7 reflects this storied heritage. You get an 18 x 18 audio interface that works with Yamaha's VST Rack along with a 144 x 144 Dante interface. The DM7 is also outfitted with a DAW remote function, an internal dual power supply, an ultra-efficient split mode, and cutting-edge AI assist functions. Want a feature-laden digital console for live sound, theater, broadcast, or corporate A/V? If so, the Yamaha DM7 is all aces, with amazing efficiency and crystal-clear sound to boot.

FEATURES

• Built upon the innovative features and industry-leading sound of Yamaha's Rivage PM series
• Packs 120 mixable channels into a dual-bay, 28-fader digital mixer
• 2 x 12-inch touchscreens, 1 x 7-inch touchscreen, and all-purpose touch-and-turn knobs provide easy operation and navigation
• Capable of sampling rates as high as 96kHz
• 48 mixes, 12 matrixes, 2 stereo buses, and 2 cue mixes
• 32 excellent-sounding mic preamps and 16 convenient analog outputs
• Excellent built-in DSP effects
• 64 assignable premium processing slots, 16 assignable Yamaha FX slots, and 4 assignable inserts per channel
• 144 x 144 Dante interface supplies loads of room for expansion
• 18 x 18 USB audio interface that works with Yamaha's VST Rack
• DAW remote mode with transport control
• AI assist features seamlessly adapt its functions to your preferences and workflow
• Split mode assists a single engineer performing more than one task
• Internal dual power supply

SPECIFICATIONS

• Type:Digital Mixer
• Channels:120
• Inputs - Mic Preamps:32 x XLR
• Phantom Power:32 Channels
• Outputs - Main:16 x XLR (main)
• Inputs - Digital:2 x XLR (AES/EBU), 2 x RJ-45 (Dante)
• Outputs - Digital:2 x XLR (AES/EBU)
• Busses/Groups:48 mixes, 12 matrixes, 2 stereo buses, and 2 cue mixes
• MIDI I/O:1 x 15-pin DIN (GPI)
• Data I/O:2 x Locking Ethernet (Dante network), 1 x RJ-45 (control)
• Headphones:1 x 1/4"
• USB:1 x Type C
• Computer Connectivity:USB (18 x 18), Ethernet
• I/O Expansion Slots:1 x Slots Available
• Word Clock:2 x BNC (in/out)
• Faders:28 x Motorized
• A/D Resolution:Up to 24-bit/96kHz
• Effects:Yes
• Signal Processing:64 Assignable Processing Slots, 16 Assignable FX Slots, 4 x Inserts per Channel
• Features:A.I. Mix Assistant
• Transport Controls:Yes
• DAW Control:Yes
• Screen:2 x 12" touchscreen, 7" touchscreen
• Software:DM7 Editor, DM7 StageMix, Console File Converter, MonitorMix, ProVisionaire Control/Touch
• Power Source:2 x Standard IEC AC Cable (redundant power supply)
• Height:12.75"
• Depth:22.2"
• Width:31.2"
• Weight:50.7 lbs.
