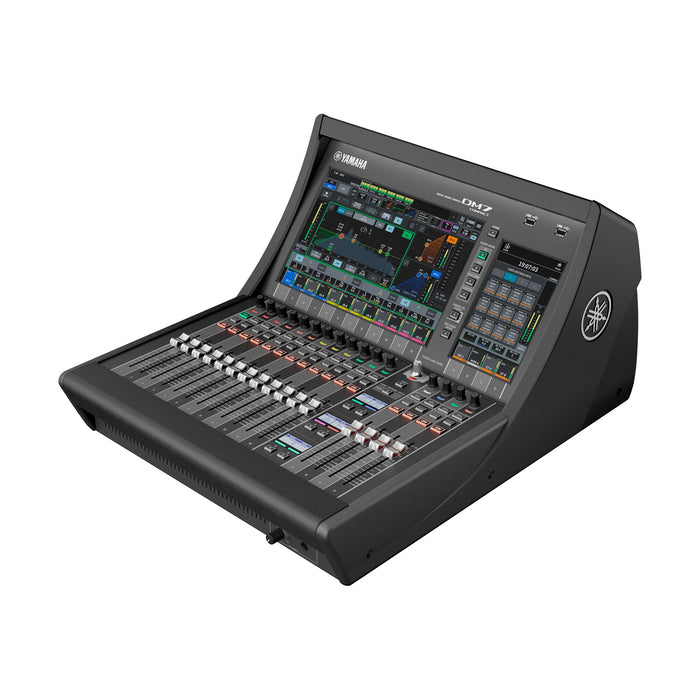

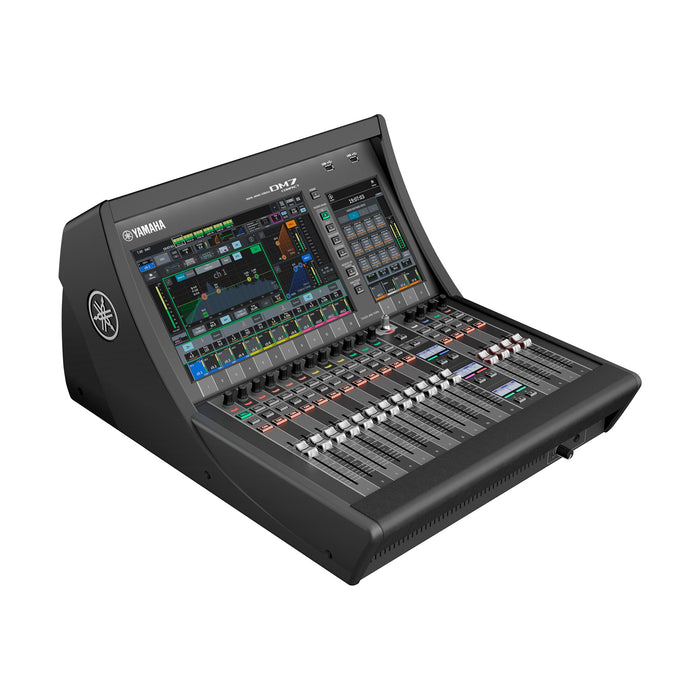

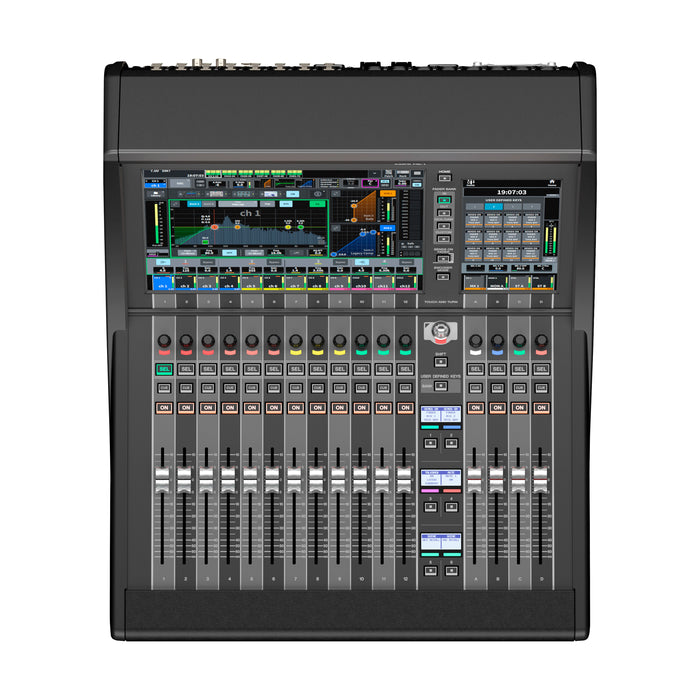

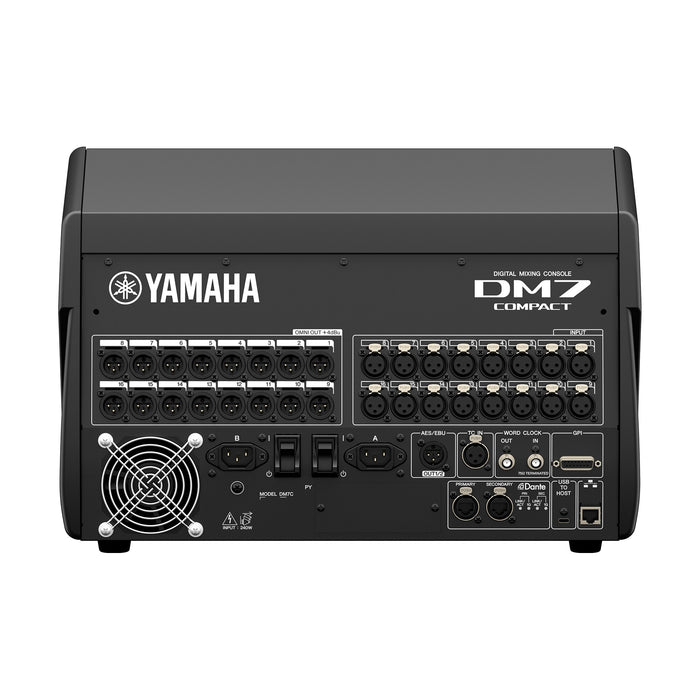

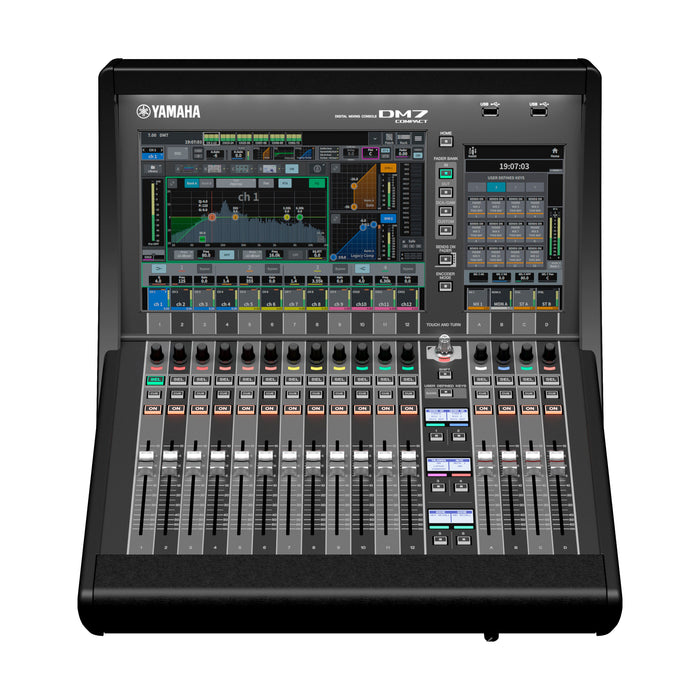

Yamaha DM7C 72-channel Digital Mixer

Building upon the innovative features and industry-leading sound of Yamaha's Rivage PM series, the DM7C is a 72-channel, single-bay digital mixer with an intuitive interface that adapts to your individual workflow. Navigating the DM7C is a piece of cake, thanks to its 12-inch and 7-inch touchscreens, 16 motorized faders, and all-purpose touch-and-turn knob. You get pristine 96kHz audio, deftly reinforced by 16 outstanding mic preamps and 16 analog outputs. Yamaha has long been renowned for digital effects, going way back to its '80s-era REV and SPX processors, and the DM7C reflects this storied heritage. You get an 18 x 18 audio interface that works with Yamaha's VST Rack along with a 144 x 144 Dante interface. The DM7C is also outfitted with a DAW remote function, an internal dual power supply, an ultra-efficient split mode, and cutting-edge AI assist functions. Want a feature-laden digital console for live sound, theater, broadcast, or corporate A/V? If so, the Yamaha DM7C is all aces, with amazing efficiency and crystal-clear sound to boot.

FEATURES

• Built upon the innovative features and industry-leading sound of Yamaha's Rivage PM series
• Packs 72 mixable channels into a single-bay, 16-fader digital mixer
• 12-inch and 7-inch touchscreens and all-purpose touch-and-turn knob provide easy operation and navigation
• Capable of sampling rates as high as 96kHz
• 48 mixes, 12 matrixes, 2 stereo buses, and 2 cue mixes
• 16 excellent-sounding mic preamps and 16 convenient analog outputs
• Excellent built-in DSP effects
• 64 assignable premium processing slots, 16 assignable Yamaha FX slots, and 4 assignable inserts per channel
• 144 x 144 Dante interface supplies loads of room for expansion
• 18 x 18 USB audio interface that works with Yamaha's VST Rack
• DAW remote mode with transport control
• AI assist features seamlessly adapt its functions to your preferences and workflow
• Split mode assists a single engineer performing more than one task
• Internal dual power supply

SPECIFICATIONS

• Type:Digital Mixer
• Channels:72
• Inputs - Mic Preamps:16 x XLR
• Phantom Power:16 Channels
• Outputs - Main:16 x XLR (main)
• Outputs - Other:1 x XLR (AES/EBU)
• Inputs - Digital:2 x RJ-45 (Dante)
• Outputs - Digital:1 x XLR (AES/EBU)
• Busses/Groups:48 mixes, 12 matrixes, 2 stereo buses, and 2 cue mixes
• MIDI I/O:1 x 15-pin DIN (GPI)
• Data I/O:2 x Locking Ethernet (Dante network), 1 x RJ-45 (control)
• Headphones:1 x 1/4"
• USB:1 x Type C
• Computer Connectivity:USB (18 x 18), Ethernet
• I/O Expansion Slots:1 x Slots Available
• Word Clock:2 x BNC (in/out)
• Faders:16 Motorized
• A/D Resolution:Up to 24-bit/96kHz
• Signal Processing:64 Assignable Processing Slots, 16 Assignable FX Slots, 4 x Inserts per Channel
• Features:A.I. Mix Assistant
• Transport Controls:Yes
• DAW Control:Yes
• Screen:12" touchscreen, 7" touchscreen
• Software:DM7 Editor, DM7 StageMix, Console File Converter, MonitorMix, ProVisionaire Control/Touch
• Power Source:2 x Standard IEC AC Cable (redundant power supply)
