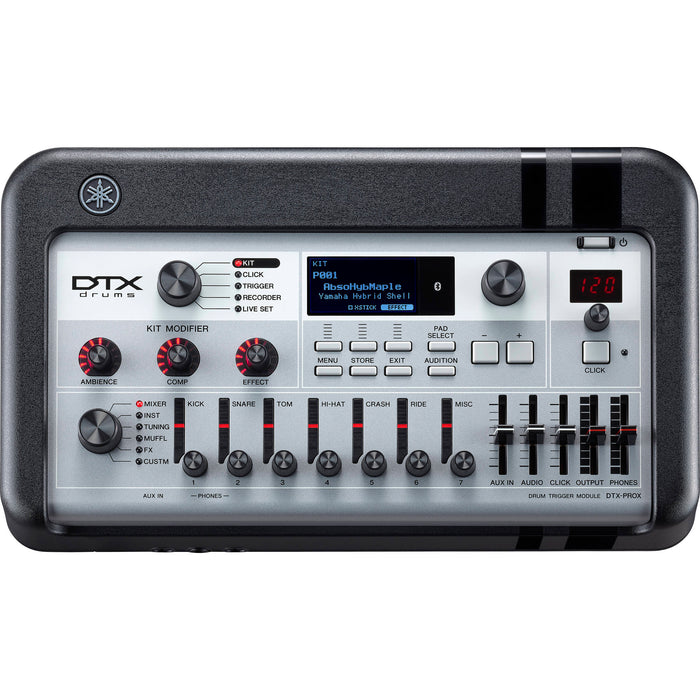

Yamaha DTX-PROX Electronic Drum Trigger Module (DTX PROX)

A new, flagship drum module that inspires creativity
The DTX-PROX is a new flagship drum module that allows any drummer to intuitively customize its high-quality sounds. Featuring real, sampled drum sounds and real-room ambience sampled in world-renowned studios, KIT MODIFIER knobs that allow you to easily and dramatically change sounds with a simple turn and LED rotary faders that allow you to intuitively change any settings, the DTX-PROX gives form to your inner drumming creativity.

FEATURES

• Faithfully reproduces real drum kit sounds and ambience recorded in world-renowned recording studios
• AMBIENCE, COMP and EFFECT KIT MODIFIER knobs that allow you to quickly create your own unique drum kit sounds
• LED rotary faders that allow you to change many settings intuitively, accurately and quickly
• A high-performance headphone amplifier circuit built especially for electronic drums for natural audio reproduction
• INDIVIDUAL OUT sockets that allow up to 8 individual channels of audio
• Rear AUX IN socket that can input monitor sound from a PA system as well as sounds from other musical instruments
• Front AUX IN socket optimized for connecting to music players such as smart devices
• Highly-flexible routing that allows output of clicks, USB Audio and AUX IN sounds to any outputs including headphones only
• USB Class Compliant compatibility, so it can be connected directly to a computer or smart device to send and receive audio data

SPECIFICATIONS

• Tone Generator
• Dimensions
• Width : 342 mm (13-7/16 in)
• Height : 196 mm ( 7-11/16 in)
• Depth : 66 mm (2-5/8 in)
• Weight : 2 kg (4 lbs, 7 oz)
• Maximum Polyphony : 256 notes
• Effects : For each Inst: EQ / Comp / Transient / Insertion (*1), For each Kit: Ambience / Effect 1 / Effect 2 and Master Comp / Master Effect, For overall: Master EQ / Phones EQ (*1) Insertion effects can be used only for specific Inst.
• Drum Kits : Preset: 70 Kits, User: 200 Kits
• Voices : 733
• Click
• Click Sets : 30
• Tempo : 30 to 300 BPM, Tap Tempo supported; Voice guide
• Time Signatures : 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16
• Subdivisions : Accents, quarter notes, eighth notes, sixteenth notes and eight-note triplets
• Others : Individual click volume control, WAV import, timer
• Training
• Types : 10
• Songs : Preset: 37 songs, User: 1 song
• Audio Files
• Import Limit : 1,000 files
• Maximum Loadable Sample Time : 50 minutes, 40 seconds (44.1 kHz, 16 bit, mono), 25 minutes, 20 seconds (44.1 kHz, 16 bit, stereo)
• Sample Format : WAV
• Recorder
• Recording Time
• Internal Memory : Maximum of 90 seconds
• USB Flash Drive : Maximum of 90 minutes per file
• Format : Record/playback: WAV (44.1 kHz, 16 bit, stereo)
• Other
• Connectors
• DC IN : DC IN (+12V)
• Headphones : Headphones (standard stereo phone jack ×1, stereo mini jack ×1)
• AUX IN : AUX IN (stereo mini jack ×1, stereo standard phone jack ×1)
• Output : OUTPUT L/MONO, R (standard phone jack, one for each), INDIVIDUAL OUTPUT 1/2, 3/4, 5/6, 7/8 (stereo standard phone jack, one for each)
• USB : USB TO DEVICE, USB TO HOST
• MIDI : MIDI OUT ×1, MIDI IN ×1
• Trigger Input : Trigger input jack ×10 (standard stereo phone jack, not including the HI-HAT CONTROL jack. 1, 14 for all types of pads: 2, 4, 6 for 2-zone; 8, 9, 10 for 3-zone; 11 dedicated for hi-hat pad/controller; 12 for kick, 2-zone) *If other pad is connected to each of the above terminals, it will operate as a 1-zone pad. *Maximum of 14 pads can be connected (when Y-cable is used)
• Bluetooth : Audio (varies by country)
• Display : Full Dot LCD (128×64 dot)
