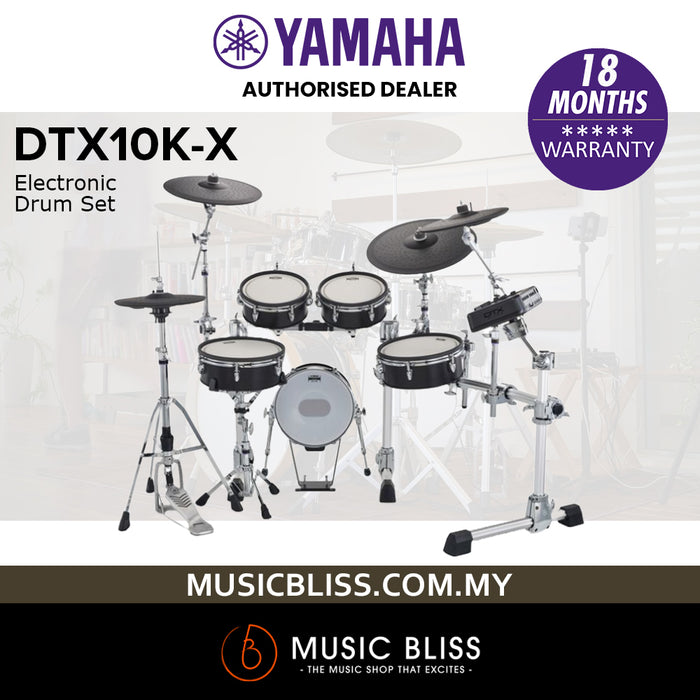

Yamaha DTX10K-X Electronic Drum Set - Black Forest (DTX10 / DTX10K / DTX10KX)

PROMOTION

*Throne and Kick Pedal Not Included.

FEATURES

• Faithfully reproduces real drum sounds and real-room ambience recorded in world renowned studios
• AMBIENCE, COMP, and EFFECT Kit Modifier knobs that allow you to create your own unique sounds
• LED rotary faders that allow you to change many settings intuitively, accurately and quickly
• Yamaha's original TCS heads are used for snare and toms, achieving a comfortable, natural feel and rebound that makes you want to keep playing
• Beautiful wood shells that are built and finished at Yamaha acoustic drum factories
• Snare pad and ride cymbal are equipped with a hit point detection function
• Individual Outputs, AUX inputs suitable for PA monitor return, USB port that can send and receive audio data directly to and from computers and smart devices
• Professional Yamaha system hardware used for hardware and racks

SPECIFICATIONS

• Pad sets
• Snare : XP125SD-X (12 inch TCS pad with 2 zone)
• Tom Pad : XP105T-X (10 inch TCS pad with 2 zone)
• Floor Tom Pad : XP125T-X (12 inch TCS pad with 2 zone)
• Kick Pad : KP128 (12 inch Mesh pad with Multi layer cushion)
• Hi-hat Pad : RHH135 (13 inch pad with 2 zone)
• Crash cymbal 1 : PCY135 (13 inch pad with 3 zone)
• Crash cymbal 2 : PCY155 (15 inch pad with 3 zone)
• Ride cymbal : PCY175 (17 inch pad with 3 zone)
• Hi-hat Stand : HS740A
• Footprint (average) : 1,100 mm x 1,600 mm
• Weight ; 46.77 kg
• Pad Sets
• Snare Stand : SS662 (Snare Stand for 12")
• Tone generator
• Dimensions
• Width : 342 mm (13-7/16 in)
• Height : 196 mm (7-11/16 in)
• Depth : 66 mm (2-5/8 in)
• Weight : 2.0 kg (4 lb 7 oz)
• Maximum Polyphony : 256 notes
• Effects : For each Inst: EQ / Comp / Transient / Insertion (*1), For each Kit: Ambience / Effect 1 / Effect 2 and Master Comp / Master Effect, For overall: Master EQ / Phones EQ (*1) Insertion effects can be used only for specific Inst.
• Drum kits : Preset: 70 Kits, User: 200 Kits
• Voices : 733
• Click
• Click Sets : 30
• Tempo : 30 to 300 BPM, Tap Tempo supported. Voice guide
• Time signatures : 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16
• Subdivisions : Accents, quarter notes, eighth notes, sixteenth notes, and eight-note triplets
• Others : Individual click volume control, wav import, timer
• Training
• Types : 10
• Songs : Preset: 37 songs, User: 1 song
• Audio Files
• Import limit : 1,000 files
• Maximum loadable sample time : 50 minutes 40 seconds (44.1 kHz, 16 bit, mono), 25 minutes 20 seconds (44.1 kHz, 16 bit, stereo)
• sample format : WAV
• Recorder
• Recording time
• Internal memory : Maximum of 90 seconds
• USB flash drive: Maximum of 90 minutes per file
• Format : Record/playback: WAV (44.1 kHz, 16 bit, stereo)
• Other
• Connectors
• DC IN : DC IN (+12V)
• Headphones : Headphones (standard stereo phone jack ×1, stereo mini jack ×1)
• AUX IN: AUX IN (stereo mini jack ×1, stereo standard phone jack ×1)
• Output : OUTPUT L/MONO, R (standard phone jack, one for each), INDIVIDUAL OUTPUT 1/2, 3/4, 5/6, 7/8 (stereo standard phone jack, one for each)
• USB : USB TO DEVICE, USB TO HOST
• MIDI : MIDI OUT ×1, MIDI IN ×1
• Trigger Input : Trigger input jack ×10 (standard stereo phone jack, not including the HI-HAT CONTROL jack. 1, 14 for All type of pad, 2, 4, 6 for 2zone, 8, 9, 10 for 3zone, 11 dedicated for hi-hat pad/controllar, 12 for kick, 2zone) *If other pad is connected to each of the above terminals, it will operate as a 1-zone pad. *Maximum 14 of pads to be connected (when Y-cable is used)
• Bluetooth : Audio (varies by country)
• Display : Full Dot LCD (128×64 dot)
