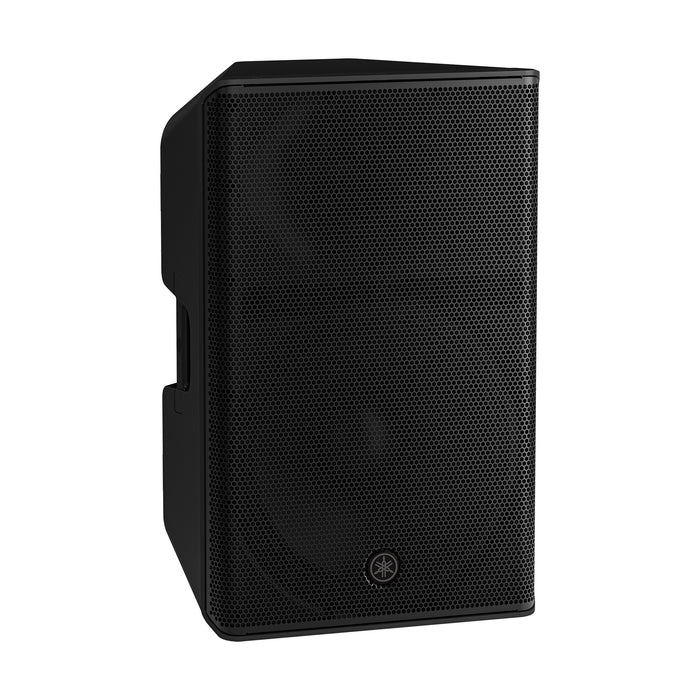

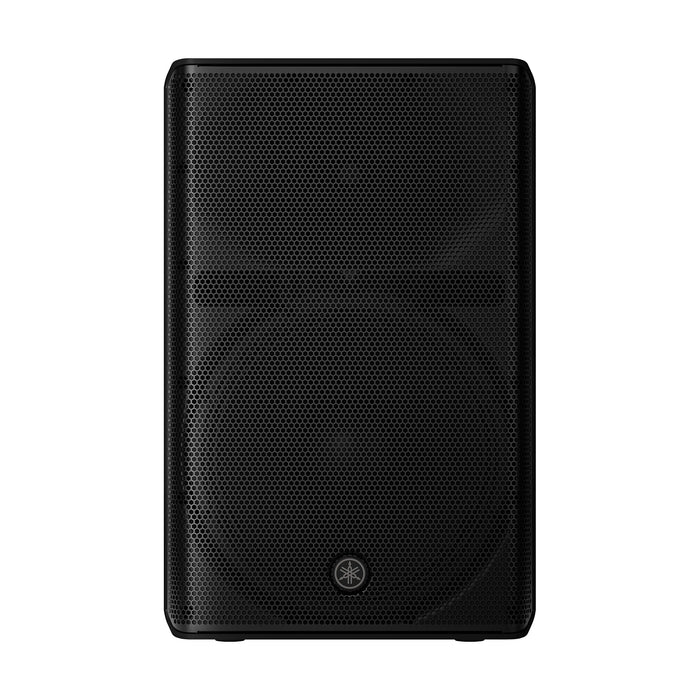

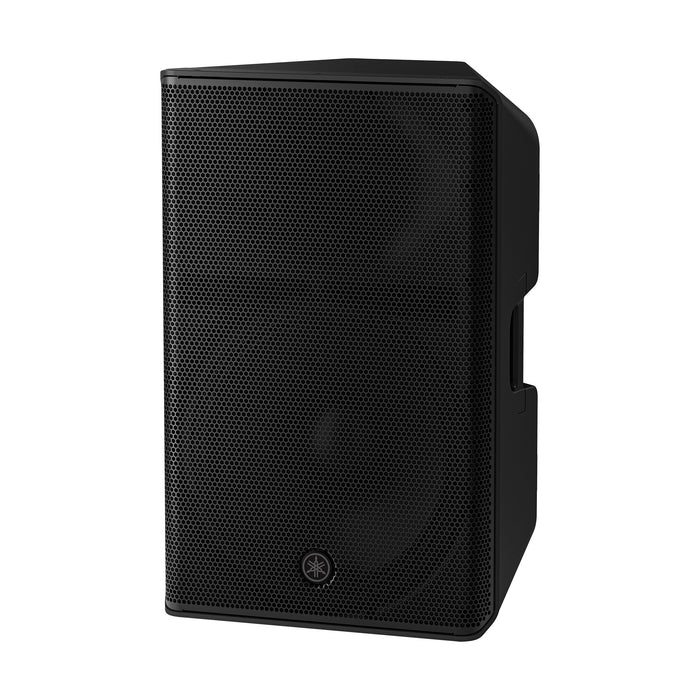

Yamaha DXR15 MK3 15" 2000-watt Active Loudspeaker

The DXR15 mk3 is a 2-way, bi-amped, powered loudspeaker that delivers the lowest frequency range in the new lineup with exceptional clarity, precision, and a powerful 134 dB SPL. Combining deep bottom end and substantial power, it is ideal as a main front-of-house speaker for DJ events or live performances that demand a strong low frequency presence. Advanced DSP capabilities and a dedicated remote app add significantly more flexibility with powerful features that enhance the overall user experience.

FEATURES

• 15" LF + 1.75" HF proprietary high-durability speaker units

• The large-diameter horn secures directivity control across a wide frequency range

• Optimized port positioning reduces standing wave effects

• Lightweight, high-performance, form-injection molded enclosure with a symmetrical, functional design

• Newly developed 2000W Class-D amplifier

• FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

• Drive Motion Calibration™ corrects the motion of the LF unit, producing a more linear low-frequency sound with high reliability

• DSP modes tailored for specific arrangements or applications. In particular, FOH/MAIN and MONITOR modes have an automatic setting function "AUTO V/H POSITION"

• Can be controlled remotely via an iOS or Android device using the dedicated D-Remote app

• Compatible with audio streaming via Bluetooth®

• Intelligent feedback suppressor automatically eliminates unpleasant feedback

• Optional UB-DXR15A U-bracket allows both for vertical or horizontal use

• Optional SPCVR-DXR153 speaker cover protects speakers from rigors of equipment transport, lengthy storage, or outdoor performances

• Rigging points for use with eye bolts

• Dual-angle pole sockets offer both 0° or a -7° down tilt

SPECIFICATIONS

• Speaker type : 2-way, Bi-amped Powered Speaker, Bass-reflex

• Frequency range (-10dB) : 46 Hz - 20 kHz

• Coverage are : H90ﾟ x V60ﾟ

• Crossover : 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)

• Maximum Output Level : 134 dB SPL

• Components : LF : 15" cone, Voice Coil: 3"

• Components : HF : Diaphragm: 1.75", Type: 1" throat compression driver

• Amplifier class    : Class-D

• Power rating : PEAK : 2000 W (LF:1700 W, HF:300 W) *1

• Power rating : RMS : 1000 W (LF:850 W, HF:150 W) *2

• Cooling    Fan Cooling, 5 Speeds

• Power requirements : 100 V - 240 V 50/60 Hz

• A/D D/A Converters : 32 bit/96 kHz Sampling

• Processors: HPF: OFF, 50 Hz - 118 Hz, 12 dB - 48 dB/Oct.; DSP-MODE: FOH/MAIN, MONITOR, DJ, LIVE MUSIC, SPEECH, OF

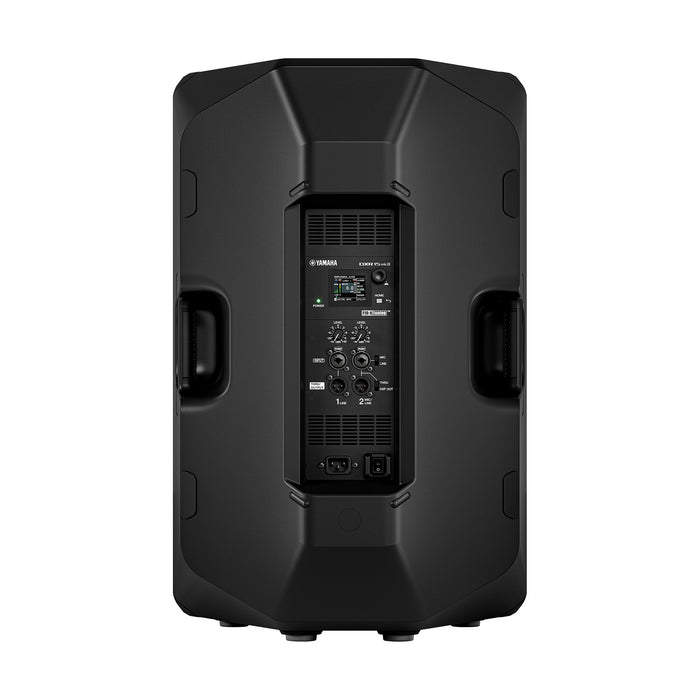

• I/O connectors : Analog Input : INPUT1: Combo x1, Impedance 20 kΩ (balance) 10 kΩ (unbalance), Maximum Input Level +24 dBu; INPUT2: Combo x 1, Impedance 6 kΩ (balance) 3 kΩ (unbalance), Maximum Input Level +24 dBu (Line) -6 dBu (Mic)

• I/O connectors : Analog Output : OUTPUT1: XLR3-32 THRU; OUTPUT2: XLR3-32 THRU or DSP OUT

• I/O connectors : Bluetooth : Ver.5.0, A2DP (SBC, AAC), Class 1 *3

• Cabinet material : Plastic (PP)

• Finish : Black

• Handle : Top x1

• Pole socket : Φ35 mm x2 (Bottom, 0° or -7°)

• Rigging : Top x 2, Rear x 1 (Fit for M8 x 15 mm Eyebolts), Bottom x2, Side x 2 (Fit for
• M8 x 25 mm UB-DXRDHR10A)

• Net weight : 21.0 kg (46.3 lbs)
