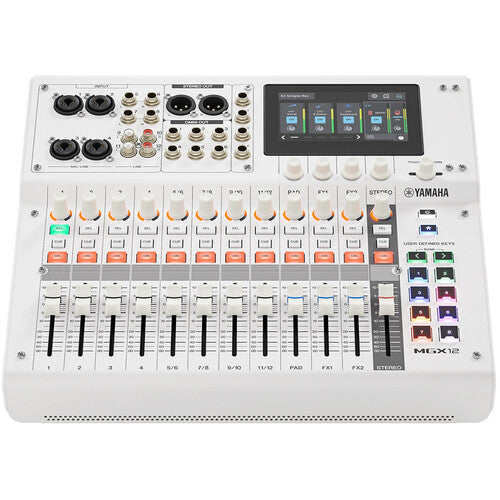

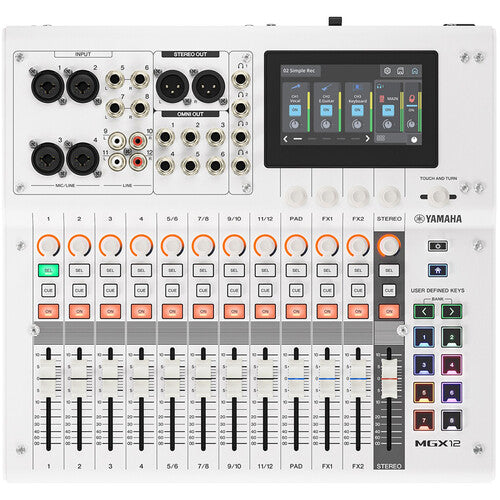

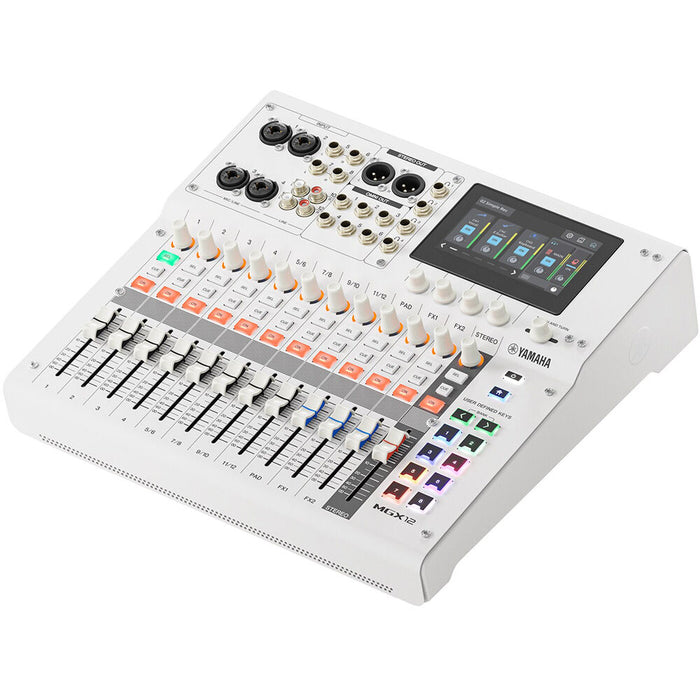

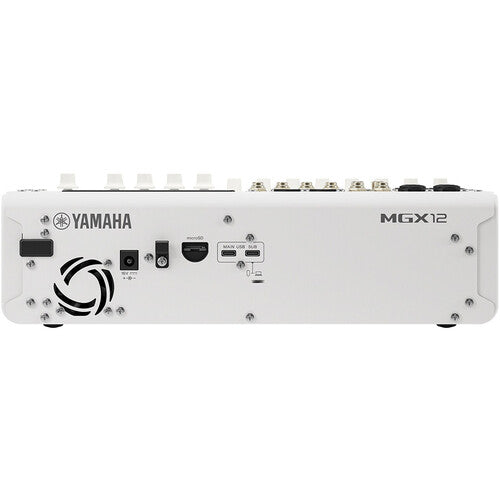

Yamaha MGX12 18-Channel Digital Mixing Console - White

Continuing the legacy of the industry-leading MG series, the Yamaha MGX12 melds studio-quality sound with flexible routing and intuitive operation. Despite its robust features, navigating this digital mixer is incredibly straightforward, thanks to 12 non-motorized faders, a vivid 4.3-inch touchscreen, and five control knobs. You get ample local I/O, including four premium-quality MGX mic preamps on Mic/Line combo inputs, bolstered by 12 extremely flexible mixing channels. Additionally, the MGX12 features a 18-in, 18-out USB audio interface, a Bluetooth audio input, and onboard 16-track recording to a microSD card. You’ll appreciate the MGX12’s refined DSP, which provides you with pristine digital effects and latency-free monitoring. You also get a useful arsenal of assistive features, comprising Auto Gain, Clip Safe, Simple/Standard mode, and Scene Recall. Complete with a practical cache of Steinberg production software, the MGX12 is guaranteed to captivate.

FEATURES

• A 12-input digital mixer melding studio-quality sound with flexible routing and intuitive operation

• 12 non-motorized faders, a vivid 4.3-in. touchscreen, and 5 control knobs offer straightforward operation

• 4 premium-quality MGX mic preamps on Mic/Line combo inputs

• 4 Headphone outputs yield robust monitoring capabilities

• 12 mix inputs with mono and stereo channels, a dedicated Sound Pad, 2 FX channels, and robust Mix, FX, Cue, and Stereo buses

• 18-in/18-out USB audio interface, plus 2‑track recording and playback on the Sub port

• Bluetooth audio input enables smooth wireless audio integration for performances, streaming, and studio sessions

• 8 customizable pads allow you to trigger sound FX or user‑defined functions in real time
• Onboard 16-track recording to a microSD card with 2-ch. playback
• Refined DSP provides you pristine digital FX and latency-free monitoring
• Useful assistive features, comprising Auto Gain, Clip Safe, Simple/Standard mode, and Scene Recall

SPECIFICATIONS

• Type : Digital Mixer

• Channels : 12

• Inputs - Mic Preamps : 4

• Inputs - Line : 4 x XLR-1/4" Combo, 4 x 1/4"

• Inputs - Other : 2 x Dual RCA Stereo

• Outputs - Main : 2 x XLR

• Outputs - Direct : 6 x 1/4" TRS

• Headphones : 4 x 1/4" TRS

• USB : 2 x USB-C

• Faders : 12

• Screen : 4.3" touchscreen

• Storage : microSD card slot

• Software : Cubase Al, WaveLab Cast LE, Basic FX Suite, and Steinberg Plus software bundle

• Power Source : 16V DC Power Supply
